Electrical/Exhaust/Heater/Fuel/Fuel Pipe (1) for 2004 Honda CIVIC COUPE

Select Fuel Pipe (1) Part

2004 Honda CIVIC COUPE

Change vehicle

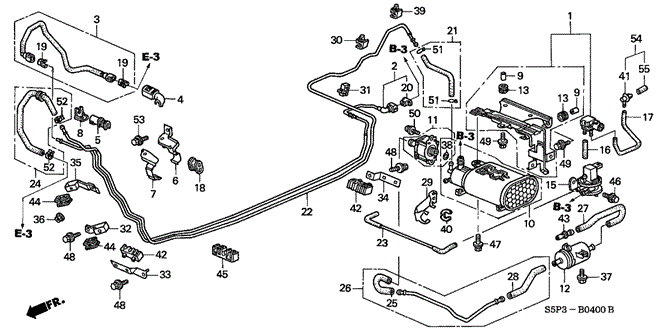

Electrical/Exhaust/Heater/Fuel/Fuel Pipe (1) for 2004 Honda CIVIC COUPE #1
No. Part # Part # / Description List Price Price
1 04101-PLM-A00 04101-PLM-A00 / Sensor Assembly, Vent Pressure

SENSOR ASSY., VENT PRESSURE

$236.37 $167.35
2 16040-S5A-A30 16040-S5A-A30 / Feed Set, Fuel

$118.40 $85.25
3 16722-PLC-003 16722-PLC-003 / Hose, Fuel Feed

$47.40 $35.55
4 16725-PLC-003 16725-PLC-003 / Clamp A, Fuel Hose (Black)

$2.73 $2.30
5 16726-PLC-003 16726-PLC-003 / Clamp B, Fuel Hose

$2.22 $1.86
6 16727-PLR-A00 16727-PLR-A00 / Stay, Fuel Pipe

$2.60 $2.18
7 16728-PLC-000 16728-PLC-000 / Stay, Fuel Hose Clamp

$1.58 $1.33
8 16729-PLC-003 16729-PLC-003 / Clamp C, Fuel Hose

$2.73 $2.30
9 16923-S84-A00 16923-S84-A00 / Collar, Distance

$0.85 $0.71
10 17011-S5A-A30 17011-S5A-A30 / Canister Assembly

CANISTER ASSY.

$142.08 $102.30
11 17310-S5A-L31 17310-S5A-L31 / Valve, Canister Vent Shut

$67.25 $49.23
12 17315-S5A-A32 17315-S5A-A32 / Filter, Canister

$35.77 $26.83
13 17322-S84-A00 17322-S84-A00 / Rubber, Canister Mounting

$3.42 $2.87
15 17380-S5A-A32 17380-S5A-A32 / Module, Fuel Vent

$91.77 $66.07
16 17381-S5A-A30 17381-S5A-A30 / Tube A, Pressure Sensor

$25.63 $19.69
17 17382-S5A-A30 17382-S5A-A30 / Tube B, Pressure Sensor

$25.63 $19.69
18 17701-S5A-930 17701-S5A-930 / Rubber, Fuel Pipe Insulator

$1.45 $1.22
19 17711-S0X-A31 17711-S0X-A31 / Retainer (Green) (Tokai)

$2.80 $2.35
20 17711-S84-004 17711-S84-004 / Retainer (White) (Sanoh)

$4.38 $3.68
21 17717-S5A-A31 17717-S5A-A31 / Tube A, Fuel Purge

$6.58 $5.53
22 17720-S5A-A30 17720-S5A-A30 / Pipe, Fuel Purge

$149.58 $107.70
23 17724-S5A-A31 17724-S5A-A31 / Tube C, Fuel Vent

$12.70 $10.06
24 17726-S5A-931 17726-S5A-931 / Hose Assembly, Purge

HOSE ASSY., PURGE

$15.25 $12.08
25 17741-S5A-A31 17741-S5A-A31 / Tube A, Canister Drain

$4.67 $3.92
26 17742-S5A-A32 17742-S5A-A32 / Tube, Canister Drain

$28.53 $21.91
27 17743-S5A-A30 17743-S5A-A30 / Tube, Canister Filter

$29.87 $22.94
28 17745-S5A-A31 17745-S5A-A31 / Tube B, Canister Drain

$5.72 $4.80
29 17746-S5A-A30 17746-S5A-A30 / Stay, Drain Tube

$4.57 $3.84
30 17758-S5A-931 17758-S5A-931 / Clip, Fuel Pipe

$1.20 $1.01
31 17759-S5A-931 17759-S5A-931 / Clip B, Fuel Pipe

$1.90 $1.60
32 17762-S5A-930 17762-S5A-930 / Stay B, Fuel Pipe

$3.08 $2.59
33 17763-S5A-930 17763-S5A-930 / Stay C, Fuel Pipe

$4.02 $3.37
34 17764-S5A-930 17764-S5A-930 / Stay D, Fuel Pipe

$3.08 $2.59
35 17765-S5A-930 17765-S5A-930 / Stay E, Fuel Pipe

$5.13 $4.31
36 90361-S7S-003 90361-S7S-003 / Nut, Paint Cutting (6MM)

$2.02 $1.69
37 90671-S5A-003 90671-S5A-003 / Bolt, Front Fender

BOLT, FR. FENDER

$4.02 $3.37
38 91391-S84-A00 91391-S84-A00 / O-Ring

$4.78 $4.02
39 91592-S5A-931 91592-S5A-931 / Clip, Fuel Pipe

$1.60 $1.34
40 91593-ST7-931 91593-ST7-931 / Clip, Fuel Hose

$5.00 $4.20
42 91595-S5A-931 91595-S5A-931 / Clamp A, Fuel Pipe

$9.27 $7.34
43 91596-S5A-931 91596-S5A-931 / Joint, Drain Tube

$1.20 $1.01
44 91598-S5A-930 91598-S5A-930 / Rubber, Fuel Pipe Insulator

$4.57 $3.84
45 91599-S5A-931 91599-S5A-931 / Clamp B, Fuel Pipe

$13.20 $10.45
46 93403-06020-08 93403-06020-08 / Bolt-Washer (6X20)

$1.22 $1.02
47 93403-08020-08 93403-08020-08 / Bolt-Washer (8X20)

$1.37 $1.15
48 93405-06016-04 93405-06016-04 / Bolt-Washer (6X16)

$1.22 $1.02
49 93405-06025-08 93405-06025-08 / Bolt-Washer (6X25)

$1.22 $1.02
50 93893-05010-08 93893-05010-08 / Screw-Washer (5X10)

$0.88 $0.74
51 91401-SDC-000 91401-SDC-000 / Clip, Tube (B10)

$1.48 $1.25
52 91405-SDA-000 91405-SDA-000 / Clamp, Tube (D10.5)

$6.78 $5.70
53 95701-06012-08 95701-06012-08 / Bolt, Flange (6X12)

$1.18 $0.99
54 91594-S5A-A32 91594-S5A-A32 / Joint, Pressure Sensor

$12.20 $9.66
55 90634-PA0-000 90634-PA0-000 / Cap, Sealing

$3.53 $2.97
