Transmission - Automatic/AT Servo Body for 1991 Honda CIVIC 5-DOOR

Select AT Servo Body Part

1991 Honda CIVIC 5-DOOR

Change vehicle

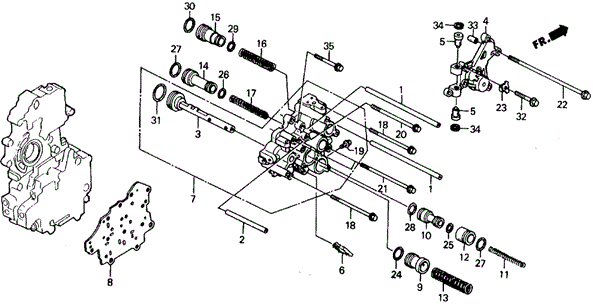

Transmission - Automatic/AT Servo Body for 1991 Honda CIVIC 5-DOOR #1
No. Part # Part # / Description List Price Price
1 22744-PG4-000 22744-PG4-000 / Pipe, Top Clutch

$15.08 $11.95
2 22748-PS5-900 22748-PS5-900 / Pipe (8X71)

$2.70 $2.27
4 24278-PS5-900 24278-PS5-900 / Base, Servo Detent

$18.90 $14.52
5 24530-PN1-000 24530-PN1-000 / Sleeve, Servo Detent

$8.80 $6.97
6 25422-PN6-801 25422-PN6-801 / Magnet, Transmission

$9.22 $7.30
7 27405-PS5-901 27405-PS5-901 / Body Sub-Assembly, Servo

BODY SUB-ASSY., SERVO

$270.52 $191.53
8 27412-PS5-900 27412-PS5-900 / Plate, Servo Separating

$18.77 $14.41
9 27561-PF0-000 27561-PF0-000 / Piston, Low Accumulator (L 25.9)

- -
10 27561-PS5-000 27561-PS5-000 / Piston, Low Accumulator

$15.73 $12.46
11 27562-PS5-003 27562-PS5-003 / Spring, Low Accumulator

$5.10 $4.28
12 27563-PS5-000 27563-PS5-000 / Collar, Low Accumulator

$11.27 $8.92
13 27564-PS5-000 27564-PS5-000 / Spring B, Low Accumulator

$8.95 $7.09
14 27574-PL4-000 27574-PL4-000 / Piston, Third Accumulator

$17.80 $13.67
15 27576-PN6-800 27576-PN6-800 / Piston, Top Accumulator

$17.33 $13.31
16 27577-PL4-000 27577-PL4-000 / Spring, Top Accumulator

$8.65 $6.85
17 27583-PS5-900 27583-PS5-900 / Spring, Third Accumulator

$7.27 $6.10
18 90004-PC9-000 90004-PC9-000 / Bolt, Flange (6X90)

$6.15 $5.17
19 96001-06014-00 96001-06014-00 / Bolt, Flange (6X14)

$1.17 $0.98
20 90011-PF0-000 90011-PF0-000 / Bolt, Flange (6X108)

- -
21 90017-PF4-000 90017-PF4-000 / Bolt, Flange (6X127)

$5.67 $4.76
22 90019-PF4-000 90019-PF4-000 / Bolt, Flange (6X152)

$6.52 $5.47
23 90433-639-000 90433-639-000 / Washer, Lock (6MM)

$3.17 $2.66
24 91302-PF0-003 91302-PF0-003 / O-Ring (26.9X2.4) (Nok)

$2.28 $1.92
25 91304-PS5-003 91304-PS5-003 / O-Ring (17.3X2.4)

$2.43 $2.04
26 91321-PF4-004 91321-PF4-004 / O-Ring (18.3X2.4) (Nok)

$2.27 $1.90
27 91324-PF4-004 91324-PF4-004 / O-Ring (28.3X2.4) (Nok)

$2.60 $2.18
28 91326-PF4-004 91326-PF4-004 / O-Ring (24.4X2.4) (Nok)

$2.60 $2.18
29 91331-PC9-003 91331-PC9-003 / O-Ring (21.2X2.4) (Arai)

$2.42 $2.03
30 91344-PC9-004 91344-PC9-004 / O-Ring (29X2.4) (Nok)

$2.78 $2.34
31 91344-580-000 91344-580-000 / O-Ring (31X2.7) (Arai)

$2.95 $2.48
32 93301-06030-0H 93301-06030-0H / Bolt, Hex (6X30)

BOLT, HEX. (6X30)

$0.88 $0.74
33 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.28 $1.08
34 94521-15000 94521-15000 / Circlip (Inner) (15MM)

$0.72 $0.60
35 95701-06055-08 95701-06055-08 / Bolt, Flange (6X55)

$1.45 $1.22
