Transmission - Automatic/AT Sub Shaft 4WD for 1990 Honda CIVIC 5-DOOR

Select AT Sub Shaft 4WD Part

1990 Honda CIVIC 5-DOOR

Change vehicle

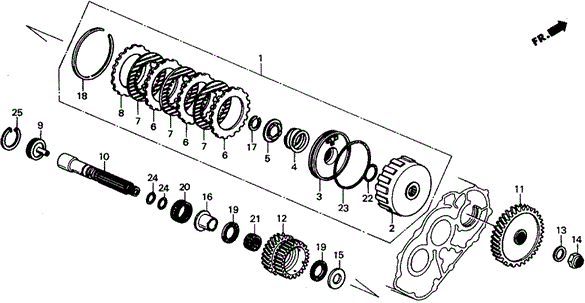

Transmission - Automatic/AT Sub Shaft 4WD for 1990 Honda CIVIC 5-DOOR #1
No. Part # Part # / Description List Price Price
1 22500-PS5-003 22500-PS5-003 / Clutch Assembly, Low

CLUTCH ASSY., LOW

$173.52 $124.93
2 22510-PS5-003 22510-PS5-003 / Guide, Low Clutch

$380.90 $269.68
3 22530-PS5-003 22530-PS5-003 / Piston, Low Clutch

$62.60 $45.82
4 22541-PS5-003 22541-PS5-003 / Spring, Clutch Return

$20.15 $15.48
5 22542-PS5-003 22542-PS5-003 / Seat, Return Spring

$5.07 $4.26
6 22543-PS5-003 22543-PS5-003 / Plate, Clutch

- -
7 22544-P24-S00 22544-P24-S00 / Disk, Clutch

$26.07 $20.02
8 22556-PS5-003 22556-PS5-003 / Plate, Clutch End (6) (2.6MM)

$19.25 $14.78
8 22553-PS5-003 22553-PS5-003 / Plate, Clutch End (3) (2.3MM)

$19.25 $14.78
8 22551-PS5-003 22551-PS5-003 / Plate, Clutch End (1) (2.1MM)

$19.25 $14.78
8 22552-PS5-003 22552-PS5-003 / Plate, Clutch End (2) (2.2MM)

$19.25 $14.78
8 22555-PS5-003 22555-PS5-003 / Plate, Clutch End (5) (2.5MM)

$19.25 $14.78
8 22557-PS5-003 22557-PS5-003 / Plate, Clutch End (7) (2.7MM)

$19.25 $14.78
8 22554-PS5-003 22554-PS5-003 / Plate, Clutch End (4) (2.4MM)

$19.25 $14.78
9 23226-PS5-000 23226-PS5-000 / Cap, Oil Guide

$8.33 $7.00
10 23230-PS5-010 23230-PS5-010 / Sub-Shaft

$100.33 $72.24
11 23481-PS5-000 23481-PS5-000 / Gear, S-Low

$74.23 $54.34
12 23491-PS5-000 23491-PS5-000 / Gear, Sub-Shaft Fourth

$90.05 $64.84
13 23926-PE9-000 23926-PE9-000 / Washer, Spring (20MM)

$8.82 $6.98
14 90201-PS5-000 90201-PS5-000 / Nut, Hex (20MM)

NUT, HEX. (20MM)

$7.68 $6.45
15 90422-PS5-000 90422-PS5-000 / Washer, Thrust (25MM)

$9.81 $7.77
16 90509-PS5-000 90509-PS5-000 / Collar, Sub-Shaft Fourth Gear

$22.07 $16.95
17 90603-PS5-003 90603-PS5-003 / Circlip (Outer) (33MM)

$5.02 $4.21
18 90605-PS5-003 90605-PS5-003 / Ring, Snap (109MM)

$8.05 $6.76
19 91019-PS5-003 91019-PS5-003 / Needle, Thrust (30X46X2)

$18.12 $13.91
20 91103-PS5-003 91103-PS5-003 / Bearing, Needle (28X39X17)

$38.08 $28.56
21 91111-PJ2-003 91111-PJ2-003 / Bearing, Needle (30X35X17) (Toyo)

$21.67 $16.64
21 91111-PJ2-003 91111-PJ2-003 / Bearing, Needle (30X35X17) (Toyo)

BEARING, NEEDLE (30X35X17) (KOYO)

$21.67 $16.64
22 91302-PS5-003 91302-PS5-003 / O-Ring (33.6X2.2)

$3.05 $2.56
23 91303-PS5-003 91303-PS5-003 / O-Ring (94.0X2.2)

$5.80 $4.87
24 91308-PA9-003 91308-PA9-003 / O-Ring (19.8X1.9) (Arai)

$3.08 $2.59
25 94520-40000 94520-40000 / Circlip (Inner) (40MM)

$1.55 $1.30
