Transmission - Automatic/AT Regulator 4WD for 1990 Honda CIVIC 5-DOOR

Select AT Regulator 4WD Part

1990 Honda CIVIC 5-DOOR

Change vehicle

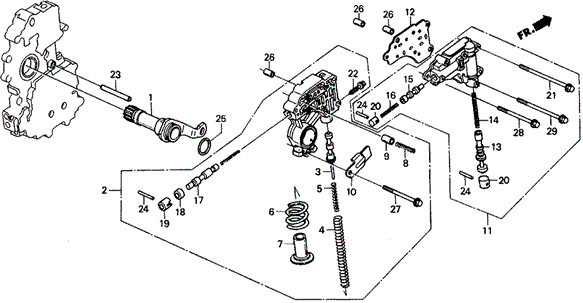

Transmission - Automatic/AT Regulator 4WD for 1990 Honda CIVIC 5-DOOR #1
No. Part # Part # / Description List Price Price
1 25155-PL4-000 25155-PL4-000 / Shaft Assembly, Stator

SHAFT ASSY., STATOR

$115.72 $83.32
2 27200-PS5-900 27200-PS5-900 / Body Assembly, Regulator

BODY ASSY., REGULATOR

- -
3 27221-PC9-000 27221-PC9-000 / Valve, Regulator

$41.87 $31.40
4 27231-PC9-912 27231-PC9-912 / Spring A, Regulator Valve (Nhk Spring)

$4.60 $3.86
5 27232-PF4-000 27232-PF4-000 / Spring B, Regulator Valve

$4.07 $3.42
6 27233-PA9-000 27233-PA9-000 / Spring, Reaction Stator

$15.30 $12.12
7 27246-PN6-800 27246-PN6-800 / Cap, Regulator Spring

$34.25 $25.69
8 27255-PC9-710 27255-PC9-710 / Spring, Torque Converter Check-valve

SPRING, TORQUE CONVERTER CHECKVALVE

$4.15 $3.49
9 27256-639-000 27256-639-000 / Valve, Torque Converter Check

$6.35 $5.33
10 27413-PS5-000 27413-PS5-000 / Stay, Stopper Shaft

$6.67 $5.60
11 27600-PS5-000 27600-PS5-000 / Body Assembly, Lock-Up Valve

BODY ASSY., LOCK-UP VALVE

$136.05 $97.96
12 27612-PS5-010 27612-PS5-010 / Plate, Lock-Up Separating

$7.38 $6.20
13 27621-PN6-000 27621-PN6-000 / Valve, Lock-Up Shift

$26.67 $20.48
14 27623-PL5-000 27623-PL5-000 / Spring, Lock-Up Shift Valve

$2.77 $2.32
15 27626-PL5-000 27626-PL5-000 / Valve B, Lock-Up Timing

$20.00 $15.36
16 27627-PS5-000 27627-PS5-000 / Spring B, Lock-Up Timing

$2.67 $2.24
17 27641-PS5-010 27641-PS5-010 / Valve, Lock-Up Control

$20.00 $15.36
18 27642-PL1-000 27642-PL1-000 / Sleeve, Lock-Up Control

$6.68 $5.61
19 27645-PL1-000 27645-PL1-000 / Cap, Lock-Up Control

$5.30 $4.45
20 27728-PF4-000 27728-PF4-000 / Cap, Reverse Control Valve

$3.20 $2.69
21 90004-PC9-000 90004-PC9-000 / Bolt, Flange (6X90)

$6.15 $5.17
22 90089-PC9-000 90089-PC9-000 / Bolt, Stopper (6MM)

$3.78 $3.18
23 90701-639-000 90701-639-000 / Pin, Dowel (8X55)

$5.00 $4.20
24 91101-PF4-003 91101-PF4-003 / Roller (3.5X21.8)

$1.82 $1.53
25 91316-612-000 91316-612-000 / O-Ring (27.5X1.7)

$3.50 $2.94
26 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.28 $1.08
27 95701-06065-08 95701-06065-08 / Bolt, Flange (6X65)

$1.55 $1.30
28 95701-06075-08 95701-06075-08 / Bolt, Flange (6X75)

$1.55 $1.30
29 95701-06080-08 95701-06080-08 / Bolt, Flange (6X80)

$1.67 $1.40
