Transmission - Automatic/AT Differential for 1990 Honda CIVIC 5-DOOR

Select AT Differential Part

1990 Honda CIVIC 5-DOOR

Change vehicle

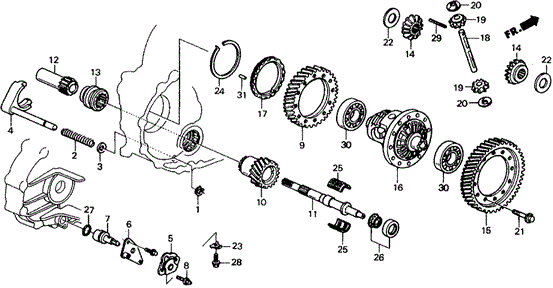

Transmission - Automatic/AT Differential for 1990 Honda CIVIC 5-DOOR #1
No. Part # Part # / Description List Price Price
1 24456-PS5-000 24456-PS5-000 / Set-Ring, Selector (2-4)

$2.75 $2.31
2 24457-PS5-000 24457-PS5-000 / Spring, Selector (2-4)

$4.47 $3.75
3 24458-PS5-000 24458-PS5-000 / Washer, Selector (2-4)

$3.61 $3.02
4 24510-PS5-010 24510-PS5-010 / Fork, Selector (2-4)

$69.05 $50.54
5 24521-PS5-000 24521-PS5-000 / Lever, Selector (2-4)

$18.33 $14.08
6 24522-PS5-000 24522-PS5-000 / Stay, Selector Lever (2-4)

$15.00 $11.88
7 24523-PS5-000 24523-PS5-000 / Cam, Selector (2-4)

$15.17 $12.01
8 24524-PH8-960 24524-PH8-960 / Bolt, Stopper

$4.66 $3.92
9 29011-PS5-000 29011-PS5-000 / Gear, Transfer Drive

$170.77 $122.95
10 29101-PS5-000 29101-PS5-000 / Gear, Transfer Driven

$123.08 $88.62
11 29201-PS5-000 29201-PS5-000 / Shaft, Transfer

$170.77 $122.95
12 29311-PH8-000 29311-PH8-000 / Collar, Transfer Distance

$43.00 $32.25
13 29321-PH8-000 29321-PH8-000 / Sleeve, Selector

$25.07 $19.25
14 41221-PC8-040 41221-PC8-040 / Gear, Drive Pinion

$86.50 $62.28
15 41233-PS5-000 41233-PS5-000 / Gear, Final Driven

$206.97 $149.02
16 41311-PS5-000 41311-PS5-000 / Case, Differential

- -
17 41312-PC9-951 41312-PC9-951 / Gear, Speedometer Drive

- -
18 41321-PL3-T00 41321-PL3-T00 / Shaft, Pinion

- -
19 41341-PC9-010 41341-PC9-010 / Gear, Differential Pinion

- -
20 41353-689-000 41353-689-000 / Washer C, Differential Pinion (0.9MM)

$6.46 $5.42
20 41354-689-000 41354-689-000 / Washer D, Differential Pinion (1.0MM)

- -
20 41352-689-000 41352-689-000 / Washer B, Differential Pinion (0.8MM)

$6.42 $5.39
20 41351-689-000 41351-689-000 / Washer A, Differential Pinion (0.7MM)

$6.46 $5.42
21 90017-PET-000 90017-PET-000 / Bolt, Special (10MM)

$4.15 $3.49
22 90425-680-900 90425-680-900 / Washer, Thrust (28X50X1.5)

$9.23 $7.31
23 90433-639-000 90433-639-000 / Washer, Lock (6MM)

$3.17 $2.66
24 90608-PA9-000 90608-PA9-000 / Circlip (Outer) (90MM)

$8.97 $7.10
25 91107-PH8-008 91107-PH8-008 / Bearing, Needle (28X34X35)

- -
26 91121-PH8-961 91121-PH8-961 / Bearing, Taper (30203)

- -
27 91302-PK4-003 91302-PK4-003 / O-Ring (24X2.9)

$2.42 $2.03
28 24282-634-000 24282-634-000 / Bolt, Shaft Fork Setting

$3.42 $2.87
29 94305-40282 94305-40282 / Pin, Spring (4X28)

$1.32 $1.11
30 96100-62083-00 96100-62083-00 / Bearing, Radial Ball (6208)

$40.28 $30.21
31 96220-50150 96220-50150 / Roller (5X15)

$0.52 $0.43
