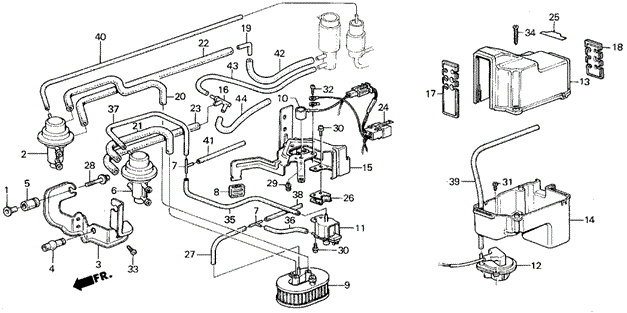

ELECTRICAL / EXHAUST / HEATER / FUEL/CONTROL BOX (3) (GL: '85-'87) for 1987 Honda CIVIC SEDAN

Select CONTROL BOX (3) (GL: '85-'87) Part

1987 Honda CIVIC SEDAN

Change vehicle

No. Part # Part # / Description List Price Price
1 16808-PE1-660 16808-PE1-660 / Collar, Air Jet Control Mounting

$2.27 $1.90
2 17380-PE1-691 17380-PE1-691 / Valve Assembly A, Air Control

VALVE ASSY. A, AIR CONTROL

$47.50 $35.63
2 17380-PE1-701 17380-PE1-701 / Valve Assembly A, Air Control

VALVE ASSY. A, AIR CONTROL

$47.50 $35.63
3 17387-PE1-662 17387-PE1-662 / Stay, Air Control Valve

$16.67 $13.20
4 17388-PE1-661 17388-PE1-661 / Stopper, Air Control Valve

$3.97 $3.33
5 17389-PE1-661 17389-PE1-661 / Mounting Rubber, Air Control Valve

$3.33 $2.80
6 17390-PE1-691 17390-PE1-691 / Valve Assembly B, Air Control

VALVE ASSY. B, AIR CONTROL

- -
6 17390-PG6-003 17390-PG6-003 / Valve B, Air Control

VALVE ASSY. B, AIR CONTROL

$108.32 $77.99
9 36120-PE1-661 36120-PE1-661 / Filter Assembly, Air Control Valve

FILTER ASSY., AIR CONTROL VALVE

- -
10 36161-PE1-711 36161-PE1-711 / Coil, Auxiliary

- -
11 36165-PE1-661 36165-PE1-661 / Valve Assembly, Sub Leak Solenoid

VALVE ASSY., SUB LEAK SOLENOID

- -
12 36183-PE1-711 36183-PE1-711 / Switch Assembly, Vacuum (B-30)

SWITCH ASSY., VACUUM (B-30)

- -
13 36201-PE1-712 36201-PE1-712 / Cover (Upper)

- -
14 36202-PE1-712 36202-PE1-712 / Cover (Lower)

- -
15 36203-PE1-712 36203-PE1-712 / Stay, Control Box

$33.33 $25.60
24 36226-PE1-711 36226-PE1-711 / Wire Assembly

WIRE ASSY.

- -
25 36227-PE1-712 36227-PE1-712 / Label, Control Box (No.2)

$2.40 $2.02
28 93404-06032-08 93404-06032-08 / Bolt-Washer (6X32)

$1.22 $1.02
29 93892-04008-08 93892-04008-08 / Screw-Washer (4x8)

$0.75 $0.63
30 93892-05008-08 93892-05008-08 / Screw-Washer (5X8)

$0.68 $0.57
31 93901-32120 93901-32120 / Screw, Tapping (3X8)

$0.53 $0.45
32 93901-35120 93901-35120 / Screw, Tapping (5X10)

- -
33 93903-26120 93903-26120 / Screw, Tapping (6X12)

$0.68 $0.57
34 93905-34620 93905-34620 / Screw, Tapping (4X25)

- -
