Transmission - Automatic/4AT Speedometer Gear for 1987 Honda CIVIC 5-DOOR

Select 4AT Speedometer Gear Part

1987 Honda CIVIC 5-DOOR

Change vehicle

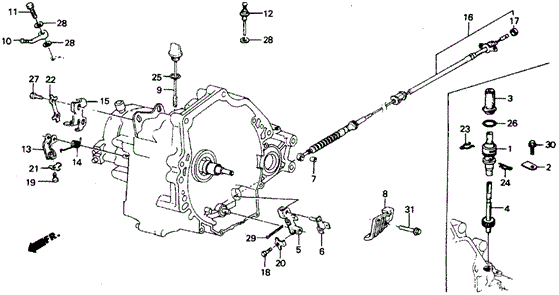

Transmission - Automatic/4AT Speedometer Gear for 1987 Honda CIVIC 5-DOOR #1
No. Part # Part # / Description List Price Price
1 23811-PC1-000 23811-PC1-000 / Holder, Speedometer Gear

- -
2 23813-689-000 23813-689-000 / Plate, Speedometer Gear Holder

- -
3 23814-689-000 23814-689-000 / Seal, Gear Holder

- -
4 23820-PC9-000 23820-PC9-000 / Gear, Speedometer Driven

- -
5 24412-PC9-000 24412-PC9-000 / Lever, Control

- -
6 24414-PA9-010 24414-PA9-010 / Pin, Control

$5.40 $4.54
7 24415-PA9-000 24415-PA9-000 / Roller, Control Lever

$6.08 $5.11
8 24901-PF0-910 24901-PF0-910 / Holder, Control Cable

- -
9 25610-PH0-000 25610-PH0-000 / Dipstick, Oil (Atf)

- -
10 25910-639-000 25910-639-000 / Joint A, Oil Hose

- -
11 25951-639-000 25951-639-000 / Bolt, Joint

$13.92 $11.02
12 25960-PA9-020 25960-PA9-020 / Joint, Oil Hose

$11.12 $8.80
13 27494-PF4-000 27494-PF4-000 / Lever, Throttle Control

- -
14 27495-PF4-000 27495-PF4-000 / Spring, Throttle Lever

- -
15 27496-PC9-000 27496-PC9-000 / Stay, Throttle Cable

$12.97 $10.27
16 54315-SB6-982 54315-SB6-982 / Wire, Control

- -
17 54341-SA0-980 54341-SA0-980 / Boot, Control Wire

- -
18 90001-PA9-000 90001-PA9-000 / Bolt, Hex (6MM)

BOLT, HEX. (6MM)

$4.78 $4.02
19 90010-P24-J00 90010-P24-J00 / Bolt, Special (5X15)

$2.63 $2.21
20 90433-639-000 90433-639-000 / Washer, Lock (6MM)

$3.17 $2.66
21 90436-PA9-000 90436-PA9-000 / Washer, Lock (5MM)

$3.58 $3.01
22 90437-PA9-000 90437-PA9-000 / Washer, Tongued (6MM)

- -
23 90637-689-000 90637-689-000 / Clip, Speedometer Cable

$4.03 $3.39
24 90638-689-000 90638-689-000 / Clip, Speedometer Gear

$4.03 $3.39
25 91307-425-003 91307-425-003 / O-Ring (21.5X3.2)

$1.83 $1.54
26 91313-611-010 91313-611-010 / O-Ring (23.5X2)

$2.17 $1.82
27 92101-06016-0H 92101-06016-0H / Bolt, Hex (6X16)

BOLT, HEX. (6X16)

$0.95 $0.80
28 94109-12000 94109-12000 / Washer, Drain Plug (12MM)

$0.73 $0.62
29 94201-20350 94201-20350 / Pin, Split (2.0X35)

$0.82 $0.69
30 95701-06016-08 95701-06016-08 / Bolt, Flange (6X16)

$1.07 $0.90
31 95701-08035-08 95701-08035-08 / Bolt, Flange (8X35)

$1.03 $0.87
