TRANSMISSION - AUTOMATIC/AT MAIN VALVE BODY ('84-'85) for 1985 Honda CIVIC HATCHBACK

Select AT MAIN VALVE BODY ('84-'85) Part

1985 Honda CIVIC HATCHBACK

Change vehicle

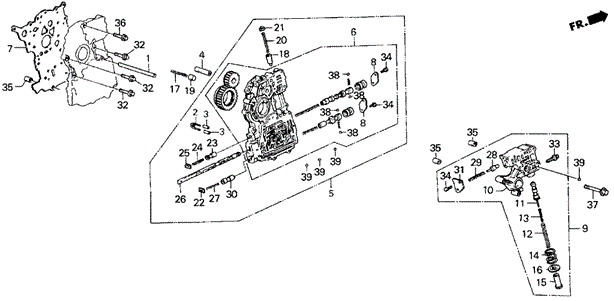

TRANSMISSION - AUTOMATIC/AT MAIN VALVE BODY ('84-'85) for 1985 Honda CIVIC HATCHBACK #1
No. Part # Part # / Description List Price Price
1 22741-PF0-000 22741-PF0-000 / Pipe, Low Clutch

$11.75 $9.31
2 24461-PA9-010 24461-PA9-010 / Spring, Roller

- -
3 24471-612-000 24471-612-000 / Roller (6X16)

- -
4 25145-PA9-010 25145-PA9-010 / Shaft, Oil Pump Gear

$9.85 $7.80
5 27000-PF0-020 27000-PF0-020 / Body Assembly, Main Valve

BODY ASSY., MAIN VALVE

- -
6 27105-PF0-315 27105-PF0-315 / Body Sub-Assembly, Main Valve

BODY SUB-ASSY., MAIN VALVE

- -
7 27112-PF0-850 27112-PF0-850 / Plate, Main Separating

- -
8 27122-PA9-000 27122-PA9-000 / Cover, Shift Valve

$6.67 $5.60
9 27200-PF0-010 27200-PF0-010 / Regulator Assembly

REGULATOR ASSY.

- -
10 27211-PF0-000 27211-PF0-000 / Body, Regulator Valve

- -
11 27221-PC9-000 27221-PC9-000 / Valve, Regulator

$41.87 $31.40
12 27231-PA9-000 27231-PA9-000 / Spring A, Regulator Valve

$4.93 $4.14
13 27232-PA9-000 27232-PA9-000 / Spring B, Regulator Valve

$3.97 $3.33
14 27233-PA9-000 27233-PA9-000 / Spring, Reaction Stator

$15.30 $12.12
15 27246-PA9-000 27246-PA9-000 / Cap, Regulator Spring

- -
16 27247-PA9-000 27247-PA9-000 / Seat, Reaction Spring

- -
17 27255-PC9-710 27255-PC9-710 / Spring, Torque Converter Check-valve

SPRING, TORQUE CONVERTER CHECKVALVE

$4.15 $3.49
18 27256-PA9-000 27256-PA9-000 / Valve, Relief

$15.65 $12.39
19 27256-639-000 27256-639-000 / Valve, Torque Converter Check

$6.35 $5.33
20 27257-PA9-000 27257-PA9-000 / Spring, Relief Valve

- -
21 27258-680-900 27258-680-900 / Seat, Relief Valve Spring

$3.07 $2.58
25 27419-PC9-010 27419-PC9-010 / Seat, Valve Spring

$1.73 $1.46
23 27415-PC9-010 27415-PC9-010 / Valve, Orifice Control

$14.37 $11.38
24 27418-PC9-951 27418-PC9-951 / Spring, Orifice Control Valve

$2.25 $1.89
26 27421-PF0-000 27421-PF0-000 / Valve, Manual

- -
27 27632-PF0-000 27632-PF0-000 / Spring, Governor Cut

- -
28 27634-PF0-000 27634-PF0-000 / Valve, Control

- -
29 27635-PF0-000 27635-PF0-000 / Spring, Control Valve

$2.37 $1.99
30 27636-PF0-000 27636-PF0-000 / Valve, Governor Cut

- -
31 27637-PF0-000 27637-PF0-000 / Cover, Control Valve

$10.00 $7.92
32 95701-06030-08 95701-06030-08 / Bolt, Flange (6X30)

$1.45 $1.22
33 90089-PC9-000 90089-PC9-000 / Bolt, Stopper (6MM)

$3.78 $3.18
34 92101-05012-0G 92101-05012-0G / Bolt, Hex (5X12)

BOLT, HEX. (5X12)

$0.67 $0.56
35 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.28 $1.08
36 95701-06035-08 95701-06035-08 / Bolt, Flange (6X35)

$1.23 $1.04
37 95701-06060-08 95701-06060-08 / Bolt, Flange (6X60)

$1.45 $1.22
38 96211-06000 96211-06000 / Ball, Steel (#6) (3/16)

$0.32 $0.27
39 96211-07000 96211-07000 / Ball, Steel (#7) (7/32)

$0.88 $0.74
