TRANSMISSION - AUTOMATIC/3AT SERVO BODY for 1985 Honda CIVIC 5-DOOR

Select 3AT SERVO BODY Part

1985 Honda CIVIC 5-DOOR

Change vehicle

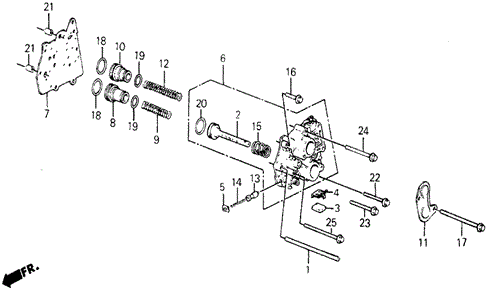

TRANSMISSION - AUTOMATIC/3AT SERVO BODY for 1985 Honda CIVIC 5-DOOR #1
No. Part # Part # / Description List Price Price
1 22743-PF0-000 22743-PF0-000 / Pipe, Third Clutch

$12.75 $10.10
2 24273-PF0-010 24273-PF0-010 / Shaft C, Shift Fork

- -
2 24272-PF0-000 24272-PF0-000 / Shaft B, Shift Fork

- -
2 24271-PF0-000 24271-PF0-000 / Shaft A, Shift Fork

- -
3 25422-PC9-000 25422-PC9-000 / Magnet, Transmission

$3.67 $3.08
4 25423-PC9-010 25423-PC9-010 / Spring, Magnet Holder

$2.73 $2.30
5 27419-PC9-010 27419-PC9-010 / Seat, Valve Spring

$1.73 $1.46
6 27405-PF0-325 27405-PF0-325 / Body Set, Servo

- -
7 27412-PF0-000 27412-PF0-000 / Plate, Servo Separating

- -
8 27572-PA9-020 27572-PA9-020 / Piston, Second Accumulator

- -
9 27573-PF0-010 27573-PF0-010 / Spring, Second Accumulator

- -
10 27574-PC9-010 27574-PC9-010 / Piston, Third Accumulator

- -
11 27581-PA9-020 27581-PA9-020 / Cover, Accumulator

$16.67 $13.20
12 27583-PC9-010 27583-PC9-010 / Spring, Third Accumulator

$11.25 $8.91
13 27631-PC9-810 27631-PC9-810 / Valve A, Lock-Up Timing

$13.33 $10.56
14 27644-PC9-610 27644-PC9-610 / Spring, Lock-Up Cut Valve

$2.13 $1.79
15 27861-PF0-000 27861-PF0-000 / Spring, Servo Return

$7.70 $6.47
16 95701-06030-08 95701-06030-08 / Bolt, Flange (6X30)

$1.45 $1.22
17 90008-PA9-020 90008-PA9-020 / Bolt, Flange (6X116.5)

- -
18 91310-PA9-004 91310-PA9-004 / O-Ring (35.2X2.4) (Nok)

$2.80 $2.35
19 91318-PA9-003 91318-PA9-003 / O-Ring (23.5X2.1) (Arai)

$2.32 $1.95
20 91344-580-000 91344-580-000 / O-Ring (31X2.7) (Arai)

$2.95 $2.48
21 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.28 $1.08
22 95701-06060-08 95701-06060-08 / Bolt, Flange (6X60)

$1.45 $1.22
23 95701-06065-08 95701-06065-08 / Bolt, Flange (6X65)

$1.55 $1.30
24 95701-06080-08 95701-06080-08 / Bolt, Flange (6X80)

$1.67 $1.40
25 95701-06110-08 95701-06110-08 / Bolt, Flange (6X110)

$2.48 $2.09
