Transmission - Hondamatic/HMT Servo Body - Governor for 1981 Honda CIVIC HATCHBACK

Select HMT Servo Body - Governor Part

1981 Honda CIVIC HATCHBACK

Change vehicle

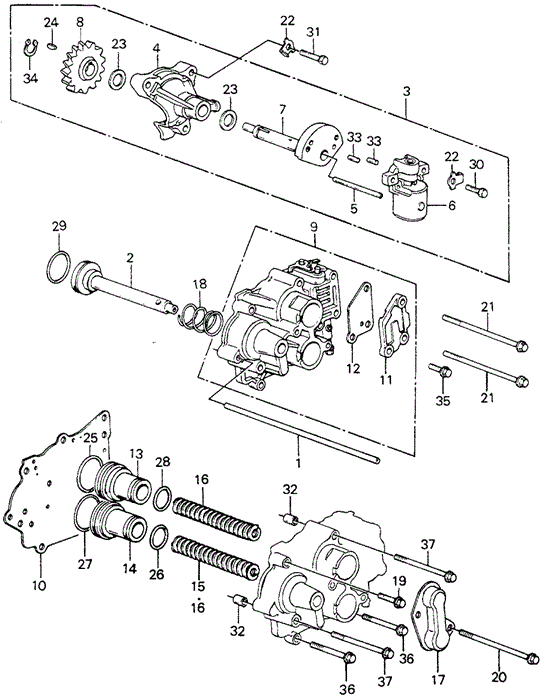

Transmission - Hondamatic/HMT Servo Body - Governor for 1981 Honda CIVIC HATCHBACK #1
No. Part # Part # / Description List Price Price
1 22743-PA9-000 22743-PA9-000 / Pipe, Third Clutch

- -
2 24271-PA9-020 24271-PA9-020 / Shaft A, Shift Fork

- -
2 24272-PA9-010 24272-PA9-010 / Shaft B, Shift Fork

- -
3 27300-PA9-030 27300-PA9-030 / Governor Assembly

GOVERNOR ASSY.

- -
4 27310-680-901 27310-680-901 / Holder, Governor

$35.00 $26.25
5 27312-PA9-000 27312-PA9-000 / Pipe (5X65)

$4.88 $4.10
6 27315-PA9-305 27315-PA9-305 / Body Assembly, Governor

BODY ASSY., GOVERNOR

$112.44 $74.12
7 27341-PA9-000 27341-PA9-000 / Shaft, Governor

$60.28 $40.44
8 27342-PA9-010 27342-PA9-010 / Gear, Governor

- -
9 27400-PA9-913 27400-PA9-913 / Body Set, Servo

- -
10 27412-PA9-010 27412-PA9-010 / Plate, Servo Separating

- -
11 27413-PA9-000 27413-PA9-000 / Cover, Throttle Valve

- -
12 27414-PA9-000 27414-PA9-000 / Plate, Throttle Separating

- -
13 27571-PA9-010 27571-PA9-010 / Piston, Third Accumulator

- -
14 27572-PA9-910 27572-PA9-910 / Piston, Second Accumulator

- -
16 27574-PA9-010 27574-PA9-010 / Spring, Accumulator

- -
17 27581-PA9-010 27581-PA9-010 / Cover, Accumulator

- -
18 27861-PA9-010 27861-PA9-010 / Spring, Servo Return

- -
19 95701-06030-08 95701-06030-08 / Bolt, Flange (6X30)

$1.45 $1.22
20 90008-PA9-020 90008-PA9-020 / Bolt, Flange (6X116.5)

- -
21 90009-PA9-000 90009-PA9-000 / Bolt, Hex (6X100)

BOLT, HEX. (6X100)

- -
22 90433-639-000 90433-639-000 / Washer, Lock (6MM)

$3.17 $2.66
23 90451-035-900 90451-035-900 / Washer, Thrust (14MM)

- -
24 90741-PA9-000 90741-PA9-000 / Key, Woodruff (3MM)

- -
25 91310-PA9-004 91310-PA9-004 / O-Ring (35.2X2.4) (Nok)

$2.80 $2.35
26 91315-612-000 91315-612-000 / O-Ring (26X2)

- -
27 91317-PA9-003 91317-PA9-003 / O-Ring (33.2X2.4) (Nok)

$3.28 $2.76
28 91318-PA9-003 91318-PA9-003 / O-Ring (23.5X2.1) (Arai)

$2.32 $1.95
29 91344-580-000 91344-580-000 / O-Ring (31X2.7) (Arai)

$2.95 $2.48
30 92101-06018-0A 92101-06018-0A / Bolt, Hex (6X18)

BOLT, HEX. (6X18)

$1.00 $0.84
31 92201-06030-0H 92201-06030-0H / Bolt, Hex (6X30)

BOLT, HEX. (6X30)

$0.69 $0.59
32 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.28 $1.08
33 94303-05080 94303-05080 / Pin, Dowel (5X8)

$1.23 $1.04
34 94510-14000 94510-14000 / Circlip (Outer) (14MM)

$0.65 $0.55
35 95701-06020-08 95701-06020-08 / Bolt, Flange (6X20)

$0.28 $0.24
36 95701-06060-08 95701-06060-08 / Bolt, Flange (6X60)

$1.45 $1.22
37 95701-06080-08 95701-06080-08 / Bolt, Flange (6X80)

$1.67 $1.40
