Transmission - Hondamatic/HMT Main Valve Body - Regulatorvalve for 1981 Honda ACCORD SEDAN

Select HMT Main Valve Body - Regulatorvalve Part

1981 Honda ACCORD SEDAN

Change vehicle

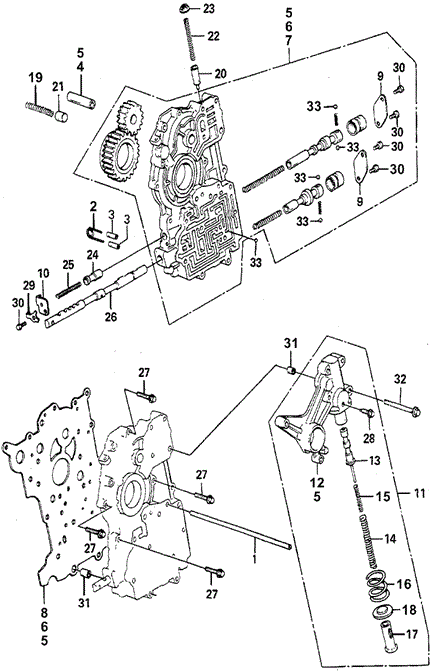

Transmission - Hondamatic/HMT Main Valve Body - Regulatorvalve for 1981 Honda ACCORD SEDAN #1
No. Part # Part # / Description List Price Price
1 22741-PA9-000 22741-PA9-000 / Pipe, Low Clutch

- -
2 24461-PA9-010 24461-PA9-010 / Spring, Roller

- -
2 24461-PA9-010 24461-PA9-010 / Spring, Roller

- -
3 24471-612-000 24471-612-000 / Roller (6X16)

- -
4 25145-PA9-010 25145-PA9-010 / Shaft, Oil Pump Gear

$9.85 $7.80
7 27105-PA9-305 27105-PA9-305 / Body Sub-Assembly, Main Valve

BODY SUB-ASSY., MAIN VALVE

- -
8 27112-PA9-010 27112-PA9-010 / Plate, Main Separating

- -
9 27122-PA9-000 27122-PA9-000 / Cover, Shift Valve

$6.67 $5.60
10 27124-PA9-000 27124-PA9-000 / Plate, Valve Stopper

- -
11 27200-PA9-020 27200-PA9-020 / Regulator Assembly

REGULATOR ASSY.

- -
12 27211-PA9-010 27211-PA9-010 / Body, Regulator Valve

- -
13 27221-PC9-000 27221-PC9-000 / Valve, Regulator

$41.87 $31.40
14 27231-PA9-000 27231-PA9-000 / Spring A, Regulator Valve

$4.93 $4.14
15 27232-PA9-000 27232-PA9-000 / Spring B, Regulator Valve

$3.97 $3.33
16 27233-PA9-000 27233-PA9-000 / Spring, Reaction Stator

$15.30 $12.12
17 27246-PA9-000 27246-PA9-000 / Cap, Regulator Spring

- -
18 27247-PA9-000 27247-PA9-000 / Seat, Reaction Spring

- -
19 27255-639-010 27255-639-010 / Spring, Check Valve

- -
20 27256-PA9-000 27256-PA9-000 / Valve, Relief

$15.65 $12.39
21 27256-639-000 27256-639-000 / Valve, Torque Converter Check

$6.35 $5.33
22 27257-PA9-000 27257-PA9-000 / Spring, Relief Valve

- -
23 27257-591-020 27257-591-020 / Cap, Torque Converter Check Valve

- -
24 27417-PA9-000 27417-PA9-000 / Valve, Orifice Control

- -
25 27418-PA9-010 27418-PA9-010 / Spring, Orifice Control Valve

- -
26 27421-PA9-000 27421-PA9-000 / Valve, Manual

- -
27 95701-06030-08 95701-06030-08 / Bolt, Flange (6X30)

$1.45 $1.22
28 90089-591-020 90089-591-020 / Bolt, Stopper (6MM)

- -
29 90436-PA9-000 90436-PA9-000 / Washer, Lock (5MM)

$3.58 $3.01
30 92101-05012-0G 92101-05012-0G / Bolt, Hex (5X12)

BOLT, HEX. (5X12)

$0.67 $0.56
31 94301-08140 94301-08140 / Pin, Dowel (8X14)

$1.28 $1.08
32 95701-06060-08 95701-06060-08 / Bolt, Flange (6X60)

$1.45 $1.22
33 96211-06000 96211-06000 / Ball, Steel (#6) (3/16)

$0.32 $0.27
