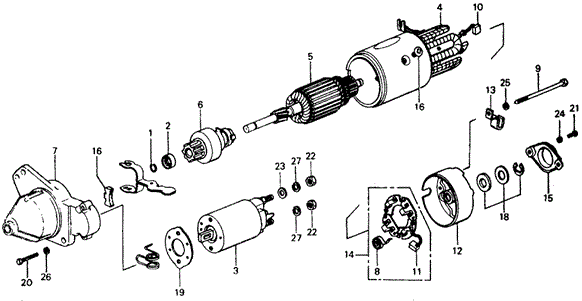

Engine/Starter Motor Components (Hitachi) ('77) (KL) for 1977 Honda CIVIC HATCHBACK

Select Starter Motor Components (Hitachi) ('77) (KL) Part

1977 Honda CIVIC HATCHBACK

Change vehicle

No. Part # Part # / Description List Price Price
1 31201-634-005 31201-634-005 / Clip, Pinion Stopper

- -
2 31202-634-005 31202-634-005 / Stopper, Pinion

- -
6 31207-634-005 31207-634-005 / Pinion

- -
7 31208-679-005 31208-679-005 / Case, Gear

- -
8 31212-634-005 31212-634-005 / Spring, Brush

- -
9 31214-634-811 31214-634-811 / Bolt, Through

- -
10 31215-634-005 31215-634-005 / Brush (Positive)

- -
11 31216-634-005 31216-634-005 / Brush (Negative)

- -
12 31219-634-015 31219-634-015 / Cover, Rear

COVER, RR.

- -
13 31229-634-005 31229-634-005 / Clip, Wire

- -
13 31229-657-005 31229-657-005 / Clip, Wire

- -
14 31231-679-305 31231-679-305 / Holder Comp, Brush

HOLDER, BRUSH

$47.80 $35.85
15 31232-634-015 31232-634-015 / Cover D, Dust

- -
16 31236-634-005 31236-634-005 / Cover C, Dust

- -
17 31237-634-005 31237-634-005 / Screw, Field Coil Setting

$4.00 $3.36
18 31271-634-005 31271-634-005 / Washer Kit, Thrust (Hitachi)

- -
19 31281-634-005 31281-634-005 / Cover Set, Dust

- -
20 92101-06032-0A 92101-06032-0A / Bolt, Hex (6X32)

BOLT, HEX. (6X32)

$1.10 $0.92
21 93500-04012-0H 93500-04012-0H / Screw, Pan (4X12)

$0.58 $0.49
22 94001-08000-0S 94001-08000-0S / Nut, Hex (8MM)

NUT, HEX. (8MM)

$0.85 $0.71
23 94101-08800 94101-08800 / Washer, Plain (8MM)

$1.33 $1.12
24 94111-04800 94111-04800 / Washer, Spring (4MM)

$0.63 $0.53
25 94111-05800 94111-05800 / Washer, Spring (5MM)

$0.73 $0.62
26 94111-06800 94111-06800 / Washer, Spring (6MM)

$0.73 $0.62
27 94111-08800 94111-08800 / Washer, Spring (8MM)

$0.63 $0.53
