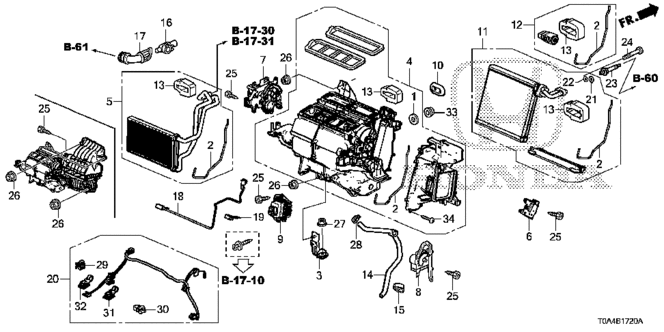

EVAPORATOR in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT for 2014 Honda CR-V

EVAPORATOR in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT for 2014 Honda CR-V #1
27
  • NUT, PAINT CUTTING (6MM) - $1.20
2
  • SEAL A - $1.56
4
  • HEATER SUB-ASSY. - $91.45
25
  • SCREW, TAPPING (4X16) - $0.96
25
  • SCREW, TAPPING (4X16) - $0.96
19
  • CLIP, EVAPORATOR SENSOR - $0.58
17
  • HOSE B, ASPIRATOR - $3.76
14
  • HOSE, DRAIN - $4.80
2
  • SEAL A - $1.56
21
  • O-RING (5/8") - $2.32
26
  • NUT-WASHER (6MM) (PAINT CUTTING) - $2.00
6
  • MOTOR ASSY., MODE SERVO - $19.67
2
  • SEAL A - $1.56
1
  • GASKET, HEATER - $1.38
15
  • CLAMP, DRAIN HOSE - $0.74
28
  • CLIP, DRAIN HOSE - $2.70
13
  • SEAL, EXPANSION VALVE - $4.31
13
  • SEAL, EXPANSION VALVE - $4.31
23
  • BOLT, STUD (6X49) - $5.33
33
  • NUT-WASHER (8MM) - $0.59
5
  • CORE SUB-ASSY., HEATER - $68.35
24
  • BOLT, SOCKET (5X40) - $2.16
31
  • CLIP, HARNESS BAND (164.5MM) (DARK BLUE) - $0.18
12
  • VALVE ASSY., EXPANSION - $74.22
32
  • CLIP, HARNESS BAND (140.3MM) (BLACK) - $0.41
8
  • MOTOR ASSY., AIR MIX (PASSENGER SIDE) - $22.97
26
  • NUT-WASHER (6MM) (PAINT CUTTING) - $2.00
3
  • BRACKET, HEATER (LOWER) - $3.44
26
  • NUT-WASHER (6MM) (PAINT CUTTING) - $2.00
25
  • SCREW, TAPPING (4X16) - $0.96
34
  • SCREW, TAPPING (4X16) - $1.30
22
  • O-RING (1/2") - $2.32
10
  • GROMMET, HEATER PIPE - $5.15
20
  • SUB-WIRE HARNESS, AIR CONDITIONER - $24.76
13
  • SEAL, EXPANSION VALVE - $4.31
9
  • TRANSISTOR, POWER - $30.79
18
  • THERMISTOR, AIR CONDITIONER - $19.79
13
  • SEAL, EXPANSION VALVE - $4.31
29
  • CLIP, CONNECTOR (NATURAL) - $2.32
16
  • ASPIRATOR - $6.72
30
  • CLIP, HARNESS BAND (100.1MM) (NATURAL) - $0.08
25
  • SCREW, TAPPING (4X16) - $0.96
7
  • MOTOR ASSY., AIR MIX (DRIVER SIDE) - $19.67
11
  • EVAPORATOR - $120.41
25
  • SCREW, TAPPING (4X16) - $0.96
2
  • SEAL A - $1.56
26
  • NUT-WASHER (6MM) (PAINT CUTTING) - $2.00
No. Part # Part # / Description Qty Req. List Price Price
1 39248-692-003 39248-692-003 / GASKET, HEATER

1 $1.92 $1.38
2 79021-TR0-A01 79021-TR0-A01 / SEAL A

1 $2.17 $1.56
3 79022-T0G-A00 79022-T0G-A00 / BRACKET, HEATER (LOWER)

1 $4.78 $3.44
4 79106-T0G-A41 79106-T0G-A41 / HEATER SUB-ASSY.

1 $127.02 $91.45
5 79115-T0G-A01 79115-T0G-A01 / CORE SUB-ASSY., HEATER

1 $94.93 $68.35
6 79140-TR0-A01 79140-TR0-A01 / MOTOR ASSY., MODE SERVO

1 $27.32 $19.67
7 79160-T0A-A41 79160-T0A-A41 / MOTOR ASSY., AIR MIX (DRIVER SIDE)

1 $27.32 $19.67
8 79170-T0A-A41 79170-T0A-A41 / MOTOR ASSY., AIR MIX (PASSENGER SIDE)

1 $31.90 $22.97
9 79330-TR0-A01 79330-TR0-A01 / TRANSISTOR, POWER

1 $42.77 $30.79
10 79731-S5A-000 79731-S5A-000 / GROMMET, HEATER PIPE

1 $7.15 $5.15
11 80211-T0A-A01 80211-T0A-A01 / EVAPORATOR

1 $167.23 $120.41
12 80221-T0A-A01 80221-T0A-A01 / VALVE ASSY., EXPANSION

1 $103.08 $74.22
13 80222-TR2-T41 80222-TR2-T41 / SEAL, EXPANSION VALVE

1 $5.98 $4.31
14 80271-T0A-A00 80271-T0A-A00 / HOSE, DRAIN

1 $6.67 $4.80
15 80381-T0A-A01 80381-T0A-A01 / CLAMP, DRAIN HOSE

1 $1.03 $0.74
16 80534-S84-A41 80534-S84-A41 / ASPIRATOR

1 $9.33 $6.72
17 80542-SNB-940 80542-SNB-940 / HOSE B, ASPIRATOR

1 $5.22 $3.76
18 80560-TC0-Z41 80560-TC0-Z41 / THERMISTOR, AIR CONDITIONER

1 $27.48 $19.79
19 80566-SVA-A01 80566-SVA-A01 / CLIP, EVAPORATOR SENSOR

1 $0.80 $0.58
20 80650-T0A-A40 80650-T0A-A40 / SUB-WIRE HARNESS, AIR CONDITIONER

1 $34.38 $24.76
21 80871-S5A-003 80871-S5A-003 / O-RING (5/8")

1 $3.22 $2.32
22 80872-S5A-003 80872-S5A-003 / O-RING (1/2")

1 $3.22 $2.32
23 90121-SNA-A00 90121-SNA-A00 / BOLT, STUD (6X49)

1 $7.40 $5.33
24 90126-S5A-003 90126-S5A-003 / BOLT, SOCKET (5X40)

2 $3.00 $2.16
25 90127-S84-003 90127-S84-003 / SCREW, TAPPING (4X16)

12 $1.33 $0.96
26 90321-SV4-003 90321-SV4-003 / NUT-WASHER (6MM) (PAINT CUTTING)

5 $2.78 $2.00
27 90361-SV4-003 90361-SV4-003 / NUT, PAINT CUTTING (6MM)

1 $1.67 $1.20
28 90661-S2A-003 90661-S2A-003 / CLIP, DRAIN HOSE

1 $3.75 $2.70
29 91533-STK-003 91533-STK-003 / CLIP, CONNECTOR (NATURAL)

1 $3.22 $2.32
30 91540-TA0-003 91540-TA0-003 / CLIP, HARNESS BAND (100.1MM) (NATURAL)

1 $0.12 $0.08
31 91542-SNA-003 91542-SNA-003 / CLIP, HARNESS BAND (164.5MM) (DARK BLUE)

2 $0.25 $0.18
32 91549-TA0-003 91549-TA0-003 / CLIP, HARNESS BAND (140.3MM) (BLACK)

6 $0.57 $0.41
33 94071-08080 94071-08080 / NUT-WASHER (8MM)

1 $0.82 $0.59
34 90127-SX0-003 90127-SX0-003 / SCREW, TAPPING (4X16)

0 $1.80 $1.30
