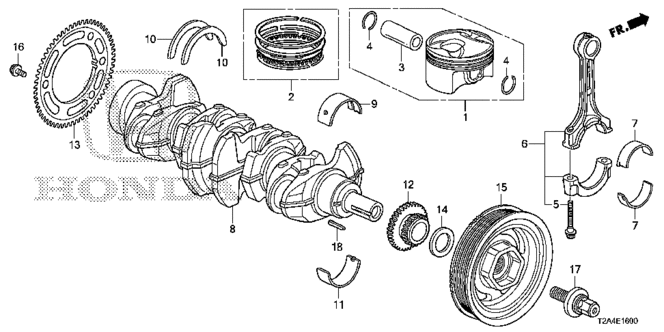

CRANKSHAFT in ENGINE/CRANKSHAFT - PISTON (L4) for 2014 Honda ACCORD SEDAN

CRANKSHAFT in ENGINE/CRANKSHAFT - PISTON (L4) for 2014 Honda ACCORD SEDAN #1
11
  • BEARING D, MAIN (LOWER) (GREEN) (TAIHO) - $2.23
  • BEARING C, MAIN (LOWER) (BROWN) (TAIHO) - $2.23
  • BEARING B, MAIN (LOWER) (BLACK) (TAIHO) - $2.23
  • BEARING F, MAIN (LOWER) (PINK)(TAIHO) - $2.23
  • BEARING E, MAIN (LOWER) (YELLOW) (TAIHO) - $2.23
  • BEARING A, MAIN (LOWER) (BLUE)(TAIHO) - $2.23
12
  • SPROCKET, CHAIN DRIVE - $54.42
1
  • PISTON SET (OVER SIZE) (0.25) - $163.00
  • PISTON SET (STD) (B) - $49.38
  • PISTON SET (STD) (A) - $49.38
16
  • BOLT, SPECIAL (8X11) - $0.61
4
  • CLIP, PISTON PIN - $1.75
4
  • CLIP, PISTON PIN - $1.75
6
  • ROD, CONNECTING - $149.54
14
  • SPACER A - $2.52
7
  • BEARING B, CONNECTING ROD (BLACK) (DAIDO) - $10.20
  • BEARING, CONNECTING ROD (F)(PINK) (DAIDO) - $8.95
  • BEARING E, CONNECTING ROD (YELLOW) (DAIDO) - $10.20
  • BEARING D, CONNECTING ROD (GREEN) (DAIDO) - $10.20
  • BEARING G, CONNECTING ROD (RED) (DAIDO) - $8.95
  • BEARING C, CONNECTING ROD (BROWN) (DAIDO) - $10.20
10
  • WASHER, THRUST - $6.53
9
  • BEARING F, MAIN (UPPER) (PINK)(TAIHO) - $2.35
  • BEARING E, MAIN (UPPER) (YELLOW) (TAIHO) - $2.35
  • BEARING B, MAIN (UPPER) (BLACK) (TAIHO) - $2.35
  • BEARING D, MAIN (UPPER) (GREEN) (TAIHO) - $2.35
  • BEARING C, MAIN (UPPER) (BROWN) (TAIHO) - $2.35
  • BEARING A, MAIN (UPPER) (BLUE)(TAIHO) - $2.35
10
  • WASHER, THRUST - $6.53
7
  • BEARING B, CONNECTING ROD (BLACK) (DAIDO) - $10.20
  • BEARING, CONNECTING ROD (F)(PINK) (DAIDO) - $8.95
  • BEARING E, CONNECTING ROD (YELLOW) (DAIDO) - $10.20
  • BEARING D, CONNECTING ROD (GREEN) (DAIDO) - $10.20
  • BEARING G, CONNECTING ROD (RED) (DAIDO) - $8.95
  • BEARING C, CONNECTING ROD (BROWN) (DAIDO) - $10.20
18
  • KEY (4.5X21) - $2.10
13
  • PLATE, CRANK PULSER - $5.93
5
  • BOLT, CONNECTING ROD - $5.80
17
  • BOLT-WASHER (16X49) - $9.79
2
  • RING SET, PISTON (STD) (RIKEN) - $38.44
  • RING SET, PISTON (OVER SIZE) (0.25) (RIKEN) - $38.44
15
  • PULLEY, CRANKSHAFT - $46.99
3
  • PIN, PISTON - $8.22
8
  • CRANKSHAFT - $268.68
No. Part # Part # / Description Qty Req. List Price Price
1 13030-5A2-A00 13030-5A2-A00 / PISTON SET (OVER SIZE) (0.25)

0 $226.38 $163.00
1 13020-5A2-A00 13020-5A2-A00 / PISTON SET (STD) (B)

4 $68.58 $49.38
1 13010-5A2-A00 13010-5A2-A00 / PISTON SET (STD) (A)

4 $68.58 $49.38
2 13011-5A2-A11 13011-5A2-A11 / RING SET, PISTON (STD) (RIKEN)

4 $53.38 $38.44
2 13021-5A2-A11 13021-5A2-A11 / RING SET, PISTON (OVER SIZE) (0.25) (RIKEN)

0 $53.38 $38.44
3 13111-RAA-A00 13111-RAA-A00 / PIN, PISTON

4 $11.42 $8.22
4 13115-PRB-A00 13115-PRB-A00 / CLIP, PISTON PIN

8 $2.43 $1.75
5 13204-RBB-004 13204-RBB-004 / BOLT, CONNECTING ROD

8 $8.05 $5.80
6 13210-5A2-A00 13210-5A2-A00 / ROD, CONNECTING

4 $207.70 $149.54
7 13212-5A2-A01 13212-5A2-A01 / BEARING B, CONNECTING ROD (BLACK) (DAIDO)

8 $14.17 $10.20
7 13216-5A2-A01 13216-5A2-A01 / BEARING, CONNECTING ROD (F)(PINK) (DAIDO)

8 $12.43 $8.95
7 13215-5A2-A01 13215-5A2-A01 / BEARING E, CONNECTING ROD (YELLOW) (DAIDO)

8 $14.17 $10.20
7 13214-5A2-A01 13214-5A2-A01 / BEARING D, CONNECTING ROD (GREEN) (DAIDO)

8 $14.17 $10.20
7 13217-5A2-A01 13217-5A2-A01 / BEARING G, CONNECTING ROD (RED) (DAIDO)

8 $12.43 $8.95
7 13213-5A2-A01 13213-5A2-A01 / BEARING C, CONNECTING ROD (BROWN) (DAIDO)

8 $14.17 $10.20
8 13310-5A2-A10 13310-5A2-A10 / CRANKSHAFT

1 $344.46 $268.68
9 13326-5A2-A01 13326-5A2-A01 / BEARING F, MAIN (UPPER) (PINK)(TAIHO)

5 $3.27 $2.35
9 13325-5A2-A01 13325-5A2-A01 / BEARING E, MAIN (UPPER) (YELLOW) (TAIHO)

5 $3.27 $2.35
9 13322-5A2-A01 13322-5A2-A01 / BEARING B, MAIN (UPPER) (BLACK) (TAIHO)

5 $3.27 $2.35
9 13324-5A2-A01 13324-5A2-A01 / BEARING D, MAIN (UPPER) (GREEN) (TAIHO)

5 $3.27 $2.35
9 13323-5A2-A01 13323-5A2-A01 / BEARING C, MAIN (UPPER) (BROWN) (TAIHO)

5 $3.27 $2.35
9 13321-5A2-A01 13321-5A2-A01 / BEARING A, MAIN (UPPER) (BLUE)(TAIHO)

5 $3.27 $2.35
10 13331-5A2-A01 13331-5A2-A01 / WASHER, THRUST

2 $9.07 $6.53
11 13344-5A2-A01 13344-5A2-A01 / BEARING D, MAIN (LOWER) (GREEN) (TAIHO)

5 $3.10 $2.23
11 13343-5A2-A01 13343-5A2-A01 / BEARING C, MAIN (LOWER) (BROWN) (TAIHO)

5 $3.10 $2.23
11 13342-5A2-A01 13342-5A2-A01 / BEARING B, MAIN (LOWER) (BLACK) (TAIHO)

5 $3.10 $2.23
11 13346-5A2-A01 13346-5A2-A01 / BEARING F, MAIN (LOWER) (PINK)(TAIHO)

5 $3.10 $2.23
11 13345-5A2-A01 13345-5A2-A01 / BEARING E, MAIN (LOWER) (YELLOW) (TAIHO)

5 $3.10 $2.23
11 13341-5A2-A01 13341-5A2-A01 / BEARING A, MAIN (LOWER) (BLUE)(TAIHO)

5 $3.10 $2.23
12 13620-5A2-A01 13620-5A2-A01 / SPROCKET, CHAIN DRIVE

1 $75.58 $54.42
13 13622-5A2-A01 13622-5A2-A01 / PLATE, CRANK PULSER

1 $8.23 $5.93
14 13623-R40-A01 13623-R40-A01 / SPACER A

1 $3.50 $2.52
15 13810-5A2-A01 13810-5A2-A01 / PULLEY, CRANKSHAFT

1 $65.27 $46.99
16 90013-R70-A01 90013-R70-A01 / BOLT, SPECIAL (8X11)

3 $0.85 $0.61
17 90017-PCX-013 90017-PCX-013 / BOLT-WASHER (16X49)

1 $13.60 $9.79
18 90704-PNA-000 90704-PNA-000 / KEY (4.5X21)

1 $2.92 $2.10
