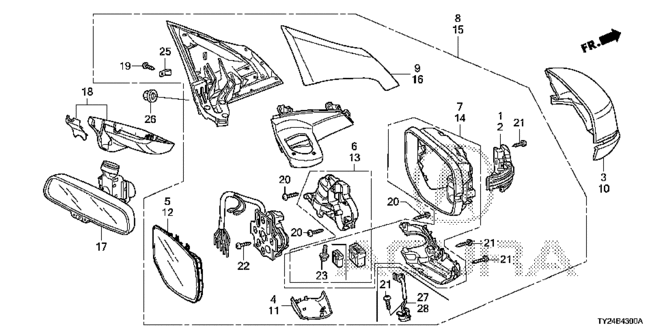

MIRROR ASSY., L. DOOR *NH789M*(COO) (FORGED SILVER METALLIC II) in INTERIOR / BUMPER/MIRROR for 2014 Acura RLX

MIRROR ASSY., L. DOOR *NH789M*(COO) (FORGED SILVER METALLIC II) in INTERIOR / BUMPER/MIRROR for 2014 Acura RLX #1
10
  • CAP, L. SKULL *NH789M* (FORGED SILVER METALLIC II) - $104.08
  • CAP, L. SKULL *NH731P* (CRYSTAL BLACK PEARL) - $104.08
  • CAP, L. SKULL *NH700M* (ALABASTER SILVER METALLIC) - $104.08
  • CAP, L. SKULL *NH782M* (GRAPHITE LUSTER METALLIC) - $104.08
  • CAP, L. SKULL *NH788P* (BELLANOVA WHITE PEARL) - $104.08
7
  • HOUSING SET, R. *NH782M* (GRAPHITE LUSTER METALLIC) - $82.25
  • HOUSING SET, R. *NH731P* (CRYSTAL BLACK PEARL) - $82.25
  • HOUSING SET, R. *NH788P* (BELLANOVA WHITE PEARL) - $82.25
  • HOUSING SET, R. *NH700M* (ALABASTER SILVER METALLIC) - $82.25
  • HOUSING SET, R. *NH789M* (FORGED SILVER METALLIC II) - $82.25
20
  • SCREW, TAPPING (4X16) (TRUSS) - $1.56
2
  • LIGHT ASSY., L. SIDE TURN - $65.67
20
  • SCREW, TAPPING (4X16) (TRUSS) - $1.56
3
  • CAP, R. SKULL *NH731P* (CRYSTAL BLACK PEARL) - $104.08
  • CAP, R. SKULL *NH789M* (FORGED SILVER METALLIC II) - $104.08
  • CAP, R. SKULL *NH788P* (BELLANOVA WHITE PEARL) - $104.08
  • CAP, R. SKULL *NH782M* (GRAPHITE LUSTER METALLIC) - $104.08
  • CAP, R. SKULL *NH700M* (ALABASTER SILVER METALLIC) - $104.08
15
  • MIRROR ASSY., L. DOOR *NH731P*(COO) (CRYSTAL BLACK PEARL) - $514.28
  • MIRROR ASSY., L. DOOR *NH700M*(COO) (ALABASTER SILVER METALLIC) - $514.28
  • MIRROR ASSY., L. DOOR *NH788P*(COO) (BELLANOVA WHITE PEARL) - $514.28
  • MIRROR ASSY., L. DOOR *NH789M*(COO) (FORGED SILVER METALLIC II) - $514.28
  • MIRROR ASSY., L. DOOR *NH782M*(COO) (GRAPHITE LUSTER METALLIC) - $514.28
13
  • TURN SET, L. AUTO - $86.76
16
  • BASE, L. (UPPER) (OUTER) *NH555* (BLACK GLOSS 80) - $15.41
8
  • MIRROR ASSY., R. DOOR *NH788P*(COO) (BELLANOVA WHITE PEARL) - $514.28
  • MIRROR ASSY., R. DOOR *NH700M*(COO) (ALABASTER SILVER METALLIC) - $514.28
  • MIRROR ASSY., R. DOOR *NH789M*(COO) (FORGED SILVER METALLIC II) - $514.28
  • MIRROR ASSY., R. DOOR *NH782M*(COO) (GRAPHITE LUSTER METALLIC) - $514.28
  • MIRROR ASSY., R. DOOR *NH731P*(COO) (CRYSTAL BLACK PEARL) - $514.28
21
  • SCREW, TAPPING (4X14) (TRUSS) - $1.22
11
  • COVER, L. BASE *NH782M* (GRAPHITE LUSTER METALLIC) - $9.57
  • COVER, L. BASE *NH789M* (FORGED SILVER METALLIC II) - $9.57
  • COVER, L. BASE *NH700M* (ALABASTER SILVER METALLIC) - $9.57
  • COVER, L. BASE *NH788P* (BELLANOVA WHITE PEARL) - $9.57
  • COVER, L. BASE *NH731P* (CRYSTAL BLACK PEARL) - $9.57
14
  • HOUSING SET, L. *NH731P* (CRYSTAL BLACK PEARL) - $82.25
  • HOUSING SET, L. *NH700M* (ALABASTER SILVER METALLIC) - $82.25
  • HOUSING SET, L. *NH782M* (GRAPHITE LUSTER METALLIC) - $82.25
  • HOUSING SET, L. *NH788P* (BELLANOVA WHITE PEARL) - $82.25
  • HOUSING SET, L. *NH789M* (FORGED SILVER METALLIC II) - $82.25
1
  • LIGHT ASSY., R. SIDE TURN - $65.67
4
  • COVER, R. BASE *NH782M* (GRAPHITE LUSTER METALLIC) - $9.57
  • COVER, R. BASE *NH731P* (CRYSTAL BLACK PEARL) - $9.57
  • COVER, R. BASE *NH788P* (BELLANOVA WHITE PEARL) - $9.57
  • COVER, R. BASE *NH789M* (FORGED SILVER METALLIC II) - $9.57
  • COVER, R. BASE *NH700M* (ALABASTER SILVER METALLIC) - $9.57
21
  • SCREW, TAPPING (4X14) (TRUSS) - $1.22
18
  • COVER ASSY., SENSOR (FCW) - $17.08
22
  • SCREW, TAPPING (4X14) - $1.18
26
  • NUT, FLANGE (6MM) - $0.19
21
  • SCREW, TAPPING (4X14) (TRUSS) - $1.22
6
  • TURN SET, R. AUTO - $86.76
17
  • MIRROR ASSY., REARVIEW (AUTO DAY/NIGHT) - $442.47
20
  • SCREW, TAPPING (4X16) (TRUSS) - $1.56
23
  • SCREW-WASHER (5X12) - $1.29
25
  • CLAMP, HARNESS - $1.64
12
  • MIRROR SUB-ASSY., L. (COO) - $59.55
19
  • SCREW, TAPPING (4X12) (TRUSS) - $1.08
21
  • SCREW, TAPPING (4X14) (TRUSS) - $1.22
5
  • MIRROR SUB-ASSY., R. (COO) - $59.55
9
  • BASE, R. (UPPER) (OUTER) *NH555* (BLACK GLOSS 80) - $15.41
No. Part # Part # / Description Qty Req. List Price Price
1 34300-TY2-A01 34300-TY2-A01 / LIGHT ASSY., R. SIDE TURN

1 $79.12 $65.67
2 34350-TY2-A01 34350-TY2-A01 / LIGHT ASSY., L. SIDE TURN

1 $79.12 $65.67
3 76201-TY2-A01ZF 76201-TY2-A01ZF / CAP, R. SKULL *NH731P* (CRYSTAL BLACK PEARL)

1 $125.40 $104.08
3 76201-TY2-A01ZC 76201-TY2-A01ZC / CAP, R. SKULL *NH789M* (FORGED SILVER METALLIC II)

1 $125.40 $104.08
3 76201-TY2-A01ZD 76201-TY2-A01ZD / CAP, R. SKULL *NH788P* (BELLANOVA WHITE PEARL)

1 $125.40 $104.08
3 76201-TY2-A01ZE 76201-TY2-A01ZE / CAP, R. SKULL *NH782M* (GRAPHITE LUSTER METALLIC)

1 $125.40 $104.08
3 76201-TY2-A01ZG 76201-TY2-A01ZG / CAP, R. SKULL *NH700M* (ALABASTER SILVER METALLIC)

1 $125.40 $104.08
4 76202-TY2-A01ZE 76202-TY2-A01ZE / COVER, R. BASE *NH782M* (GRAPHITE LUSTER METALLIC)

1 $11.53 $9.57
4 76202-TY2-A01ZF 76202-TY2-A01ZF / COVER, R. BASE *NH731P* (CRYSTAL BLACK PEARL)

1 $11.53 $9.57
4 76202-TY2-A01ZD 76202-TY2-A01ZD / COVER, R. BASE *NH788P* (BELLANOVA WHITE PEARL)

1 $11.53 $9.57
4 76202-TY2-A01ZC 76202-TY2-A01ZC / COVER, R. BASE *NH789M* (FORGED SILVER METALLIC II)

1 $11.53 $9.57
4 76202-TY2-A01ZG 76202-TY2-A01ZG / COVER, R. BASE *NH700M* (ALABASTER SILVER METALLIC)

1 $11.53 $9.57
5 76203-TY2-305 76203-TY2-305 / MIRROR SUB-ASSY., R. (COO)

1 $71.75 $59.55
6 76204-TY2-A21 76204-TY2-A21 / TURN SET, R. AUTO

1 $104.53 $86.76
7 76205-TY2-A01ZE 76205-TY2-A01ZE / HOUSING SET, R. *NH782M* (GRAPHITE LUSTER METALLIC)

1 $99.10 $82.25
7 76205-TY2-A01ZF 76205-TY2-A01ZF / HOUSING SET, R. *NH731P* (CRYSTAL BLACK PEARL)

1 $99.10 $82.25
7 76205-TY2-A01ZD 76205-TY2-A01ZD / HOUSING SET, R. *NH788P* (BELLANOVA WHITE PEARL)

1 $99.10 $82.25
7 76205-TY2-A01ZG 76205-TY2-A01ZG / HOUSING SET, R. *NH700M* (ALABASTER SILVER METALLIC)

1 $99.10 $82.25
7 76205-TY2-A01ZC 76205-TY2-A01ZC / HOUSING SET, R. *NH789M* (FORGED SILVER METALLIC II)

1 $99.10 $82.25
8 76208-TY2-307ZD 76208-TY2-307ZD / MIRROR ASSY., R. DOOR *NH788P*(COO) (BELLANOVA WHITE PEARL)

1 $619.62 $514.28
8 76208-TY2-307ZG 76208-TY2-307ZG / MIRROR ASSY., R. DOOR *NH700M*(COO) (ALABASTER SILVER METALLIC)

1 $619.62 $514.28
8 76208-TY2-307ZC 76208-TY2-307ZC / MIRROR ASSY., R. DOOR *NH789M*(COO) (FORGED SILVER METALLIC II)

1 $619.62 $514.28
8 76208-TY2-307ZE 76208-TY2-307ZE / MIRROR ASSY., R. DOOR *NH782M*(COO) (GRAPHITE LUSTER METALLIC)

1 $619.62 $514.28
8 76208-TY2-307ZF 76208-TY2-307ZF / MIRROR ASSY., R. DOOR *NH731P*(COO) (CRYSTAL BLACK PEARL)

1 $619.62 $514.28
9 76209-TY2-A01ZA 76209-TY2-A01ZA / BASE, R. (UPPER) (OUTER) *NH555* (BLACK GLOSS 80)

1 $18.57 $15.41
10 76251-TY2-A01ZC 76251-TY2-A01ZC / CAP, L. SKULL *NH789M* (FORGED SILVER METALLIC II)

1 $125.40 $104.08
10 76251-TY2-A01ZF 76251-TY2-A01ZF / CAP, L. SKULL *NH731P* (CRYSTAL BLACK PEARL)

1 $125.40 $104.08
10 76251-TY2-A01ZG 76251-TY2-A01ZG / CAP, L. SKULL *NH700M* (ALABASTER SILVER METALLIC)

1 $125.40 $104.08
10 76251-TY2-A01ZE 76251-TY2-A01ZE / CAP, L. SKULL *NH782M* (GRAPHITE LUSTER METALLIC)

1 $125.40 $104.08
10 76251-TY2-A01ZD 76251-TY2-A01ZD / CAP, L. SKULL *NH788P* (BELLANOVA WHITE PEARL)

1 $125.40 $104.08
11 76252-TY2-A01ZE 76252-TY2-A01ZE / COVER, L. BASE *NH782M* (GRAPHITE LUSTER METALLIC)

1 $11.53 $9.57
11 76252-TY2-A01ZC 76252-TY2-A01ZC / COVER, L. BASE *NH789M* (FORGED SILVER METALLIC II)

1 $11.53 $9.57
11 76252-TY2-A01ZG 76252-TY2-A01ZG / COVER, L. BASE *NH700M* (ALABASTER SILVER METALLIC)

1 $11.53 $9.57
11 76252-TY2-A01ZD 76252-TY2-A01ZD / COVER, L. BASE *NH788P* (BELLANOVA WHITE PEARL)

1 $11.53 $9.57
11 76252-TY2-A01ZF 76252-TY2-A01ZF / COVER, L. BASE *NH731P* (CRYSTAL BLACK PEARL)

1 $11.53 $9.57
12 76253-TY2-305 76253-TY2-305 / MIRROR SUB-ASSY., L. (COO)

1 $71.75 $59.55
13 76254-TY2-A21 76254-TY2-A21 / TURN SET, L. AUTO

1 $104.53 $86.76
14 76255-TY2-A01ZF 76255-TY2-A01ZF / HOUSING SET, L. *NH731P* (CRYSTAL BLACK PEARL)

1 $99.10 $82.25
14 76255-TY2-A01ZG 76255-TY2-A01ZG / HOUSING SET, L. *NH700M* (ALABASTER SILVER METALLIC)

1 $99.10 $82.25
14 76255-TY2-A01ZE 76255-TY2-A01ZE / HOUSING SET, L. *NH782M* (GRAPHITE LUSTER METALLIC)

1 $99.10 $82.25
14 76255-TY2-A01ZD 76255-TY2-A01ZD / HOUSING SET, L. *NH788P* (BELLANOVA WHITE PEARL)

1 $99.10 $82.25
14 76255-TY2-A01ZC 76255-TY2-A01ZC / HOUSING SET, L. *NH789M* (FORGED SILVER METALLIC II)

1 $99.10 $82.25
15 76258-TY2-307ZF 76258-TY2-307ZF / MIRROR ASSY., L. DOOR *NH731P*(COO) (CRYSTAL BLACK PEARL)

1 $619.62 $514.28
15 76258-TY2-307ZG 76258-TY2-307ZG / MIRROR ASSY., L. DOOR *NH700M*(COO) (ALABASTER SILVER METALLIC)

1 $619.62 $514.28
15 76258-TY2-307ZD 76258-TY2-307ZD / MIRROR ASSY., L. DOOR *NH788P*(COO) (BELLANOVA WHITE PEARL)

1 $619.62 $514.28
15 76258-TY2-307ZC 76258-TY2-307ZC / MIRROR ASSY., L. DOOR *NH789M*(COO) (FORGED SILVER METALLIC II)

1 $619.62 $514.28
15 76258-TY2-307ZE 76258-TY2-307ZE / MIRROR ASSY., L. DOOR *NH782M*(COO) (GRAPHITE LUSTER METALLIC)

1 $619.62 $514.28
16 76259-TY2-A01ZA 76259-TY2-A01ZA / BASE, L. (UPPER) (OUTER) *NH555* (BLACK GLOSS 80)

1 $18.57 $15.41
17 76400-TY2-A01 76400-TY2-A01 / MIRROR ASSY., REARVIEW (AUTO DAY/NIGHT)

1 $533.10 $442.47
18 76410-TY2-A21 76410-TY2-A21 / COVER ASSY., SENSOR (FCW)

1 $20.58 $17.08
19 90106-S70-003 90106-S70-003 / SCREW, TAPPING (4X12) (TRUSS)

14 $1.30 $1.08
20 90109-S70-003 90109-S70-003 / SCREW, TAPPING (4X16) (TRUSS)

6 $1.88 $1.56
21 90109-SAG-H01 90109-SAG-H01 / SCREW, TAPPING (4X14) (TRUSS)

8 $1.47 $1.22
22 90109-SDF-003 90109-SDF-003 / SCREW, TAPPING (4X14)

8 $1.42 $1.18
23 90109-TA0-003 90109-TA0-003 / SCREW-WASHER (5X12)

6 $1.55 $1.29
25 91565-SEA-003 91565-SEA-003 / CLAMP, HARNESS

2 $1.98 $1.64
26 94050-06080 94050-06080 / NUT, FLANGE (6MM)

6 $0.23 $0.19
