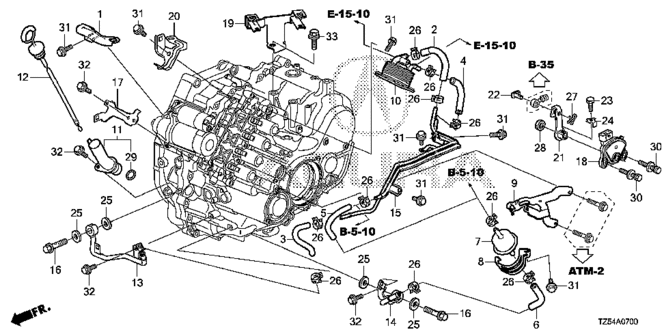

WARMER (ATF) in TRANSMISSION - AUTOMATIC/AT OIL LEVEL GAUGE - ATF PIPE - ATF WARMER for 2014 Acura MDX

WARMER (ATF) in TRANSMISSION - AUTOMATIC/AT OIL LEVEL GAUGE - ATF PIPE - ATF WARMER for 2014 Acura MDX #1
26
  • CLIP, OIL PIPE - $1.12
24
  • WASHER, LOCK (6MM) - $2.56
21
  • LEVER, CONTROL - $15.21
26
  • CLIP, OIL PIPE - $1.12
26
  • CLIP, OIL PIPE - $1.12
30
  • BOLT-WASHER (6X25) - $1.00
32
  • BOLT, FLANGE (6X14) - $0.73
25
  • WASHER, DRAIN PLUG (12MM) - $1.45
26
  • CLIP, OIL PIPE - $1.12
26
  • CLIP, OIL PIPE - $1.12
25
  • WASHER, DRAIN PLUG (12MM) - $1.45
9
  • STAY B, FILTER (ATF) - $10.23
1
  • BRACKET, WATER HOSE - $1.85
11
  • PIPE ASSY., GAUGE (ATF) - $21.76
15
  • PIPE D (ATF) - $23.17
7
  • FILTER (ATF) - $21.87
23
  • BOLT, HEX. (6MM) - $3.30
31
  • BOLT, FLANGE (6X12) - $0.83
30
  • BOLT-WASHER (6X25) - $1.00
4
  • HOSE (ATF) - $7.98
26
  • CLIP, OIL PIPE - $1.12
10
  • WARMER (ATF) - $186.06
5
  • HOSE (185MM) (ATF) - $7.14
26
  • CLIP, OIL PIPE - $1.12
2
  • HOSE (150MM) (ATF) - $7.20
31
  • BOLT, FLANGE (6X12) - $0.83
26
  • CLIP, OIL PIPE - $1.12
16
  • BOLT, JOINT - $6.89
31
  • BOLT, FLANGE (6X12) - $0.83
31
  • BOLT, FLANGE (6X12) - $0.83
12
  • DIPSTICK (ATF) - $11.64
31
  • BOLT, FLANGE (6X12) - $0.83
32
  • BOLT, FLANGE (6X14) - $0.73
26
  • CLIP, OIL PIPE - $1.12
32
  • BOLT, FLANGE (6X14) - $0.73
31
  • BOLT, FLANGE (6X12) - $0.83
13
  • PIPE A (ATF) - $33.86
22
  • PIN, CONTROL WIRE - $5.42
6
  • HOSE (120MM) (ATF) - $7.69
16
  • BOLT, JOINT - $6.89
25
  • WASHER, DRAIN PLUG (12MM) - $1.45
3
  • HOSE (ATF) - $17.35
29
  • O-RING (19.20X1.90) (NOK) - $1.76
31
  • BOLT, FLANGE (6X12) - $0.83
8
  • STAY A, FILTER (ATF) - $4.69
17
  • STAY, ENGINE HARNESS - $4.07
27
  • PIN, LOCK (8MM) - $2.27
18
  • SENSOR ASSY., POSITION - $67.04
14
  • PIPE B (ATF) - $18.24
32
  • BOLT, FLANGE (6X14) - $0.73
28
  • OIL SEAL (12X22X7) (ARAI) - $5.17
19
  • STAY, TRANSMISSION HARNESS - $7.24
25
  • WASHER, DRAIN PLUG (12MM) - $1.45
20
  • STAY B, ENGINE WIRE HARNESS - $3.05
26
  • CLIP, OIL PIPE - $1.12
33
  • BOLT, FLANGE (12X20) - $1.15
No. Part # Part # / Description Qty Req. List Price Price
1 19518-5J6-A00 19518-5J6-A00 / BRACKET, WATER HOSE

1 $2.23 $1.85
2 25211-RPC-003 25211-RPC-003 / HOSE (150MM) (ATF)

1 $8.67 $7.20
3 25214-5B7-007 25214-5B7-007 / HOSE (ATF)

1 $20.90 $17.35
4 25215-5B7-007 25215-5B7-007 / HOSE (ATF)

1 $9.62 $7.98
5 25215-RJA-007 25215-RJA-007 / HOSE (185MM) (ATF)

1 $8.60 $7.14
6 25216-RL0-007 25216-RL0-007 / HOSE (120MM) (ATF)

1 $9.27 $7.69
7 25430-PLR-003 25430-PLR-003 / FILTER (ATF)

1 $26.35 $21.87
8 25431-5B7-000 25431-5B7-000 / STAY A, FILTER (ATF)

1 $5.65 $4.69
9 25432-5B7-000 25432-5B7-000 / STAY B, FILTER (ATF)

1 $12.32 $10.23
10 25560-5B7-A01 25560-5B7-A01 / WARMER (ATF)

1 $224.17 $186.06
11 25600-5B7-000 25600-5B7-000 / PIPE ASSY., GAUGE (ATF)

1 $26.22 $21.76
12 25610-5B7-013 25610-5B7-013 / DIPSTICK (ATF)

1 $14.03 $11.64
13 25910-R8B-000 25910-R8B-000 / PIPE A (ATF)

1 $40.80 $33.86
14 25920-RT4-000 25920-RT4-000 / PIPE B (ATF)

1 $21.97 $18.24
15 25945-5B7-000 25945-5B7-000 / PIPE D (ATF)

1 $27.92 $23.17
16 25951-RGR-000 25951-RGR-000 / BOLT, JOINT

2 $8.30 $6.89
17 27760-5B7-000 27760-5B7-000 / STAY, ENGINE HARNESS

1 $4.90 $4.07
18 28900-RT4-003 28900-RT4-003 / SENSOR ASSY., POSITION

1 $80.77 $67.04
19 32741-5J6-A50 32741-5J6-A50 / STAY, TRANSMISSION HARNESS

1 $8.72 $7.24
20 32742-RYE-A70 32742-RYE-A70 / STAY B, ENGINE WIRE HARNESS

1 $3.67 $3.05
21 54313-STX-A80 54313-STX-A80 / LEVER, CONTROL

1 $18.33 $15.21
22 54314-T2A-A90 54314-T2A-A90 / PIN, CONTROL WIRE

1 $6.53 $5.42
23 90001-PA9-000 90001-PA9-000 / BOLT, HEX. (6MM)

1 $3.97 $3.30
24 90433-P0G-000 90433-P0G-000 / WASHER, LOCK (6MM)

1 $3.08 $2.56
25 90471-RGR-000 90471-RGR-000 / WASHER, DRAIN PLUG (12MM)

4 $1.75 $1.45
26 90635-RV0-003 90635-RV0-003 / CLIP, OIL PIPE

10 $1.35 $1.12
27 90751-T2A-A91 90751-T2A-A91 / PIN, LOCK (8MM)

1 $2.73 $2.27
28 91209-612-003 91209-612-003 / OIL SEAL (12X22X7) (ARAI)

1 $6.23 $5.17
29 91301-P7X-003 91301-P7X-003 / O-RING (19.20X1.90) (NOK)

1 $2.12 $1.76
30 93403-06025-08 93403-06025-08 / BOLT-WASHER (6X25)

2 $1.20 $1.00
31 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

9 $1.00 $0.83
32 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

4 $0.88 $0.73
33 95701-12020-08 95701-12020-08 / BOLT, FLANGE (12X20)

1 $1.38 $1.15
