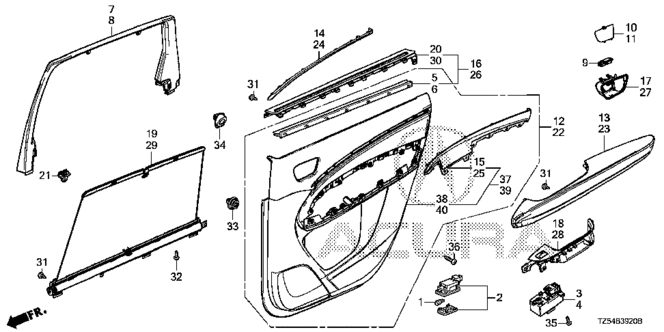

LINING, R. RR. DOOR ASSY. (LOWER) *NH802L* (LIGHT JEWEL GRAY) in INTERIOR / BUMPER/REAR DOOR LINING for 2014 Acura MDX

LINING, R. RR. DOOR ASSY. (LOWER) *NH802L* (LIGHT JEWEL GRAY) in INTERIOR / BUMPER/REAR DOOR LINING for 2014 Acura MDX #1
3
  • SWITCH ASSY., RR. POWER WINDOW - $54.30
2
  • LENS - $22.68
1
  • BULB, WEDGE (12V 3.4W) - $3.82
31
  • SCREW, TAPPING (4X12) - $2.09
33
  • CLIP, DOOR LINING (APPLE GREEN) - $0.21
12
  • LINING, R. RR. DOOR ASSY. (LOWER) *G75L* (EUCALYPTUS) - $217.94
  • LINING, R. RR. DOOR ASSY. (LOWER) *YR436L* (SANDSTORM) - $217.94
  • LINING, R. RR. DOOR ASSY. (LOWER) *NH802L* (LIGHT JEWEL GRAY) - $217.94
  • LINING, R. RR. DOOR ASSY. (LOWER) *NH690L* (PREMIUM BLACK) - $217.94
34
  • GROMMET, SCREW (5.23) - $5.31
4
  • SWITCH ASSY., RR. POWER WINDOW - $54.30
8
  • GARNISH, L. RR. DOOR SASH (INNER) *NH690L* (PREMIUM BLACK) - $29.12
7
  • GARNISH, R. RR. DOOR SASH (INNER) *NH690L* (PREMIUM BLACK) - $29.12
23
  • ARMREST ASSY., L. RR. DOOR LINING *G75L* (EUCALYPTUS) - $58.43
  • ARMREST ASSY., L. RR. DOOR LINING *YR436L* (SANDSTORM) - $58.43
  • ARMREST ASSY., L. RR. DOOR LINING *NH802L* (LIGHT JEWEL GRAY) - $58.43
  • ARMREST ASSY., L. RR. DOOR LINING *NH690L* (PREMIUM BLACK) - $58.43
36
  • SCREW, TAPPING (5X25) - $0.56
18
  • PANEL, R. SWITCH *NH690L* (PREMIUM BLACK) - $23.51
9
  • LIGHT ASSY., AMBIENT - $15.59
13
  • ARMREST ASSY., R. RR. DOOR LINING *G75L* (EUCALYPTUS) - $58.43
  • ARMREST ASSY., R. RR. DOOR LINING *YR436L* (SANDSTORM) - $58.43
  • ARMREST ASSY., R. RR. DOOR LINING *NH802L* (LIGHT JEWEL GRAY) - $58.43
  • ARMREST ASSY., R. RR. DOOR LINING *NH690L* (PREMIUM BLACK) - $58.43
35
  • SCREW, TAPPING (3X10) - $0.46
31
  • SCREW, TAPPING (4X12) - $2.09
10
  • CAP, R. HANDLE (INNER) *NH690L* (PREMIUM BLACK) - $10.52
6
  • WEATHERSTRIP, L. RR. DOOR (INNER) - $7.95
14
  • PANEL ASSY., R. RR. DOOR LINING TRIM (UPPER) *NH772X* (PLATINUM CHROME PLATING) - $56.36
11
  • CAP, L. HANDLE (INNER) *NH690L* (PREMIUM BLACK) - $10.52
5
  • WEATHERSTRIP, R. RR. DOOR (INNER) - $7.95
28
  • PANEL, L. SWITCH *NH690L* (PREMIUM BLACK) - $23.51
22
  • LINING, L. RR. DOOR ASSY. (LOWER) *G75L* (EUCALYPTUS) - $217.94
  • LINING, L. RR. DOOR ASSY. (LOWER) *YR436L* (SANDSTORM) - $217.94
  • LINING, L. RR. DOOR ASSY. (LOWER) *NH802L* (LIGHT JEWEL GRAY) - $217.94
  • LINING, L. RR. DOOR ASSY. (LOWER) *NH690L* (PREMIUM BLACK) - $217.94
31
  • SCREW, TAPPING (4X12) - $2.09
24
  • PANEL ASSY., L. RR. DOOR LINING TRIM (UPPER) *NH772X* (PLATINUM CHROME PLATING) - $56.36
27
  • GARNISH, L. HANDLE (INNER) *NH690L* (PREMIUM BLACK) - $32.32
17
  • GARNISH, R. HANDLE (INNER) *NH690L* (PREMIUM BLACK) - $32.32
No. Part # Part # / Description Qty Req. List Price Price
1 34253-SNA-003 34253-SNA-003 / BULB, WEDGE (12V 3.4W)

2 $4.60 $3.82
2 34257-SNB-003 34257-SNB-003 / LENS

2 $27.32 $22.68
3 35770-TZ6-H01 35770-TZ6-H01 / SWITCH ASSY., RR. POWER WINDOW

1 $65.42 $54.30
4 35780-TZ6-H01 35780-TZ6-H01 / SWITCH ASSY., RR. POWER WINDOW

1 $65.42 $54.30
5 72835-TZ5-A11 72835-TZ5-A11 / WEATHERSTRIP, R. RR. DOOR (INNER)

1 $9.58 $7.95
6 72875-TZ5-A11 72875-TZ5-A11 / WEATHERSTRIP, L. RR. DOOR (INNER)

1 $9.58 $7.95
7 72942-TZ5-A01ZB 72942-TZ5-A01ZB / GARNISH, R. RR. DOOR SASH (INNER) *NH690L* (PREMIUM BLACK)

1 $35.09 $29.12
8 72982-TZ5-A01ZB 72982-TZ5-A01ZB / GARNISH, L. RR. DOOR SASH (INNER) *NH690L* (PREMIUM BLACK)

1 $35.09 $29.12
9 83506-TZ5-A51 83506-TZ5-A51 / LIGHT ASSY., AMBIENT

2 $18.78 $15.59
10 83512-TZ5-A00ZB 83512-TZ5-A00ZB / CAP, R. HANDLE (INNER) *NH690L* (PREMIUM BLACK)

1 $12.67 $10.52
11 83562-TZ5-A00ZB 83562-TZ5-A00ZB / CAP, L. HANDLE (INNER) *NH690L* (PREMIUM BLACK)

1 $12.67 $10.52
12 83701-TZ5-A01ZD 83701-TZ5-A01ZD / LINING, R. RR. DOOR ASSY. (LOWER) *G75L* (EUCALYPTUS)

1 $262.58 $217.94
12 83701-TZ5-A01ZA 83701-TZ5-A01ZA / LINING, R. RR. DOOR ASSY. (LOWER) *YR436L* (SANDSTORM)

1 $262.58 $217.94
12 83701-TZ5-A01ZB 83701-TZ5-A01ZB / LINING, R. RR. DOOR ASSY. (LOWER) *NH802L* (LIGHT JEWEL GRAY)

1 $262.58 $217.94
12 83701-TZ5-A01ZC 83701-TZ5-A01ZC / LINING, R. RR. DOOR ASSY. (LOWER) *NH690L* (PREMIUM BLACK)

1 $262.58 $217.94
13 83702-TZ5-A01ZD 83702-TZ5-A01ZD / ARMREST ASSY., R. RR. DOOR LINING *G75L* (EUCALYPTUS)

1 $70.40 $58.43
13 83702-TZ5-A01ZA 83702-TZ5-A01ZA / ARMREST ASSY., R. RR. DOOR LINING *YR436L* (SANDSTORM)

1 $70.40 $58.43
13 83702-TZ5-A01ZB 83702-TZ5-A01ZB / ARMREST ASSY., R. RR. DOOR LINING *NH802L* (LIGHT JEWEL GRAY)

1 $70.40 $58.43
13 83702-TZ5-A01ZC 83702-TZ5-A01ZC / ARMREST ASSY., R. RR. DOOR LINING *NH690L* (PREMIUM BLACK)

1 $70.40 $58.43
14 83703-TZ5-A01ZE 83703-TZ5-A01ZE / PANEL ASSY., R. RR. DOOR LINING TRIM (UPPER) *NH772X* (PLATINUM CHROME PLATING)

1 $67.90 $56.36
17 83705-TZ5-A61ZD 83705-TZ5-A61ZD / GARNISH, R. HANDLE (INNER) *NH690L* (PREMIUM BLACK)

1 $38.94 $32.32
18 83710-TZ5-A01ZA 83710-TZ5-A01ZA / PANEL, R. SWITCH *NH690L* (PREMIUM BLACK)

1 $28.33 $23.51
22 83751-TZ5-A01ZD 83751-TZ5-A01ZD / LINING, L. RR. DOOR ASSY. (LOWER) *G75L* (EUCALYPTUS)

1 $262.58 $217.94
22 83751-TZ5-A01ZA 83751-TZ5-A01ZA / LINING, L. RR. DOOR ASSY. (LOWER) *YR436L* (SANDSTORM)

1 $262.58 $217.94
22 83751-TZ5-A01ZB 83751-TZ5-A01ZB / LINING, L. RR. DOOR ASSY. (LOWER) *NH802L* (LIGHT JEWEL GRAY)

1 $262.58 $217.94
22 83751-TZ5-A01ZC 83751-TZ5-A01ZC / LINING, L. RR. DOOR ASSY. (LOWER) *NH690L* (PREMIUM BLACK)

1 $262.58 $217.94
23 83752-TZ5-A01ZD 83752-TZ5-A01ZD / ARMREST ASSY., L. RR. DOOR LINING *G75L* (EUCALYPTUS)

1 $70.40 $58.43
23 83752-TZ5-A01ZA 83752-TZ5-A01ZA / ARMREST ASSY., L. RR. DOOR LINING *YR436L* (SANDSTORM)

1 $70.40 $58.43
23 83752-TZ5-A01ZB 83752-TZ5-A01ZB / ARMREST ASSY., L. RR. DOOR LINING *NH802L* (LIGHT JEWEL GRAY)

1 $70.40 $58.43
23 83752-TZ5-A01ZC 83752-TZ5-A01ZC / ARMREST ASSY., L. RR. DOOR LINING *NH690L* (PREMIUM BLACK)

1 $70.40 $58.43
24 83753-TZ5-A01ZE 83753-TZ5-A01ZE / PANEL ASSY., L. RR. DOOR LINING TRIM (UPPER) *NH772X* (PLATINUM CHROME PLATING)

1 $67.90 $56.36
27 83755-TZ5-A61ZD 83755-TZ5-A61ZD / GARNISH, L. HANDLE (INNER) *NH690L* (PREMIUM BLACK)

1 $38.94 $32.32
28 83760-TZ5-A01ZA 83760-TZ5-A01ZA / PANEL, L. SWITCH *NH690L* (PREMIUM BLACK)

1 $28.33 $23.51
31 90132-SE3-003 90132-SE3-003 / SCREW, TAPPING (4X12)

0 $2.52 $2.09
33 91560-SZW-003 91560-SZW-003 / CLIP, DOOR LINING (APPLE GREEN)

20 $0.25 $0.21
34 91561-S5P-A01 91561-S5P-A01 / GROMMET, SCREW (5.23)

2 $6.40 $5.31
35 93901-22220 93901-22220 / SCREW, TAPPING (3X10)

6 $0.55 $0.46
36 93903-45520 93903-45520 / SCREW, TAPPING (5X25)

2 $0.68 $0.56
