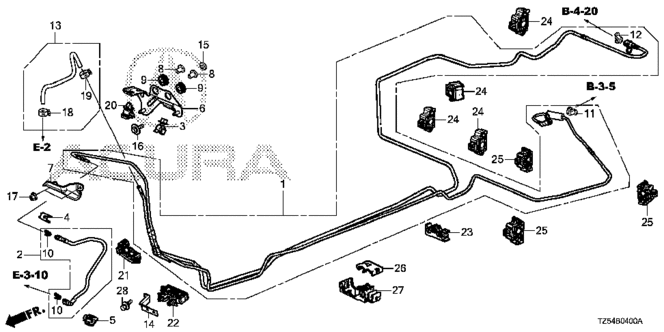

ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE (KA/KC) for 2014 Acura MDX

Select FUEL PIPE (KA/KC) Part

2014 Acura MDX

Change vehicle

No. Part # Part # / Description List Price Price
1 16050-TZ5-A10 16050-TZ5-A10 / PIPE SET, FUEL

$99.48 $82.57
2 16720-5J6-A01 16720-5J6-A01 / HOSE, FUEL FEED

$54.57 $45.29
3 16725-RAC-003 16725-RAC-003 / CLAMP, FUEL HOSE (NATURAL)

$2.62 $2.17
4 16726-RYE-A01 16726-RYE-A01 / HOLDER B, FUEL CONNECTOR (LIGHT GRAY)

$3.38 $2.81
5 16727-RKB-003 16727-RKB-003 / COVER, FUEL CONNECTOR

$3.47 $2.88
6 16731-RV0-A00 16731-RV0-A00 / STAY, FUEL HOSE

$4.05 $3.36
7 16732-RV0-A00 16732-RV0-A00 / COVER, FUEL HOSE

$2.52 $2.09
8 17259-PE0-661 17259-PE0-661 / COLLAR, MOUNTING

$3.73 $3.10
9 17260-PE0-670 17260-PE0-670 / RUBBER, MOUNTING

$2.47 $2.05
10 17711-S0X-931 17711-S0X-931 / RETAINER (BLUE GREEN) (TOKAI)

$2.42 $2.01
11 17711-S84-004 17711-S84-004 / RETAINER (WHITE) (SANOH)

$4.33 $3.59
12 17711-SNA-A01 17711-SNA-A01 / RETAINER (WHITE) (SANOH)

$15.07 $12.51
13 17717-TZ5-A02 17717-TZ5-A02 / HOSE ASSY., FUEL PURGE

$47.63 $39.53
14 17761-TZ5-A00 17761-TZ5-A00 / STAY A, FUEL PIPE

$18.45 $15.31
15 75353-671-000 75353-671-000 / LOCK, SCREW

$3.35 $2.78
16 90001-P7J-000 90001-P7J-000 / BOLT, SPECIAL (6X25)

$1.67 $1.39
17 90361-S7S-003 90361-S7S-003 / NUT, PAINT CUTTING (6MM)

$1.80 $1.49
17 90361-S7S-003 90361-S7S-003 / NUT, PAINT CUTTING (6MM)

$1.80 $1.49
18 91408-SDB-000 91408-SDB-000 / CLAMP, TUBE (D13.0)

$2.35 $1.95
19 91412-SDC-L01 91412-SDC-L01 / CLAMP, FUEL TUBE (D15.5)

$1.85 $1.54
20 91591-SHJ-A01 91591-SHJ-A01 / CLAMP A, FUEL PIPE (BLACK)

$2.83 $2.35
21 91591-TK8-A01 91591-TK8-A01 / CLAMP A, FUEL PIPE

$8.90 $7.39
22 91592-TK8-A01 91592-TK8-A01 / CLAMP B, FUEL PIPE

$13.37 $11.10
23 91593-T2A-A01 91593-T2A-A01 / CLAMP, FUEL PIPE (C)

$2.03 $1.68
24 91593-TZ5-A01 91593-TZ5-A01 / CLAMP C, FUEL PIPE

$3.48 $2.89
25 91593-TZ5-A51 91593-TZ5-A51 / CLAMP C, FUEL PIPE

$3.50 $2.91
26 91595-TZ5-A01 91595-TZ5-A01 / COVER, FUEL PIPE

$3.28 $2.72
27 91596-TZ5-A01 91596-TZ5-A01 / CLAMP A, FUEL PIPE (BLACK)

$14.05 $11.66
28 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

$1.08 $0.90
