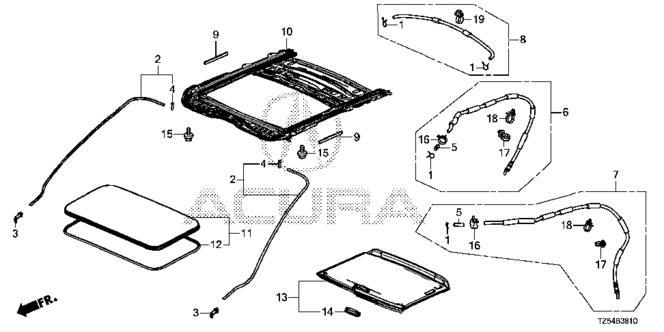

GLASS ASSY., ROOF in INTERIOR / BUMPER/SLIDING ROOF for 2014 Acura MDX

GLASS ASSY., ROOF in INTERIOR / BUMPER/SLIDING ROOF for 2014 Acura MDX #1
7
  • TUBE, L. RR. DRAIN (SUNROOF) - $12.66
17
  • CLIP, HARNESS BAND - $3.93
5
  • CONNECTOR, TUBE - $3.32
1
  • CLIP, AIR HOSE (16MM) - $3.34
17
  • CLIP, HARNESS BAND - $3.93
19
  • CLIP, HARNESS BAND (164.5MM) (DARK BLUE) - $0.21
9
  • SEAL B, FRAME - $7.10
4
  • CLIP, SUNROOF DRAIN TUBE - $0.65
5
  • CONNECTOR, TUBE - $3.32
1
  • CLIP, AIR HOSE (16MM) - $3.34
8
  • TUBE ASSY., RR. DRAIN - $27.37
18
  • CLIP, HARNESS BAND (155.3MM) (BLACK) - $2.39
6
  • TUBE, R. RR. DRAIN (SUNROOF) - $12.66
10
  • FRAME, SUNROOF - $250.05
16
  • CLAMP, FUEL TUBE (D20) (TOPY FASTENERS) - $1.58
16
  • CLAMP, FUEL TUBE (D20) (TOPY FASTENERS) - $1.58
13
  • SUNSHADE ASSY. *YR436L* (SANDSTORM) - $305.09
  • SUNSHADE ASSY. *NH802L* (LIGHT JEWEL GRAY) - $305.09
4
  • CLIP, SUNROOF DRAIN TUBE - $0.65
12
  • SEAL, SUNROOF GLASS - $40.60
11
  • GLASS ASSY., ROOF - $349.36
1
  • CLIP, AIR HOSE (16MM) - $3.34
2
  • TUBE, FR. DRAIN (SUNROOF) - $4.07
15
  • BOLT-WASHER (6X16) - $0.85
3
  • VALVE, FR. DRAIN (SUNROOF) - $1.30
18
  • CLIP, HARNESS BAND (155.3MM) (BLACK) - $2.39
2
  • TUBE, FR. DRAIN (SUNROOF) - $4.07
14
  • HANDLE, SUNSHADE *YR436L* (SANDSTORM) - $4.51
  • HANDLE, SUNSHADE *NH802L* (LIGHT JEWEL GRAY) - $4.51
9
  • SEAL B, FRAME - $7.10
3
  • VALVE, FR. DRAIN (SUNROOF) - $1.30
1
  • CLIP, AIR HOSE (16MM) - $3.34
15
  • BOLT-WASHER (6X16) - $0.85
No. Part # Part # / Description Qty Req. List Price Price
1 18534-634-670 18534-634-670 / CLIP, AIR HOSE (16MM)

4 $4.03 $3.34
2 70050-TZ5-A00 70050-TZ5-A00 / TUBE, FR. DRAIN (SUNROOF)

2 $4.90 $4.07
3 70052-TZ5-A01 70052-TZ5-A01 / VALVE, FR. DRAIN (SUNROOF)

2 $1.57 $1.30
4 70057-SNA-A00 70057-SNA-A00 / CLIP, SUNROOF DRAIN TUBE

2 $0.78 $0.65
5 70057-TZ5-A10 70057-TZ5-A10 / CONNECTOR, TUBE

2 $4.00 $3.32
6 70060-TZ5-A11 70060-TZ5-A11 / TUBE, R. RR. DRAIN (SUNROOF)

1 $15.25 $12.66
7 70065-TZ5-A11 70065-TZ5-A11 / TUBE, L. RR. DRAIN (SUNROOF)

1 $15.25 $12.66
8 70070-TZ5-A02 70070-TZ5-A02 / TUBE ASSY., RR. DRAIN

1 $32.97 $27.37
9 70082-TZ5-A01 70082-TZ5-A01 / SEAL B, FRAME

2 $8.55 $7.10
10 70100-TZ5-A01 70100-TZ5-A01 / FRAME, SUNROOF

1 $301.27 $250.05
11 70200-TZ5-A01 70200-TZ5-A01 / GLASS ASSY., ROOF

1 $420.92 $349.36
12 70205-T2A-A01 70205-T2A-A01 / SEAL, SUNROOF GLASS

1 $48.92 $40.60
13 70600-TZ5-A01ZA 70600-TZ5-A01ZA / SUNSHADE ASSY. *YR436L* (SANDSTORM)

1 $367.58 $305.09
13 70600-TZ5-A01ZB 70600-TZ5-A01ZB / SUNSHADE ASSY. *NH802L* (LIGHT JEWEL GRAY)

1 $367.58 $305.09
14 70611-T2A-A01ZD 70611-T2A-A01ZD / HANDLE, SUNSHADE *YR436L* (SANDSTORM)

1 $5.43 $4.51
14 70611-T2A-A01ZE 70611-T2A-A01ZE / HANDLE, SUNSHADE *NH802L* (LIGHT JEWEL GRAY)

1 $5.43 $4.51
15 93405-06016-08 93405-06016-08 / BOLT-WASHER (6X16)

10 $1.02 $0.85
16 91417-SEL-003 91417-SEL-003 / CLAMP, FUEL TUBE (D20) (TOPY FASTENERS)

2 $1.90 $1.58
17 91506-SNA-003 91506-SNA-003 / CLIP, HARNESS BAND

2 $4.73 $3.93
18 91540-STK-003 91540-STK-003 / CLIP, HARNESS BAND (155.3MM) (BLACK)

2 $2.88 $2.39
19 91542-SNA-003 91542-SNA-003 / CLIP, HARNESS BAND (164.5MM) (DARK BLUE)

1 $0.25 $0.21
