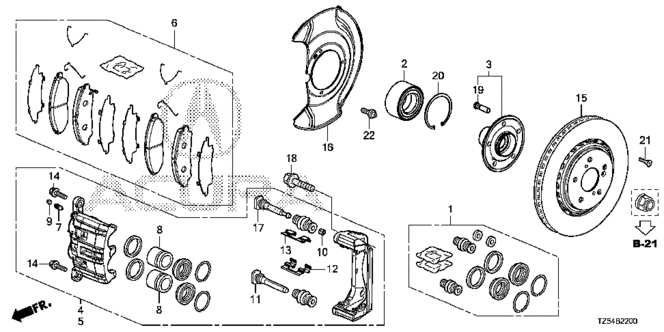

CALIPER SUB-ASSY., L. FR. in CHASSIS/FRONT BRAKE for 2014 Acura MDX

CALIPER SUB-ASSY., L. FR. in CHASSIS/FRONT BRAKE for 2014 Acura MDX #1
9
  • CAP, BLEEDER SCREW - $0.10
13
  • CLIP, PAD - $11.04
10
  • BUSH - $20.00
18
  • BOLT, CALIPER MOUNT - $1.54
3
  • HUB ASSY., FR. - $99.85
14
  • BOLT - $8.12
4
  • CALIPER SUB-ASSY., R. FR. - $231.99
15
  • DISK, FR. BRAKE (17") - $121.10
5
  • CALIPER SUB-ASSY., L. FR. - $231.99
22
  • SCREW-WASHER (6X14) - $0.66
7
  • SCREW, BLEEDER - $3.13
12
  • CLIP, PAD - $11.04
8
  • PISTON - $16.46
8
  • PISTON - $16.46
14
  • BOLT - $8.12
11
  • PIN, GUIDE - $7.22
1
  • CALIPER SET, FR. - $30.35
19
  • BOLT, WHEEL (SAGA) - $1.12
  • BOLT, WHEEL (THAI MEIRA) - $2.88
  • BOLT, WHEEL (ROCKNEL FASTENER) - $1.12
16
  • SPLASH GUARD, FR. - $8.88
20
  • CIRCLIP, INNER (91MM) - $8.20
21
  • SCREW, FLAT (6X14) - $0.50
2
  • BEARING ASSY., FR. HUB - $120.77
17
  • PIN, LOCK - $7.22
6
  • PAD SET, FR. - $64.08
No. Part # Part # / Description Qty Req. List Price Price
1 01463-TZ5-A00 01463-TZ5-A00 / CALIPER SET, FR.

2 $36.57 $30.35
2 44300-TZ5-A01 44300-TZ5-A01 / BEARING ASSY., FR. HUB

2 $145.50 $120.77
3 44600-TZ5-A10 44600-TZ5-A10 / HUB ASSY., FR.

2 $120.30 $99.85
4 45018-TZ5-A01 45018-TZ5-A01 / CALIPER SUB-ASSY., R. FR.

1 $279.50 $231.99
5 45019-TZ5-A01 45019-TZ5-A01 / CALIPER SUB-ASSY., L. FR.

1 $279.50 $231.99
6 45022-TZ5-A00 45022-TZ5-A00 / PAD SET, FR.

1 $77.20 $64.08
7 45215-671-672 45215-671-672 / SCREW, BLEEDER

2 $3.77 $3.13
8 45216-SZA-A01 45216-SZA-A01 / PISTON

4 $19.83 $16.46
9 45219-671-672 45219-671-672 / CAP, BLEEDER SCREW

2 $0.12 $0.10
10 45233-STX-A01 45233-STX-A01 / BUSH

2 $24.10 $20.00
11 45235-SJC-A01 45235-SJC-A01 / PIN, GUIDE

2 $8.70 $7.22
12 45237-STX-A01 45237-STX-A01 / CLIP, PAD

2 $13.30 $11.04
13 45238-STX-A01 45238-STX-A01 / CLIP, PAD

2 $13.30 $11.04
14 45240-SJC-A01 45240-SJC-A01 / BOLT

4 $9.78 $8.12
15 45251-TZ5-A00 45251-TZ5-A00 / DISK, FR. BRAKE (17")

2 $145.90 $121.10
16 45255-TZ5-A00 45255-TZ5-A00 / SPLASH GUARD, FR.

2 $10.70 $8.88
17 45262-STX-A01 45262-STX-A01 / PIN, LOCK

2 $8.70 $7.22
18 90107-S3V-A00 90107-S3V-A00 / BOLT, CALIPER MOUNT

4 $1.85 $1.54
19 90113-S84-901 90113-S84-901 / BOLT, WHEEL (SAGA)

10 $1.35 $1.12
19 90113-SJK-901 90113-SJK-901 / BOLT, WHEEL (THAI MEIRA)

10 $3.47 $2.88
19 90113-S84-901 90113-S84-901 / BOLT, WHEEL (ROCKNEL FASTENER)

10 $1.35 $1.12
20 90681-SJK-000 90681-SJK-000 / CIRCLIP, INNER (91MM)

2 $9.88 $8.20
21 93600-06014-0H 93600-06014-0H / SCREW, FLAT (6X14)

2 $0.60 $0.50
22 93892-06014-08 93892-06014-08 / SCREW-WASHER (6X14)

6 $0.80 $0.66
