ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK for 2013 Honda CIVIC NGV

Select FUEL TANK Part

2013 Honda CIVIC NGV

Change vehicle

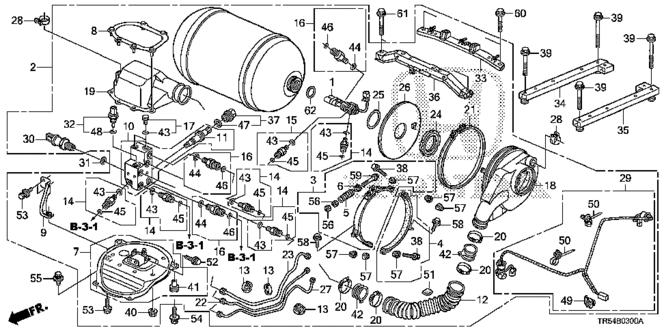

ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK for 2013 Honda CIVIC NGV #1
No. Part # Part # / Description List Price Price
1 16750-RNE-A01 16750-RNE-A01 / VALVE ASSY., CNG TANK SOLENOID(INNER)

$1,182.80 $851.62
2 17490-TR5-A00RM 17490-TR5-A00RM / TANK ASSY., CNG

$6,214.83 $5,593.34
2 17490-TR5-A00 17490-TR5-A00 / TANK ASSY., CNG

- -
3 17521-S5W-000 17521-S5W-000 / BAND, FR. CNG TANK

$130.92 $94.26
4 17522-S5W-000 17522-S5W-000 / BAND, RR. CNG TANK

$100.23 $72.17
5 17526-S1G-000 17526-S1G-000 / SPRING, CNG TANK BAND

$29.27 $21.07
6 17528-S1G-000 17528-S1G-000 / RETAINER, TANK BAND SPRING

$6.75 $4.86
7 17542-TR5-A00 17542-TR5-A00 / PLATE, FUEL JOINT

$75.63 $54.46
8 17546-SNF-A00 17546-SNF-A00 / PLATE, DUCT SETTING

$53.48 $38.51
9 17549-TR5-A00 17549-TR5-A00 / STAY, JOINT PLATE

$7.36 $5.30
10 17550-TR5-A00 17550-TR5-A00 / JOINT ASSY., FUEL

$553.18 $398.29
11 17552-S1G-010 17552-S1G-010 / STEM ASSY., FUEL

$10.85 $7.81
12 17566-SNF-A00 17566-SNF-A00 / DUCT C, FUEL VENT

$29.03 $20.90
13 17665-S1G-000 17665-S1G-000 / GUIDE, FUEL VENT DUCT

$5.40 $3.89
14 17718-S1G-C01 17718-S1G-C01 / CONNECTOR, SEAL LOCK (1/4 INCHES)

$64.92 $46.74
15 17718-S1G-D01 17718-S1G-D01 / CONNECTOR, SEAL LOCK (1/4 INCHES)

$61.52 $44.29
16 17718-S1G-E01 17718-S1G-E01 / CONNECTOR, SEAL LOCK (3/8 INCHES)

$51.78 $37.28
17 17719-S1G-003 17719-S1G-003 / PLUG, HEX. UNF (7/16-20)

$31.85 $22.93
18 17735-S5W-000 17735-S5W-000 / DUCT, TANK VALVE

$61.47 $44.26
19 17736-SNF-A00 17736-SNF-A00 / DUCT, FUEL JOINT

$97.65 $70.31
20 17737-S1G-003 17737-S1G-003 / BAND A, FUEL VENT DUCT

$9.15 $6.59
21 17769-S1G-000 17769-S1G-000 / BAND, TANK VALVE DUCT

$29.35 $21.13
22 17770-TR5-A00 17770-TR5-A00 / PIPE B, FUEL RELIEF

$169.18 $121.81
23 17780-TR5-A00 17780-TR5-A00 / PIPE B, FUEL FILLER

$169.25 $121.86
24 17782-S1G-010 17782-S1G-010 / NUT, DUCT BASE

$30.28 $21.80
25 17783-S1G-013 17783-S1G-013 / GASKET, DUCT BASE

$16.73 $12.05
26 17785-S1G-010 17785-S1G-010 / BASE, TANK VALVE DUCT

$44.40 $31.97
27 17790-TR5-A00 17790-TR5-A00 / PIPE B, FUEL FEED

$169.18 $121.81
28 19511-RB0-004 19511-RB0-004 / CLIP, WATER HOSE

$4.27 $3.07
29 32170-SNF-A00 32170-SNF-A00 / SUB-WIRE, FUEL

$73.95 $53.24
30 37850-PMS-A01 37850-PMS-A01 / SENSOR, PRESSURE FUEL

$321.67 $231.60
31 37851-PMS-A01 37851-PMS-A01 / O-RING (15.8X2.4)

$2.47 $1.78
32 37890-RNE-A01 37890-RNE-A01 / SENSOR ASSY., TEMP FUEL (0)

$34.57 $24.89
33 74555-TR5-A00 74555-TR5-A00 / FRAME, RR. TANK

$821.07 $591.17
34 74560-TR5-A00 74560-TR5-A00 / FRAME, R. TANK SIDE

$402.40 $289.73
35 74565-TR5-A00 74565-TR5-A00 / FRAME, L. TANK SIDE

$402.40 $289.73
36 74690-TR5-A01 74690-TR5-A01 / FRAME, FR. TANK

$616.67 $444.00
37 90030-S1G-010 90030-S1G-010 / BOLT, SEALING (3/4-16UNF)

$39.28 $28.28
38 90085-S1G-A00 90085-S1G-A00 / BOLT, FLANGE (10X80)

$3.53 $2.54
39 90101-TR5-A00 90101-TR5-A00 / BOLT-WASHER (10X108)

$10.32 $7.43
40 90222-S04-003 90222-S04-003 / NUT, SPECIAL (6MM)

$2.17 $1.56
41 90316-S6M-003 90316-S6M-003 / NUT, POP

$3.25 $2.34
42 90659-S1G-000 90659-S1G-000 / JOINT A, FUEL VENT DUCT

$4.60 $3.31
43 91066-S1G-A01 91066-S1G-A01 / O-RING (1/4 INCHES)

$2.68 $1.93
44 91066-S1G-B01 91066-S1G-B01 / O-RING (3/8 INCHES)

$3.43 $2.47
45 91067-S1G-A01 91067-S1G-A01 / O-RING (1/4 INCHES)

$2.57 $1.85
46 91067-S1G-B01 91067-S1G-B01 / O-RING (3/8 INCHES)

$2.57 $1.85
47 91071-S1G-003 91071-S1G-003 / O-RING (16.8X2.25)

$4.53 $3.26
48 91307-PDN-A01 91307-PDN-A01 / O-RING (10.3X1.9)

$5.98 $4.31
49 91533-S04-003 91533-S04-003 / CLIP, CONNECTOR (NATURAL)

$2.33 $1.68
50 91540-S0A-003 91540-S0A-003 / CLIP, HARNESS BAND (96.9MM) (NATURAL)

$4.15 $2.99
51 91902-SJ8-003 91902-SJ8-003 / CUSHION, WIRE HARNESS (50X50)

$4.47 $3.22
52 93301-06016-0H 93301-06016-0H / BOLT, HEX. (6X16)

$0.85 $0.61
53 93401-06016-04 93401-06016-04 / BOLT-WASHER (6X16)

$0.92 $0.66
54 93401-06020-05 93401-06020-05 / BOLT-WASHER (6X20)

$0.92 $0.66
55 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

$1.05 $0.76
56 94030-10280 94030-10280 / NUT, HEX. (10MM)

$0.78 $0.56
57 94050-10080 94050-10080 / NUT, FLANGE (10MM)

$1.08 $0.78
58 95701-10025-08 95701-10025-08 / BOLT, FLANGE (10X25)

$1.35 $0.97
59 95701-10110-08 95701-10110-08 / BOLT, FLANGE (10X110)

$2.75 $1.98
60 95801-10060-08 95801-10060-08 / BOLT, FLANGE (10X60)

$1.57 $1.13
61 95801-10075-08 95801-10075-08 / BOLT, FLANGE (10X75)

$1.87 $1.34
62 17574-PDN-A01 17574-PDN-A01 / O-RING, TANK ADAPTER (53.6X3.5)

$12.92 $9.30
