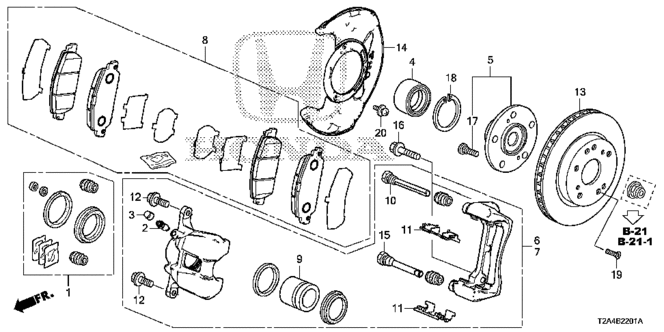

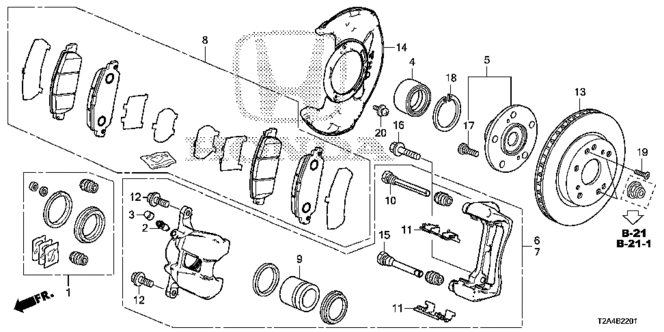

CALIPER SUB-ASSY., L. FR. in CHASSIS/FRONT BRAKE (2) for 2013 Honda ACCORD SEDAN

CALIPER SUB-ASSY., L. FR. in CHASSIS/FRONT BRAKE (2) for 2013 Honda ACCORD SEDAN #1
3
  • CAP, BLEEDER SCREW - $2.36
17
  • BOLT, WHEEL (ROCKNEL FASTENER) - $2.50
18
  • CIRCLIP, INNER (91MM) - $7.12
8
  • PAD SET, FR. - $55.58
11
  • RETAINER - $4.56
15
  • PIN (B) - $5.52
4
  • BEARING ASSY., FR. HUB - $66.70
11
  • RETAINER - $4.56
9
  • PISTON - $33.42
5
  • HUB ASSY., FR. - $44.23
14
  • SPLASH GUARD, FR. - $9.14
13
  • DISK, FR. BRAKE - $83.40
10
  • PIN A - $1.93
1
  • CALIPER SET, FR. - $17.94
6
  • CALIPER SUB-ASSY., R. FR. - $172.13
  • CALIPER SUB-ASSY., R. FR. - $172.13
16
  • BOLT, CALIPER MOUNTING (12X21) - $0.66
7
  • CALIPER SUB-ASSY., L. FR. - $172.13
  • CALIPER SUB-ASSY., L. FR. - $172.13
19
  • SCREW, FLAT (6X14) - $0.43
12
  • BOLT, FLANGE (10X24) - $3.29
12
  • BOLT, FLANGE (10X24) - $3.29
2
  • SCREW, BLEEDER - $3.90
20
  • SCREW-WASHER (5X12) - $0.49
No. Part # Part # / Description Qty Req. List Price Price
1 01463-T2G-A00 01463-T2G-A00 / CALIPER SET, FR.

2 $24.92 $17.94
2 43352-SM4-951 43352-SM4-951 / SCREW, BLEEDER

2 $5.42 $3.90
3 43353-SD5-003 43353-SD5-003 / CAP, BLEEDER SCREW

2 $3.28 $2.36
4 44300-T2A-A51 44300-T2A-A51 / BEARING ASSY., FR. HUB

2 $92.63 $66.70
5 44600-T2F-A00 44600-T2F-A00 / HUB ASSY., FR.

2 $61.43 $44.23
6 45018-T2G-010 45018-T2G-010 / CALIPER SUB-ASSY., R. FR.

1 $239.07 $172.13
6 45018-T2G-020 45018-T2G-020 / CALIPER SUB-ASSY., R. FR.

1 $239.07 $172.13
7 45019-T2G-010 45019-T2G-010 / CALIPER SUB-ASSY., L. FR.

1 $239.07 $172.13
7 45019-T2G-020 45019-T2G-020 / CALIPER SUB-ASSY., L. FR.

1 $239.07 $172.13
8 45022-T2G-A00 45022-T2G-A00 / PAD SET, FR.

1 $77.20 $55.58
9 45216-T2G-A01 45216-T2G-A01 / PISTON

2 $46.42 $33.42
10 45235-TR0-E01 45235-TR0-E01 / PIN A

2 $2.68 $1.93
11 45237-T2G-A04 45237-T2G-A04 / RETAINER

4 $6.33 $4.56
12 45240-SM4-003 45240-SM4-003 / BOLT, FLANGE (10X24)

4 $4.57 $3.29
13 45251-T2F-A50 45251-T2F-A50 / DISK, FR. BRAKE

2 $115.83 $83.40
14 45255-T2A-A00 45255-T2A-A00 / SPLASH GUARD, FR.

2 $12.70 $9.14
15 45262-T0A-A01 45262-T0A-A01 / PIN (B)

2 $7.67 $5.52
16 90107-SM4-000 90107-SM4-000 / BOLT, CALIPER MOUNTING (12X21)

4 $0.92 $0.66
17 90113-STK-A01 90113-STK-A01 / BOLT, WHEEL (ROCKNEL FASTENER)

10 $3.47 $2.50
18 90681-SJK-000 90681-SJK-000 / CIRCLIP, INNER (91MM)

2 $9.88 $7.12
19 93600-06014-0H 93600-06014-0H / SCREW, FLAT (6X14)

4 $0.60 $0.43
20 93892-05012-08 93892-05012-08 / SCREW-WASHER (5X12)

6 $0.68 $0.49
