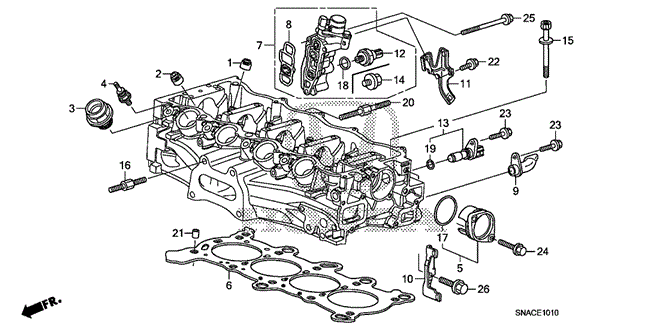

VALVE ASSY., SPOOL in ENGINE/SPOOL VALVE (1.8L) for 2010 Honda CIVIC SEDAN

VALVE ASSY., SPOOL in ENGINE/SPOOL VALVE (1.8L) for 2010 Honda CIVIC SEDAN #1
6
  • GASKET, CYLINDER HEAD (NIPPON LEAKLESS) - $30.97
23
  • BOLT, FLANGE (6X16) - $0.64
3
  • COLLAR, SPARK PLUG COIL - $6.54
9
  • JOINT, EGR - $19.60
20
  • BOLT, STUD (8X32) - $0.94
21
  • PIN, DOWEL (14X20) - $0.98
1
  • SEAL A, VALVE STEM (NOK) - $1.15
24
  • BOLT, FLANGE (6X20) - $0.16
2
  • SEAL B, VALVE STEM (NOK) - $1.15
7
  • VALVE ASSY., SPOOL - $116.52
13
  • SENSOR ASSY., TDC - $57.96
19
  • O-RING (15X1.9) - $1.32
10
  • STAY C, ENGINE WIRE HARNESS - $4.27
8
  • FILTER ASSY., SPOOL VALVE - $3.07
22
  • BOLT, FLANGE (6X12) - $0.72
15
  • BOLT-WASHER (11X176) - $2.63
26
  • BOLT, FLANGE (8X16) - $0.71
17
  • O-RING (46.8X2.2) (NOK) - $2.99
12
  • SENSOR, OIL PRESSURE - $112.57
23
  • BOLT, FLANGE (6X16) - $0.64
11
  • STAY D, ENGINE HARNESS - $3.05
18
  • O-RING (13X1.5) - $2.02
4
  • BOLT, SPARK PLUG COIL - $3.18
25
  • BOLT, FLANGE (6X55) - $0.86
5
  • COVER, CAMSHAFT THRUST - $13.21
16
  • BOLT, STUD (8X25) - $1.67
No. Part # Part # / Description Qty Req. List Price Price
1 12210-PZ1-004 12210-PZ1-004 / SEAL A, VALVE STEM (NOK)

8 $1.75 $1.15
2 12211-PZ1-004 12211-PZ1-004 / SEAL B, VALVE STEM (NOK)

8 $1.75 $1.15
3 12215-RNA-A00 12215-RNA-A00 / COLLAR, SPARK PLUG COIL

4 $9.08 $6.54
4 12216-RNA-A00 12216-RNA-A00 / BOLT, SPARK PLUG COIL

4 $4.42 $3.18
5 12240-RNA-A00 12240-RNA-A00 / COVER, CAMSHAFT THRUST

1 $18.35 $13.21
6 12251-RNA-A02 12251-RNA-A02 / GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

1 $43.02 $30.97
7 15810-RNA-A01 15810-RNA-A01 / VALVE ASSY., SPOOL

1 $161.83 $116.52
8 15826-RNA-A01 15826-RNA-A01 / FILTER ASSY., SPOOL VALVE

1 $4.27 $3.07
9 17147-RNA-A00 17147-RNA-A00 / JOINT, EGR

1 $27.22 $19.60
10 32743-RNA-A01 32743-RNA-A01 / STAY C, ENGINE WIRE HARNESS

1 $5.93 $4.27
11 32744-RNA-A00 32744-RNA-A00 / STAY D, ENGINE HARNESS

1 $4.23 $3.05
12 37260-RNA-A01 37260-RNA-A01 / SENSOR, OIL PRESSURE

1 $156.35 $112.57
13 37510-RNA-A01 37510-RNA-A01 / SENSOR ASSY., TDC

1 $80.50 $57.96
15 90005-RNA-A01 90005-RNA-A01 / BOLT-WASHER (11X176)

10 $3.65 $2.63
16 90026-RNA-A00 90026-RNA-A00 / BOLT, STUD (8X25)

2 $2.32 $1.67
17 91302-PX4-004 91302-PX4-004 / O-RING (46.8X2.2) (NOK)

1 $4.15 $2.99
18 91319-PAA-A01 91319-PAA-A01 / O-RING (13X1.5)

1 $2.80 $2.02
19 91333-PNA-003 91333-PNA-003 / O-RING (15X1.9)

1 $1.83 $1.32
20 92900-08032-1B 92900-08032-1B / BOLT, STUD (8X32)

2 $1.30 $0.94
21 94301-14200 94301-14200 / PIN, DOWEL (14X20)

2 $1.37 $0.98
22 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.72
23 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

2 $0.88 $0.64
24 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

2 $0.22 $0.16
25 95701-06055-08 95701-06055-08 / BOLT, FLANGE (6X55)

3 $1.20 $0.86
26 95701-08016-08 95701-08016-08 / BOLT, FLANGE (8X16)

1 $0.98 $0.71
