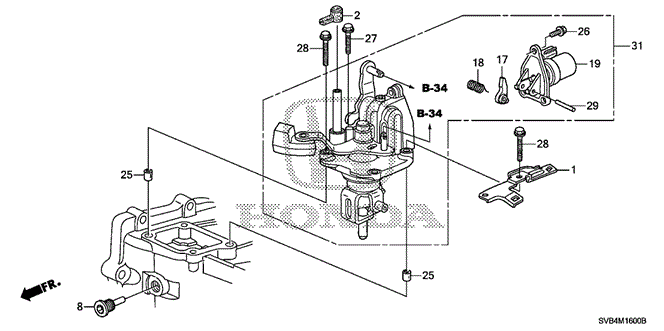

LEVER ASSY., CHANGE (6MT) in TRANSMISSION - MANUAL/MT SHIFT ARM - SHIFT LEVER (2.0L) for 2010 Honda CIVIC COUPE

LEVER ASSY., CHANGE (6MT) in TRANSMISSION - MANUAL/MT SHIFT ARM - SHIFT LEVER (2.0L) for 2010 Honda CIVIC COUPE #1
18
  • SPRING, SELECT LOCK RETURN - $1.27
1
  • STAY A, HARNESS - $4.93
25
  • PIN, DOWEL (8X14) - $0.84
27
  • BOLT, FLANGE (6X20) - $0.16
31
  • LEVER ASSY., CHANGE (6MT) - $313.61
25
  • PIN, DOWEL (8X14) - $0.84
26
  • BOLT, FLANGE (6X16) - $0.64
17
  • CAM B, SELECT LOCK - $3.65
28
  • BOLT, FLANGE (6X30) - $0.86
19
  • SOLENOID SUB-ASSY. - $111.78
29
  • ROLLER (4X23.8) - $0.35
28
  • BOLT, FLANGE (6X30) - $0.86
8
  • BOLT, INTERLOCK - $7.15
2
  • CAP, BREATHER - $3.02
No. Part # Part # / Description Qty Req. List Price Price
1 21224-RAP-000 21224-RAP-000 / STAY A, HARNESS

1 $6.85 $4.93
2 21396-P20-000 21396-P20-000 / CAP, BREATHER

1 $4.20 $3.02
3 21520-RAS-000 21520-RAS-000 / COVER, SHIFT ARM

1 $49.12 $35.36
4 24411-PPP-010 24411-PPP-010 / ARM, SHIFT

1 $28.70 $20.66
5 24412-PNS-000 24412-PNS-000 / ARM, MAINSHAFT BRAKE SYSTEM

1 $17.00 $12.24
6 24413-PNS-000 24413-PNS-000 / SPRING, MAINSHAFT BRAKE SYSTEMRETURN

1 $1.27 $0.91
7 24430-PNS-000 24430-PNS-000 / INTERLOCK

1 $34.05 $24.52
8 24433-PH8-000 24433-PH8-000 / BOLT, INTERLOCK

1 $9.93 $7.15
9 24460-RPW-000 24460-RPW-000 / LEVER, SELECT

1 $26.68 $19.21
10 24464-PPP-000 24464-PPP-000 / SPRING, FIRST-SECOND SELECT

1 $2.48 $1.79
11 24466-PPP-000 24466-PPP-000 / SPRING, FIFTH-SIXTH SELECT

1 $2.92 $2.10
12 24467-PPP-000 24467-PPP-000 / PLATE, SELECT STOPPER

1 $4.43 $3.19
13 24470-R88-000 24470-R88-000 / LEVER, SHIFT

1 $95.67 $68.88
14 24474-RAP-000 24474-RAP-000 / COVER, DUST

1 $4.58 $3.30
15 24479-PPP-000 24479-PPP-000 / COVER, SHIFT LEVER

1 $4.73 $3.41
16 24521-PNS-000 24521-PNS-000 / CAM A, SELECT LOCK

1 $5.07 $3.65
17 24522-PNS-000 24522-PNS-000 / CAM B, SELECT LOCK

1 $5.07 $3.65
18 24524-PNS-000 24524-PNS-000 / SPRING, SELECT LOCK RETURN

1 $1.77 $1.27
19 28251-RAS-003 28251-RAS-003 / SOLENOID SUB-ASSY.

1 $155.25 $111.78
20 90029-611-010 90029-611-010 / BOLT, HEX. (8X24)

1 $5.12 $3.68
21 90412-679-000 90412-679-000 / WASHER, CONICAL SPRING (8MM)

1 $2.92 $2.10
22 91207-PPP-003 91207-PPP-003 / DUST SEAL (18X24X5)

1 $5.00 $3.60
23 91208-PPP-003 91208-PPP-003 / DUST SEAL (14X20X4)

1 $4.17 $3.00
24 90402-R88-000 90402-R88-000 / WASHER, PLAIN (14MM)

1 $2.50 $1.80
25 94301-08140 94301-08140 / PIN, DOWEL (8X14)

2 $1.17 $0.84
26 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

3 $0.88 $0.64
27 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

2 $0.22 $0.16
28 95701-06030-08 95701-06030-08 / BOLT, FLANGE (6X30)

2 $1.20 $0.86
29 96220-40238 96220-40238 / ROLLER (4X23.8)

1 $0.48 $0.35
30 96220-40318 96220-40318 / ROLLER (4X31.8)

1 $0.52 $0.37
31 24400-RPW-000 24400-RPW-000 / LEVER ASSY., CHANGE (6MT)

1 $435.57 $313.61
