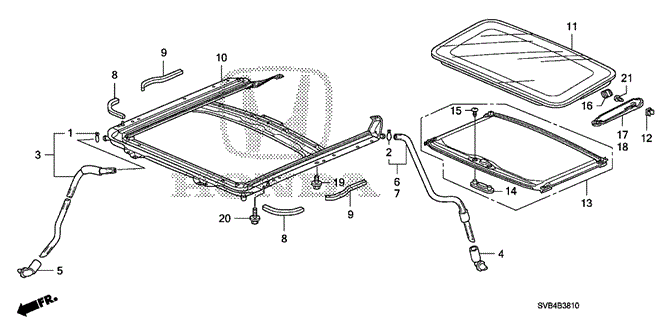

GLASS ASSY., ROOF in INTERIOR / BUMPER/SLIDING ROOF for 2010 Honda CIVIC COUPE

GLASS ASSY., ROOF in INTERIOR / BUMPER/SLIDING ROOF for 2010 Honda CIVIC COUPE #1
1
  • CLIP, OIL DRAIN TUBE - $2.57
19
  • BOLT, GROUND (6X16) - $2.59
18
  • COVER, L. LINK - $7.82
4
  • VALVE, DRAIN (SUNROOF) - $5.71
8
  • SEAL A, FRAME - $3.97
12
  • GROMMET, SCREW (4MM) - $3.40
6
  • TUBE, R. RR. DRAIN (SUNROOF) - $4.03
9
  • SEAL B, FRAME - $3.97
15
  • SCREW, TAPPING (4X7) (PO) - $3.07
10
  • FRAME, SUNROOF - $338.96
20
  • BOLT-WASHER (6X16) - $0.59
9
  • SEAL B, FRAME - $3.97
13
  • SUNSHADE ASSY. *NH686L* (WARM GRAY) - $138.02
21
  • SCREW, TAPPING (4X10) - $0.30
8
  • SEAL A, FRAME - $3.97
3
  • TUBE, FR. DRAIN (SUNROOF) - $5.27
2
  • CLIP, AIR HOSE (16MM) - $2.81
16
  • CAP, STAY COVER - $1.79
14
  • HANDLE, SUNSHADE *NH686L* (WARM GRAY) - $2.66
17
  • COVER, R. LINK - $7.82
7
  • TUBE, L. RR. DRAIN (SUNROOF) - $4.76
11
  • GLASS ASSY., ROOF - $461.32
5
  • VALVE, FR. DRAIN (SUNROOF) - $5.15
No. Part # Part # / Description Qty Req. List Price Price
1 15707-634-000 15707-634-000 / CLIP, OIL DRAIN TUBE

2 $3.57 $2.57
2 18534-634-670 18534-634-670 / CLIP, AIR HOSE (16MM)

2 $3.90 $2.81
3 70050-SVA-A00 70050-SVA-A00 / TUBE, FR. DRAIN (SUNROOF)

2 $7.32 $5.27
4 70052-SJD-J00 70052-SJD-J00 / VALVE, DRAIN (SUNROOF)

2 $7.93 $5.71
5 70052-S6A-J00 70052-S6A-J00 / VALVE, FR. DRAIN (SUNROOF)

2 $7.15 $5.15
6 70060-SVA-A00 70060-SVA-A00 / TUBE, R. RR. DRAIN (SUNROOF)

1 $5.60 $4.03
7 70065-SVA-A00 70065-SVA-A00 / TUBE, L. RR. DRAIN (SUNROOF)

1 $6.62 $4.76
8 70081-SDA-A01 70081-SDA-A01 / SEAL A, FRAME

2 $5.52 $3.97
9 70082-SDA-A01 70082-SDA-A01 / SEAL B, FRAME

2 $5.52 $3.97
10 70100-SVA-A01 70100-SVA-A01 / FRAME, SUNROOF

1 $470.78 $338.96
11 70200-SVA-A01 70200-SVA-A01 / GLASS ASSY., ROOF

1 $640.72 $461.32
12 70225-SDA-A01 70225-SDA-A01 / GROMMET, SCREW (4MM)

2 $4.72 $3.40
13 70600-SVA-A01ZD 70600-SVA-A01ZD / SUNSHADE ASSY. *NH686L* (WARM GRAY)

1 $191.70 $138.02
14 70611-S5A-J01ZY 70611-S5A-J01ZY / HANDLE, SUNSHADE *NH686L* (WARM GRAY)

1 $3.70 $2.66
15 70617-S5A-J01 70617-S5A-J01 / SCREW, TAPPING (4X7) (PO)

10 $4.27 $3.07
16 70623-SM4-003 70623-SM4-003 / CAP, STAY COVER

2 $2.48 $1.79
17 70630-SVA-A01 70630-SVA-A01 / COVER, R. LINK

1 $10.87 $7.82
18 70635-SVA-A01 70635-SVA-A01 / COVER, L. LINK

1 $10.87 $7.82
19 90148-SH3-003 90148-SH3-003 / BOLT, GROUND (6X16)

1 $3.60 $2.59
20 93405-06016-08 93405-06016-08 / BOLT-WASHER (6X16)

8 $0.82 $0.59
21 93911-14180 93911-14180 / SCREW, TAPPING (4X10)

2 $0.42 $0.30
