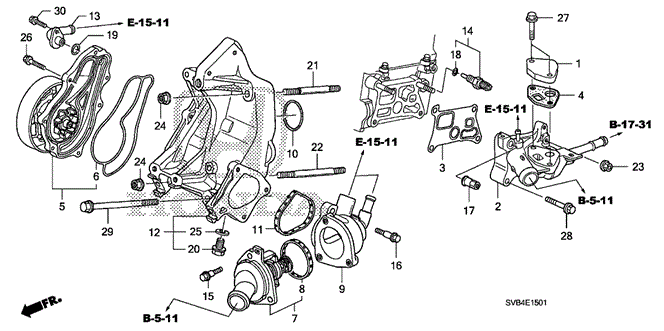

PASSAGE, WATER in ENGINE/WATER PUMP (2.0L) for 2010 Honda CIVIC COUPE

PASSAGE, WATER in ENGINE/WATER PUMP (2.0L) for 2010 Honda CIVIC COUPE #1
12
  • PASSAGE, WATER - $123.70
5
  • WATER PUMP - $117.43
30
  • BOLT, FLANGE (6X14) - $0.71
19
  • O-RING (13.5X3.5) - $0.98
15
  • BOLT, SPECIAL (6X19) (NIPPON THERMOSTAT) - $1.10
29
  • BOLT, FLANGE (10X105) - $1.91
2
  • PASSAGE, EGR - $51.24
20
  • BOLT, DRAIN PLUG (14MM) - $1.73
3
  • GASKET, EGR PASSAGE - $2.81
17
  • NUT, SPECIAL - $4.58
14
  • SENSOR ASSY., WATER TEMPERATURE (KEIHIN) - $30.48
27
  • BOLT, FLANGE (8X25) - $0.31
21
  • BOLT, STUD (10X60) - $1.33
10
  • O-RING (43.8X3.1) - $1.76
1
  • PLATE, EGR PORT - $8.69
22
  • BOLT, STUD (10X100) - $1.75
6
  • GASKET, WATER PUMP - $3.60
25
  • WASHER, DRAIN PLUG (14MM) - $0.28
18
  • O-RING (9.5X1.9) - $0.98
24
  • NUT, FLANGE (10MM) - $0.76
26
  • BOLT, FLANGE (6X25) - $0.71
28
  • BOLT, FLANGE (8X45) - $0.92
9
  • CASE, THERMOSTAT (FUJI SEIKO) - $30.36
13
  • JOINT, OIL COOLER - $8.00
16
  • BOLT, SPECIAL (6X28) - $1.10
24
  • NUT, FLANGE (10MM) - $0.76
7
  • THERMOSTAT ASSY. (NIPPON THERMOSTAT) - $35.03
  • THERMOSTAT ASSY. (FUJI SEIKO) - $35.03
8
  • SEAL, THERMOSTAT COVER (FUJI BELLOWS) - $3.06
  • SEAL, THERMOSTAT COVER (NIPPON THERMOSTAT) - $3.06
11
  • SEAL, THERMOSTAT CASE (NIPPON THERMOSTAT) - $3.06
4
  • GASKET, EGR VALVE (ISHINO GASKET) - $5.06
23
  • NUT, FLANGE (8MM) - $0.18
No. Part # Part # / Description Qty Req. List Price Price
1 18711-PM1-J00 18711-PM1-J00 / PLATE, EGR PORT

1 $12.07 $8.69
2 18712-RRA-A00 18712-RRA-A00 / PASSAGE, EGR

1 $71.17 $51.24
3 18714-RAA-A01 18714-RAA-A01 / GASKET, EGR PASSAGE

1 $3.90 $2.81
4 18715-PB2-000 18715-PB2-000 / GASKET, EGR VALVE (ISHINO GASKET)

1 $7.03 $5.06
5 19200-RBC-013 19200-RBC-013 / WATER PUMP

1 $163.10 $117.43
6 19222-RBC-003 19222-RBC-003 / GASKET, WATER PUMP

1 $5.00 $3.60
7 19301-RAF-004 19301-RAF-004 / THERMOSTAT ASSY. (NIPPON THERMOSTAT)

1 $48.65 $35.03
7 19301-RAF-004 19301-RAF-004 / THERMOSTAT ASSY. (FUJI SEIKO)

1 $48.65 $35.03
8 19305-PNA-003 19305-PNA-003 / SEAL, THERMOSTAT COVER (FUJI BELLOWS)

1 $4.25 $3.06
8 19305-PNA-003 19305-PNA-003 / SEAL, THERMOSTAT COVER (NIPPON THERMOSTAT)

1 $4.25 $3.06
9 19320-RAA-A01 19320-RAA-A01 / CASE, THERMOSTAT (FUJI SEIKO)

1 $42.17 $30.36
10 19322-PCX-003 19322-PCX-003 / O-RING (43.8X3.1)

1 $2.45 $1.76
11 19322-PNA-003 19322-PNA-003 / SEAL, THERMOSTAT CASE (NIPPON THERMOSTAT)

1 $4.25 $3.06
12 19410-RBC-000 19410-RBC-000 / PASSAGE, WATER

1 $171.80 $123.70
13 19425-PRB-A00 19425-PRB-A00 / JOINT, OIL COOLER

1 $11.12 $8.00
14 37870-PNA-003 37870-PNA-003 / SENSOR ASSY., WATER TEMPERATURE (KEIHIN)

1 $42.33 $30.48
15 90050-PNA-003 90050-PNA-003 / BOLT, SPECIAL (6X19) (NIPPON THERMOSTAT)

3 $1.53 $1.10
16 90051-PNA-000 90051-PNA-000 / BOLT, SPECIAL (6X28)

3 $1.53 $1.10
17 90204-PH7-000 90204-PH7-000 / NUT, SPECIAL

1 $6.37 $4.58
18 91307-PNA-003 91307-PNA-003 / O-RING (9.5X1.9)

1 $1.37 $0.98
19 91311-PRB-A00 91311-PRB-A00 / O-RING (13.5X3.5)

1 $1.37 $0.98
20 92800-14000 92800-14000 / BOLT, DRAIN PLUG (14MM)

1 $2.40 $1.73
21 92900-10060-0B 92900-10060-0B / BOLT, STUD (10X60)

1 $1.85 $1.33
22 92900-10100-0B 92900-10100-0B / BOLT, STUD (10X100)

1 $2.43 $1.75
23 94050-08080 94050-08080 / NUT, FLANGE (8MM)

1 $0.25 $0.18
24 94050-10080 94050-10080 / NUT, FLANGE (10MM)

2 $1.05 $0.76
25 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

1 $0.38 $0.28
26 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

7 $0.98 $0.71
27 95701-08025-08 95701-08025-08 / BOLT, FLANGE (8X25)

2 $0.43 $0.31
28 95701-08045-08 95701-08045-08 / BOLT, FLANGE (8X45)

2 $1.28 $0.92
29 95701-10105-08 95701-10105-08 / BOLT, FLANGE (10X105)

2 $2.65 $1.91
30 96001-06014-00 96001-06014-00 / BOLT, FLANGE (6X14)

1 $0.98 $0.71
