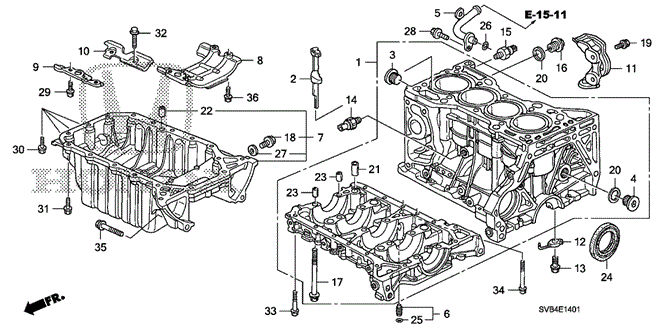

BLOCK ASSY., CYLINDER (DOT) in ENGINE/CYLINDER BLOCK - OIL PAN (2.0L) for 2010 Honda CIVIC COUPE

BLOCK ASSY., CYLINDER (DOT) in ENGINE/CYLINDER BLOCK - OIL PAN (2.0L) for 2010 Honda CIVIC COUPE #1
5
  • JOINT, OIL COOLER - $9.52
27
  • WASHER, DRAIN PLUG (14MM) - $0.28
22
  • PIN, DOWEL (13X20) - $2.50
6
  • ORIFICE ASSY., BLOCK (LOWER) - $2.89
13
  • BOLT, OIL JET - $13.63
10
  • PLATE C, BAFFLE - $4.39
20
  • WASHER, SEALING (28MM) - $2.27
11
  • BAFFLE, OIL FILTER HEAT - $12.35
20
  • WASHER, SEALING (28MM) - $2.27
12
  • BODY, OIL JET - $13.24
3
  • BOLT, SEALING (20MM) - $3.38
33
  • BOLT, FLANGE (8X35) - $0.61
1
  • BLOCK ASSY., CYLINDER (DOT) - $793.31
23
  • PIN, DOWEL (13X14) - $1.97
7
  • PAN, OIL - $186.86
29
  • BOLT, FLANGE (6X18) - $0.64
32
  • BOLT, FLANGE (6X40) - $0.74
34
  • BOLT, FLANGE (8X50) - $0.98
8
  • PLATE A, BAFFLE - $13.64
26
  • O-RING (13.5X3.5) - $0.98
4
  • BOLT, SEALING (28MM) - $6.55
36
  • BOLT, FLANGE (6X18) - $0.64
21
  • PIN, DOWEL (18X22) - $4.26
17
  • BOLT-WASHER (11X95) - $3.64
18
  • BOLT, PLUG (14MM) - $5.29
  • BOLT, DRAIN PLUG (14MM) - $5.29
28
  • BOLT, FLANGE (6X14) - $0.64
25
  • O-RING (6.8X1.9) - $1.36
15
  • SWITCH ASSY., OIL PRESSURE - $29.70
16
  • BOLT, DRAIN PLUG (28MM) - $9.02
19
  • BOLT-WASHER (8X19) - $0.97
2
  • PLATE, PARTITION - $10.78
31
  • BOLT, FLANGE (6X32) - $0.74
35
  • BOLT, FLANGE (10X50) - $1.08
30
  • BOLT, FLANGE (6X30) - $0.86
24
  • OIL SEAL (80X98X10) (ARAI) - $8.92
14
  • SENSOR ASSY., KNOCK - $63.77
23
  • PIN, DOWEL (13X14) - $1.97
9
  • PLATE B, BAFFLE - $3.82
No. Part # Part # / Description Qty Req. List Price Price
1 11000-RRB-810 11000-RRB-810 / BLOCK ASSY., CYLINDER (DOT)

1 $1,017.06 $793.31
2 11103-RAC-003 11103-RAC-003 / PLATE, PARTITION

1 $14.97 $10.78
3 11106-PNA-300 11106-PNA-300 / BOLT, SEALING (20MM)

1 $4.70 $3.38
4 11106-PR4-013 11106-PR4-013 / BOLT, SEALING (28MM)

1 $9.10 $6.55
5 11107-RBC-010 11107-RBC-010 / JOINT, OIL COOLER

1 $13.22 $9.52
6 11135-RAA-A00 11135-RAA-A00 / ORIFICE ASSY., BLOCK (LOWER)

1 $4.02 $2.89
7 11200-RRC-000 11200-RRC-000 / PAN, OIL

1 $259.53 $186.86
8 11221-RAA-A00 11221-RAA-A00 / PLATE A, BAFFLE

1 $18.95 $13.64
9 11222-RAA-A00 11222-RAA-A00 / PLATE B, BAFFLE

1 $5.30 $3.82
10 11223-RAA-A00 11223-RAA-A00 / PLATE C, BAFFLE

1 $6.10 $4.39
11 11224-RRB-010 11224-RRB-010 / BAFFLE, OIL FILTER HEAT

1 $17.15 $12.35
12 15280-R40-A01 15280-R40-A01 / BODY, OIL JET

4 $18.38 $13.24
13 15290-R40-A01 15290-R40-A01 / BOLT, OIL JET

4 $18.93 $13.63
14 30530-PRC-003 30530-PRC-003 / SENSOR ASSY., KNOCK

1 $88.57 $63.77
15 37241-RNA-A01 37241-RNA-A01 / SWITCH ASSY., OIL PRESSURE

1 $41.25 $29.70
16 90001-PM3-003 90001-PM3-003 / BOLT, DRAIN PLUG (28MM)

1 $12.53 $9.02
17 90006-PNA-003 90006-PNA-003 / BOLT-WASHER (11X95)

10 $5.05 $3.64
18 90009-R70-A00 90009-R70-A00 / BOLT, PLUG (14MM)

1 $7.35 $5.29
18 90009-R70-A00 90009-R70-A00 / BOLT, DRAIN PLUG (14MM)

1 $7.35 $5.29
19 90016-RAA-A00 90016-RAA-A00 / BOLT-WASHER (8X19)

2 $1.35 $0.97
20 90401-PR4-000 90401-PR4-000 / WASHER, SEALING (28MM)

2 $3.15 $2.27
21 90703-PE0-000 90703-PE0-000 / PIN, DOWEL (18X22)

1 $5.92 $4.26
22 90715-PC6-000 90715-PC6-000 / PIN, DOWEL (13X20)

2 $3.47 $2.50
23 90715-PNA-000 90715-PNA-000 / PIN, DOWEL (13X14)

10 $2.73 $1.97
24 91214-RZY-A01 91214-RZY-A01 / OIL SEAL (80X98X10) (ARAI)

1 $12.38 $8.92
25 91306-PJ4-000 91306-PJ4-000 / O-RING (6.8X1.9)

1 $1.88 $1.36
26 91311-PRB-A00 91311-PRB-A00 / O-RING (13.5X3.5)

1 $1.37 $0.98
27 94109-14000 94109-14000 / WASHER, DRAIN PLUG (14MM)

1 $0.38 $0.28
28 95701-06014-08 95701-06014-08 / BOLT, FLANGE (6X14)

1 $0.88 $0.64
36 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

4 $0.88 $0.64
30 95701-06030-08 95701-06030-08 / BOLT, FLANGE (6X30)

3 $1.20 $0.86
31 95701-06032-08 95701-06032-08 / BOLT, FLANGE (6X32)

15 $1.03 $0.74
32 95701-06040-08 95701-06040-08 / BOLT, FLANGE (6X40)

2 $1.03 $0.74
33 95701-08035-08 95701-08035-08 / BOLT, FLANGE (8X35)

10 $0.85 $0.61
34 95701-08050-08 95701-08050-08 / BOLT, FLANGE (8X50)

4 $1.37 $0.98
35 95701-10050-08 95701-10050-08 / BOLT, FLANGE (10X50)

2 $1.50 $1.08
