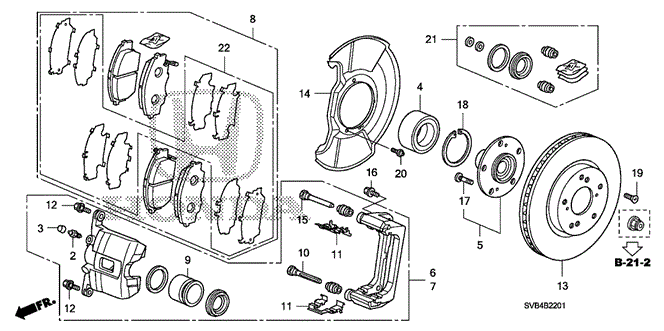

CALIPER SUB-ASSY., L. in CHASSIS/FRONT BRAKE (2.0L) for 2010 Honda CIVIC COUPE

CALIPER SUB-ASSY., L. in CHASSIS/FRONT BRAKE (2.0L) for 2010 Honda CIVIC COUPE #1
7
  • CALIPER SUB-ASSY., L. - $154.70
11
  • RETAINER - $5.05
3
  • CAP, BLEEDER SCREW - $2.36
6
  • CALIPER SUB-ASSY., R. - $154.70
20
  • SCREW-WASHER (5X12) - $0.49
12
  • BOLT, FLANGE (8X22) - $4.06
8
  • PAD SET, FR. - $43.73
15
  • PIN B - $8.14
4
  • BEARING ASSY., FR. HUB (NSK) - $88.54
9
  • PISTON - $29.87
2
  • SCREW, BLEEDER - $3.90
21
  • CALIPER SET - $21.00
12
  • BOLT, FLANGE (8X22) - $4.06
13
  • DISK, FR. BRAKE - $94.96
19
  • SCREW, FLAT (6X14) - $0.43
22
  • SHIM SET, FR. - $19.45
14
  • SPLASH GUARD, FR. (16") - $24.31
16
  • BOLT, CALIPER MOUNTING (12X21) - $0.66
18
  • CIRCLIP, SPECIAL (INNER) (86MM) - $6.64
10
  • PIN A - $8.14
11
  • RETAINER - $5.05
5
  • HUB ASSY., FR. - $52.63
17
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
  • BOLT, WHEEL (THAI MEIRA) - $2.36
  • BOLT, WHEEL (SAGA) - $4.04
  • BOLT, WHEEL (ROCKNEL FASTENER) - $1.32
No. Part # Part # / Description Qty Req. List Price Price
2 43352-SM4-951 43352-SM4-951 / SCREW, BLEEDER

2 $5.42 $3.90
3 43353-SD5-003 43353-SD5-003 / CAP, BLEEDER SCREW

2 $3.28 $2.36
4 44300-SDA-A52 44300-SDA-A52 / BEARING ASSY., FR. HUB (NSK)

2 $122.97 $88.54
5 44600-SDA-A10 44600-SDA-A10 / HUB ASSY., FR.

2 $73.10 $52.63
6 45018-SVB-A01 45018-SVB-A01 / CALIPER SUB-ASSY., R.

1 $214.87 $154.70
7 45019-SVB-A01 45019-SVB-A01 / CALIPER SUB-ASSY., L.

1 $214.87 $154.70
8 45022-SVB-A02 45022-SVB-A02 / PAD SET, FR.

1 $60.73 $43.73
9 45216-S5A-J01 45216-S5A-J01 / PISTON

2 $41.48 $29.87
10 45235-S0A-003 45235-S0A-003 / PIN A

2 $11.30 $8.14
11 45237-S2A-003 45237-S2A-003 / RETAINER

4 $7.02 $5.05
12 45240-SA7-003 45240-SA7-003 / BOLT, FLANGE (8X22)

4 $5.63 $4.06
13 45251-SVB-A50 45251-SVB-A50 / DISK, FR. BRAKE

2 $131.88 $94.96
14 45255-SVB-A01 45255-SVB-A01 / SPLASH GUARD, FR. (16")

2 $33.77 $24.31
15 45262-S0A-003 45262-S0A-003 / PIN B

2 $11.30 $8.14
16 90107-SM4-000 90107-SM4-000 / BOLT, CALIPER MOUNTING (12X21)

4 $0.92 $0.66
17 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

10 $1.83 $1.32
17 90113-S5H-005 90113-S5H-005 / BOLT, WHEEL (THAI MEIRA)

10 $3.28 $2.36
17 90113-SA0-006 90113-SA0-006 / BOLT, WHEEL (SAGA)

10 $5.62 $4.04
17 90113-SM1-005 90113-SM1-005 / BOLT, WHEEL (ROCKNEL FASTENER)

10 $1.83 $1.32
18 90681-SDA-A00 90681-SDA-A00 / CIRCLIP, SPECIAL (INNER) (86MM)

2 $9.22 $6.64
19 93600-06014-0H 93600-06014-0H / SCREW, FLAT (6X14)

4 $0.60 $0.43
20 93892-05012-08 93892-05012-08 / SCREW-WASHER (5X12)

6 $0.68 $0.49
21 01463-S2A-000 01463-S2A-000 / CALIPER SET

2 $29.17 $21.00
22 06455-SVB-A00 06455-SVB-A00 / SHIM SET, FR.

1 $27.02 $19.45
