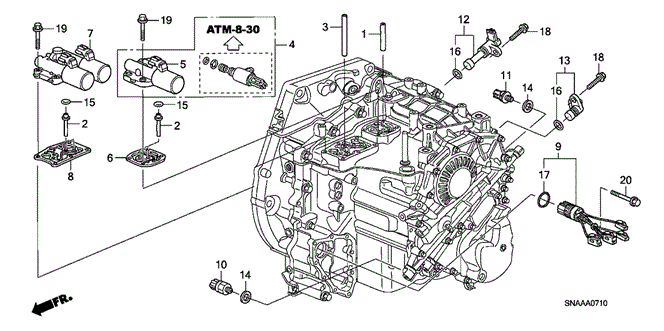

SOLENOID SET, LOCK-UP in TRANSMISSION - AUTOMATIC/AT SOLENOID for 2009 Honda CIVIC SEDAN

SOLENOID SET, LOCK-UP in TRANSMISSION - AUTOMATIC/AT SOLENOID for 2009 Honda CIVIC SEDAN #1
3
  • PIPE (50MM) - $1.90
19
  • BOLT, FLANGE (6X25) - $0.71
9
  • WIRE HARNESS, SOLENOID - $49.36
17
  • O-RING (23.3X2.4) - $1.63
13
  • PICK-UP ASSY. - $13.56
  • PICK-UP ASSY. - $13.56
16
  • O-RING (16X2.1) (NOK) - $1.45
4
  • SOLENOID SET, LOCK-UP - $230.86
1
  • PIPE (35MM) - $2.08
16
  • O-RING (16X2.1) (NOK) - $1.45
15
  • O-RING (7.7X2.3) (ARAI) - $1.20
5
  • SOLENOID ASSY. A, LINEAR - $165.42
11
  • SWITCH ASSY., AT OIL PRESSURE (SAGINOMIYA) - $34.26
2
  • PIPE, JOINT - $7.22
18
  • BOLT, FLANGE (6X18) - $0.64
19
  • BOLT, FLANGE (6X25) - $0.71
6
  • GASKET A, LINEAR SOLENOID - $2.90
2
  • PIPE, JOINT - $7.22
8
  • GASKET B, LINEAR SOLENOID - $2.58
12
  • PICK-UP ASSY. - $14.33
  • PICK-UP ASSY. - $14.33
14
  • GASKET (10MM) - $2.00
7
  • SOLENOID ASSY. B, LINEAR - $189.92
10
  • SWITCH ASSY., AT OIL PRESSURE (TEXAS INSTRUMENTS) - $34.26
15
  • O-RING (7.7X2.3) (ARAI) - $1.20
18
  • BOLT, FLANGE (6X18) - $0.64
20
  • BOLT, FLANGE (6X35) - $0.74
14
  • GASKET (10MM) - $2.00
No. Part # Part # / Description Qty Req. List Price Price
1 22749-PW4-000 22749-PW4-000 / PIPE (35MM)

1 $2.88 $2.08
2 22760-PPW-000 22760-PPW-000 / PIPE, JOINT

6 $10.03 $7.22
3 22775-RPC-000 22775-RPC-000 / PIPE (50MM)

1 $2.63 $1.90
4 28020-RPC-305 28020-RPC-305 / SOLENOID SET, LOCK-UP

0 $320.63 $230.86
5 28250-RPC-003 28250-RPC-003 / SOLENOID ASSY. A, LINEAR

1 $229.75 $165.42
6 28252-RPC-000 28252-RPC-000 / GASKET A, LINEAR SOLENOID

1 $4.03 $2.90
7 28260-RPC-004 28260-RPC-004 / SOLENOID ASSY. B, LINEAR

1 $263.78 $189.92
8 28262-RPC-000 28262-RPC-000 / GASKET B, LINEAR SOLENOID

1 $3.58 $2.58
9 28360-RPC-003 28360-RPC-003 / WIRE HARNESS, SOLENOID

1 $68.55 $49.36
10 28600-RPC-003 28600-RPC-003 / SWITCH ASSY., AT OIL PRESSURE (TEXAS INSTRUMENTS)

1 $47.58 $34.26
11 28600-RPC-004 28600-RPC-004 / SWITCH ASSY., AT OIL PRESSURE (SAGINOMIYA)

1 $47.58 $34.26
12 28810-RPC-013 28810-RPC-013 / PICK-UP ASSY.

1 $19.90 $14.33
12 28810-RPC-013 28810-RPC-013 / PICK-UP ASSY.

1 $19.90 $14.33
13 28820-RPC-013 28820-RPC-013 / PICK-UP ASSY.

1 $18.83 $13.56
13 28820-RPC-013 28820-RPC-013 / PICK-UP ASSY.

1 $18.83 $13.56
14 90471-PW7-A00 90471-PW7-A00 / GASKET (10MM)

2 $2.78 $2.00
15 91301-PC9-003 91301-PC9-003 / O-RING (7.7X2.3) (ARAI)

6 $1.67 $1.20
16 91309-PX4-003 91309-PX4-003 / O-RING (16X2.1) (NOK)

2 $2.02 $1.45
17 91329-PRP-003 91329-PRP-003 / O-RING (23.3X2.4)

1 $2.27 $1.63
18 95701-06018-08 95701-06018-08 / BOLT, FLANGE (6X18)

2 $0.88 $0.64
19 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

10 $0.98 $0.71
20 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

1 $1.03 $0.74
