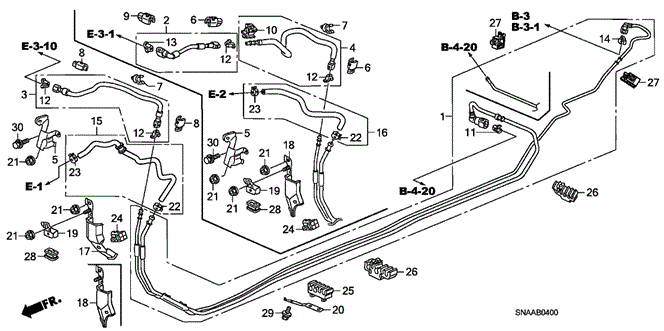

PIPE, FUEL in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE for 2009 Honda CIVIC SEDAN

PIPE, FUEL in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE for 2009 Honda CIVIC SEDAN #1
23
  • CLAMP, TUBE (D13.0) - $1.57
5
  • BRACKET, FUEL FEED HOSE - $3.68
12
  • RETAINER (GREEN) (TOKAI) - $1.68
7
  • CLAMP, FUEL HOSE (NATURAL) - $1.74
25
  • CLAMP D, FUEL PIPE - $3.47
7
  • CLAMP, FUEL HOSE (NATURAL) - $1.74
19
  • STAY B, FUEL PIPE - $2.20
30
  • BOLT, FLANGE (6X12) - $0.72
28
  • RUBBER E, FUEL PIPE INSULATOR - $19.57
21
  • NUT, PAINT CUTTING (6MM) - $1.20
24
  • CLAMP A, FUEL PIPE - $2.95
8
  • HOLDER A, FUEL CONNECTOR (BEIGE) - $1.81
  • COVER A, FUEL CONNECTOR (LIGHT GRAY) - $2.28
29
  • BOLT-WASHER (6X16) - $0.73
1
  • PIPE, FUEL - $29.05
24
  • CLAMP A, FUEL PIPE - $2.95
5
  • BRACKET, FUEL FEED HOSE - $3.68
21
  • NUT, PAINT CUTTING (6MM) - $1.20
21
  • NUT, PAINT CUTTING (6MM) - $1.20
11
  • RETAINER (WHITE) (SANOH) - $10.02
14
  • RETAINER (WHITE) (SANOH) - $1.28
22
  • CLAMP, FUEL TUBE (D14.5) - $2.24
22
  • CLAMP, FUEL TUBE (D14.5) - $2.24
21
  • NUT, PAINT CUTTING (6MM) - $1.20
26
  • CLAMP C, FUEL PIPE - $3.18
27
  • CLAMP F, FUEL PIPE - $1.00
12
  • RETAINER (GREEN) (TOKAI) - $1.68
30
  • BOLT, FLANGE (6X12) - $0.72
28
  • RUBBER E, FUEL PIPE INSULATOR - $19.57
15
  • HOSE ASSY., FUEL PURGE - $27.05
23
  • CLAMP, TUBE (D13.0) - $1.57
20
  • STAY B, FUEL PIPE - $1.85
21
  • NUT, PAINT CUTTING (6MM) - $1.20
27
  • CLAMP F, FUEL PIPE - $1.00
17
  • PROTECTOR A, FUEL PIPE - $5.00
12
  • RETAINER (GREEN) (TOKAI) - $1.68
26
  • CLAMP C, FUEL PIPE - $3.18
19
  • STAY B, FUEL PIPE - $2.20
8
  • HOLDER A, FUEL CONNECTOR (BEIGE) - $1.81
  • COVER A, FUEL CONNECTOR (LIGHT GRAY) - $2.28
3
  • HOSE, FUEL FEED - $12.78
  • HOSE, FUEL FEED - $17.50
21
  • NUT, PAINT CUTTING (6MM) - $1.20
12
  • RETAINER (GREEN) (TOKAI) - $1.68
No. Part # Part # / Description Qty Req. List Price Price
1 16051-SNA-A02 16051-SNA-A02 / PIPE, FUEL

1 $40.35 $29.05
3 16722-RNA-A02 16722-RNA-A02 / HOSE, FUEL FEED

1 $17.75 $12.78
3 16722-RNA-A51 16722-RNA-A51 / HOSE, FUEL FEED

1 $24.30 $17.50
5 16723-RNA-A00 16723-RNA-A00 / BRACKET, FUEL FEED HOSE

1 $5.12 $3.68
7 16725-RAC-003 16725-RAC-003 / CLAMP, FUEL HOSE (NATURAL)

1 $2.42 $1.74
8 16725-R40-A00 16725-R40-A00 / HOLDER A, FUEL CONNECTOR (BEIGE)

2 $2.52 $1.81
8 16725-RAA-004 16725-RAA-004 / COVER A, FUEL CONNECTOR (LIGHT GRAY)

2 $3.17 $2.28
11 17711-SNA-A01 17711-SNA-A01 / RETAINER (WHITE) (SANOH)

1 $13.92 $10.02
12 17711-S0X-A31 17711-S0X-A31 / RETAINER (GREEN) (TOKAI)

2 $2.33 $1.68
14 17711-S84-004 17711-S84-004 / RETAINER (WHITE) (SANOH)

1 $1.78 $1.28
15 17726-SNA-A01 17726-SNA-A01 / HOSE ASSY., FUEL PURGE

1 $37.57 $27.05
17 17761-SNA-A00 17761-SNA-A00 / PROTECTOR A, FUEL PIPE

1 $6.95 $5.00
19 17762-SDA-A00 17762-SDA-A00 / STAY B, FUEL PIPE

1 $3.05 $2.20
20 17762-SNA-A00 17762-SNA-A00 / STAY B, FUEL PIPE

1 $2.57 $1.85
21 90361-SV4-003 90361-SV4-003 / NUT, PAINT CUTTING (6MM)

3 $1.67 $1.20
22 91406-SDA-003 91406-SDA-003 / CLAMP, FUEL TUBE (D14.5)

1 $3.12 $2.24
23 91408-SDB-000 91408-SDB-000 / CLAMP, TUBE (D13.0)

1 $2.18 $1.57
24 91595-SNA-A01 91595-SNA-A01 / CLAMP A, FUEL PIPE

1 $4.10 $2.95
25 91597-SDA-A01 91597-SDA-A01 / CLAMP D, FUEL PIPE

1 $4.82 $3.47
26 91596-SDA-A01 91596-SDA-A01 / CLAMP C, FUEL PIPE

3 $4.42 $3.18
27 91598-SNA-A01 91598-SNA-A01 / CLAMP F, FUEL PIPE

1 $1.38 $1.00
28 91599-SDA-A00 91599-SDA-A00 / RUBBER E, FUEL PIPE INSULATOR

1 $27.18 $19.57
29 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

1 $1.02 $0.73
30 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.72
