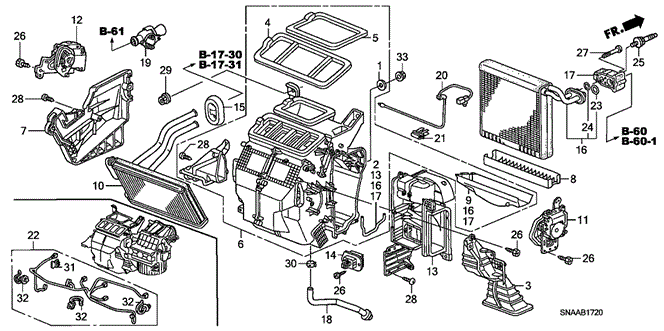

CORE SUB-ASSY., HEATER in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT for 2009 Honda CIVIC SEDAN

CORE SUB-ASSY., HEATER in ELECTRICAL / EXHAUST / HEATER / FUEL/HEATER UNIT for 2009 Honda CIVIC SEDAN #1
7
  • COVER, HEATER PIPE - $4.09
14
  • TRANSISTOR, POWER - $34.32
13
  • JOINT SET, DUCT - $5.95
3
  • DUCT ASSY., PASSENGER HEATER - $3.46
6
  • HEATER SUB-ASSY. - $110.39
11
  • MOTOR ASSY., MODE - $34.75
26
  • SCREW, TAPPING (4X16) - $0.96
22
  • SUB-HARNESS, AIR CONDITIONER - $25.44
2
  • SEAL A - $0.62
28
  • SCREW, TAPPING (4X16) - $1.30
28
  • SCREW, TAPPING (4X16) - $1.30
4
  • GASKET SET - $1.30
28
  • SCREW, TAPPING (4X16) - $1.30
26
  • SCREW, TAPPING (4X16) - $0.96
32
  • CLIP, HARNESS BAND (96.9MM) (NATURAL) - $2.88
12
  • MOTOR ASSY., AIR MIX - $27.66
  • MOTOR ASSY., AIR MIX - $34.97
26
  • SCREW, TAPPING (4X16) - $0.96
32
  • CLIP, HARNESS BAND (96.9MM) (NATURAL) - $2.88
1
  • GASKET, HEATER - $1.38
9
  • INSULATOR, EVAPORATOR (LOWER) - $3.04
10
  • CORE SUB-ASSY., HEATER - $186.84
  • CORE SUB-ASSY., HEATER - $67.81
13
  • JOINT SET, DUCT - $5.95
29
  • NUT-WASHER (6MM) (PAINT CUTTING) - $2.00
33
  • NUT-WASHER (8MM) - $0.59
31
  • CLIP, CONNECTOR (NATURAL) - $1.62
26
  • SCREW, TAPPING (4X16) - $0.96
32
  • CLIP, HARNESS BAND (96.9MM) (NATURAL) - $2.88
5
  • GASKET - $0.50
15
  • GROMMET, HEATER PIPE - $5.15
No. Part # Part # / Description Qty Req. List Price Price
1 39248-692-003 39248-692-003 / GASKET, HEATER

1 $1.92 $1.38
2 79021-SNA-A01 79021-SNA-A01 / SEAL A

1 $0.87 $0.62
3 79102-SNA-A01 79102-SNA-A01 / DUCT ASSY., PASSENGER HEATER

1 $4.80 $3.46
4 79103-SNA-A01 79103-SNA-A01 / GASKET SET

1 $1.80 $1.30
5 79104-SNA-A01 79104-SNA-A01 / GASKET

1 $0.70 $0.50
6 79106-SNA-Y02 79106-SNA-Y02 / HEATER SUB-ASSY.

1 $153.32 $110.39
7 79107-SNA-A01 79107-SNA-A01 / COVER, HEATER PIPE

1 $5.68 $4.09
9 79109-SNA-A01 79109-SNA-A01 / INSULATOR, EVAPORATOR (LOWER)

1 $4.22 $3.04
10 79110-SNA-A01 79110-SNA-A01 / CORE SUB-ASSY., HEATER

1 $259.50 $186.84
10 79110-SNE-A01 79110-SNE-A01 / CORE SUB-ASSY., HEATER

1 $94.18 $67.81
11 79140-SNA-A01 79140-SNA-A01 / MOTOR ASSY., MODE

1 $48.27 $34.75
12 79160-SNA-A01 79160-SNA-A01 / MOTOR ASSY., AIR MIX

1 $38.42 $27.66
12 79160-SNE-A01 79160-SNE-A01 / MOTOR ASSY., AIR MIX

1 $48.57 $34.97
13 79308-SNA-A01 79308-SNA-A01 / JOINT SET, DUCT

1 $8.27 $5.95
14 79330-SNA-A01 79330-SNA-A01 / TRANSISTOR, POWER

1 $47.67 $34.32
15 79731-S5A-000 79731-S5A-000 / GROMMET, HEATER PIPE

1 $7.15 $5.15
22 80650-SNA-A01 80650-SNA-A01 / SUB-HARNESS, AIR CONDITIONER

1 $35.33 $25.44
26 90127-S84-003 90127-S84-003 / SCREW, TAPPING (4X16)

10 $1.33 $0.96
28 90127-SX0-003 90127-SX0-003 / SCREW, TAPPING (4X16)

28 $1.80 $1.30
29 90321-SV4-003 90321-SV4-003 / NUT-WASHER (6MM) (PAINT CUTTING)

2 $2.78 $2.00
31 91533-S04-003 91533-S04-003 / CLIP, CONNECTOR (NATURAL)

1 $2.25 $1.62
32 91540-S0A-003 91540-S0A-003 / CLIP, HARNESS BAND (96.9MM) (NATURAL)

5 $4.00 $2.88
33 94071-08080 94071-08080 / NUT-WASHER (8MM)

1 $0.82 $0.59
