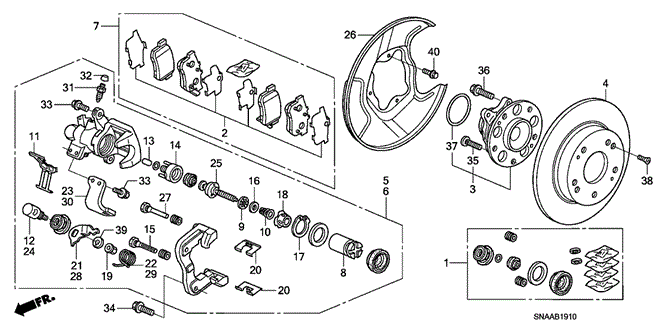

CALIPER SUB-ASSY., L. RR. in CHASSIS/REAR BRAKE (DISK) for 2009 Honda CIVIC SEDAN

CALIPER SUB-ASSY., L. RR. in CHASSIS/REAR BRAKE (DISK) for 2009 Honda CIVIC SEDAN #1
19
  • NUT, PARKING - $4.19
2
  • SHIM SET, RR. - $5.72
14
  • PISTON, SLEEVE - $9.80
28
  • LEVER, L. - $6.89
33
  • BOLT, FLANGE (8X22) - $3.92
11
  • SPRING, PAD - $7.04
36
  • BOLT, FLANGE (10X53) - $1.87
29
  • SPRING, L. RETURN - $4.34
13
  • ROD - $3.26
3
  • BEARING ASSY., RR. HUB UNIT (NTN) - $117.77
  • BEARING ASSY., RR. HUB UNIT (NSK) - $117.77
18
  • GUIDE, SPRING - $3.34
15
  • PIN A - $4.72
26
  • SPLASH GUARD, RR. - $19.58
25
  • BOLT, ADJUSTER - $9.28
38
  • SCREW, FLAT (6X14) - $0.43
8
  • PISTON ASSY. - $40.27
30
  • ARM, L. - $8.17
27
  • PIN B - $2.62
22
  • SPRING, R. RETURN - $4.34
33
  • BOLT, FLANGE (8X22) - $3.92
7
  • PAD SET, RR. - $46.80
1
  • CALIPER SET, RR. - $21.00
32
  • CAP, BLEEDER SCREW - $2.36
21
  • LEVER, R. - $6.89
20
  • RETAINER - $5.52
17
  • RING, RETAINING - $4.13
9
  • BEARING A - $6.44
24
  • SHAFT B - $12.94
10
  • SPRING B, ADJUSTING - $3.12
4
  • DISK, RR. BRAKE - $69.53
5
  • CALIPER SUB-ASSY., R. RR. - $159.02
40
  • BOLT, FLANGE (6X12) - $0.64
31
  • SCREW, BLEEDER - $3.90
12
  • SHAFT A - $12.94
37
  • O-RING (63X2.4) (NTN) - $2.72
  • O-RING (63X2.4) (NSK) - $1.01
39
  • WASHER, SPRING (10MM) - $0.46
23
  • ARM, R. - $8.17
16
  • SPACER - $3.14
20
  • RETAINER - $5.52
35
  • BOLT, WHEEL (THAI MEIRA) - $2.36
  • BOLT, WHEEL (SAGA) - $4.04
  • BOLT, WHEEL (ROCKNEL FASTENER) - $1.32
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
6
  • CALIPER SUB-ASSY., L. RR. - $159.02
34
  • BOLT, FLANGE (10X30) - $3.04
No. Part # Part # / Description Qty Req. List Price Price
1 01473-SV4-000 01473-SV4-000 / CALIPER SET, RR.

2 $29.17 $21.00
2 06435-S2A-000 06435-S2A-000 / SHIM SET, RR.

1 $7.94 $5.72
3 42200-SNA-A52 42200-SNA-A52 / BEARING ASSY., RR. HUB UNIT (NTN)

2 $163.57 $117.77
3 42200-SNA-A52 42200-SNA-A52 / BEARING ASSY., RR. HUB UNIT (NSK)

2 $163.57 $117.77
4 42510-SNE-A00 42510-SNE-A00 / DISK, RR. BRAKE

2 $96.57 $69.53
5 43018-SNA-A10 43018-SNA-A10 / CALIPER SUB-ASSY., R. RR.

1 $220.87 $159.02
6 43019-SNA-A10 43019-SNA-A10 / CALIPER SUB-ASSY., L. RR.

1 $220.87 $159.02
7 43022-S5A-J00 43022-S5A-J00 / PAD SET, RR.

1 $65.00 $46.80
8 43215-SM4-951 43215-SM4-951 / PISTON ASSY.

2 $55.93 $40.27
9 43223-SD2-932 43223-SD2-932 / BEARING A

2 $8.95 $6.44
10 43224-SD2-931 43224-SD2-931 / SPRING B, ADJUSTING

2 $4.33 $3.12
11 43227-SG0-013 43227-SG0-013 / SPRING, PAD

2 $9.78 $7.04
12 43228-SD2-933 43228-SD2-933 / SHAFT A

1 $17.97 $12.94
13 43229-SD2-931 43229-SD2-931 / ROD

2 $4.53 $3.26
14 43233-S5A-J01 43233-S5A-J01 / PISTON, SLEEVE

2 $13.62 $9.80
15 43235-S84-A51 43235-S84-A51 / PIN A

2 $6.55 $4.72
16 43236-S04-003 43236-S04-003 / SPACER

2 $4.37 $3.14
17 43238-SF1-003 43238-SF1-003 / RING, RETAINING

2 $5.73 $4.13
18 43241-S5A-003 43241-S5A-003 / GUIDE, SPRING

2 $4.63 $3.34
19 43243-SD2-931 43243-SD2-931 / NUT, PARKING

2 $5.82 $4.19
20 43244-SG0-003 43244-SG0-003 / RETAINER

4 $7.67 $5.52
21 43245-SNA-A01 43245-SNA-A01 / LEVER, R.

1 $9.57 $6.89
22 43246-SD2-931 43246-SD2-931 / SPRING, R. RETURN

1 $6.03 $4.34
23 43247-SNA-A01 43247-SNA-A01 / ARM, R.

1 $11.35 $8.17
24 43248-SD2-933 43248-SD2-933 / SHAFT B

1 $17.97 $12.94
25 43249-S04-003 43249-S04-003 / BOLT, ADJUSTER

2 $12.88 $9.28
26 43253-SNA-A00 43253-SNA-A00 / SPLASH GUARD, RR.

2 $27.20 $19.58
27 43262-S84-A51 43262-S84-A51 / PIN B

2 $3.63 $2.62
28 43265-SNA-A01 43265-SNA-A01 / LEVER, L.

1 $9.57 $6.89
29 43266-SD2-931 43266-SD2-931 / SPRING, L. RETURN

1 $6.03 $4.34
30 43267-SNA-A01 43267-SNA-A01 / ARM, L.

1 $11.35 $8.17
31 43352-SM4-951 43352-SM4-951 / SCREW, BLEEDER

2 $5.42 $3.90
32 43353-SD5-003 43353-SD5-003 / CAP, BLEEDER SCREW

2 $3.28 $2.36
33 45240-SC2-003 45240-SC2-003 / BOLT, FLANGE (8X22)

8 $5.45 $3.92
34 90103-SV4-013 90103-SV4-013 / BOLT, FLANGE (10X30)

4 $4.22 $3.04
35 90113-S5H-005 90113-S5H-005 / BOLT, WHEEL (THAI MEIRA)

10 $3.28 $2.36
35 90113-SA0-006 90113-SA0-006 / BOLT, WHEEL (SAGA)

10 $5.62 $4.04
35 90113-SM1-005 90113-SM1-005 / BOLT, WHEEL (ROCKNEL FASTENER)

10 $1.83 $1.32
35 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

10 $1.83 $1.32
36 90163-SNA-000 90163-SNA-000 / BOLT, FLANGE (10X53)

8 $2.60 $1.87
37 91352-SNA-951 91352-SNA-951 / O-RING (63X2.4) (NTN)

2 $3.78 $2.72
37 91352-SNA-952 91352-SNA-952 / O-RING (63X2.4) (NSK)

2 $1.40 $1.01
38 93600-06014-0H 93600-06014-0H / SCREW, FLAT (6X14)

4 $0.60 $0.43
39 94111-10800 94111-10800 / WASHER, SPRING (10MM)

2 $0.63 $0.46
40 95701-06012-05 95701-06012-05 / BOLT, FLANGE (6X12)

6 $0.88 $0.64
