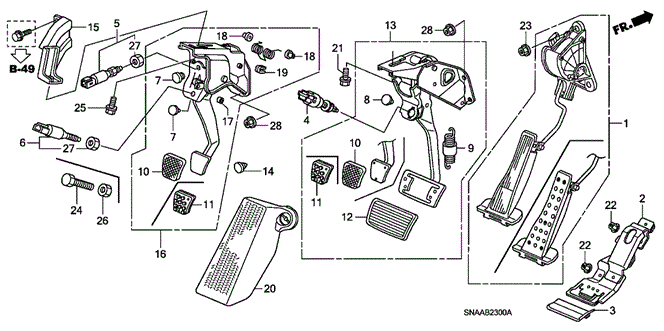

PEDAL ASSY., ACCELERATOR in CHASSIS/PEDAL for 2009 Honda CIVIC SEDAN

PEDAL ASSY., ACCELERATOR in CHASSIS/PEDAL for 2009 Honda CIVIC SEDAN #1
22
  • NUT, PAINT CUTTING (6MM) - $2.18
6
  • SWITCH ASSY., CLUTCH - $22.94
28
  • NUT, FLANGE (8MM) - $0.18
2
  • STOPPER, ACCELERATOR STROKE - $25.20
7
  • PAD, PEDAL STOPPER - $6.72
18
  • BUSH A, CLUTCH ASSISTANT - $2.30
21
  • BOLT, FLANGE (8X23) - $0.38
27
  • NUT, HEX. (12MM) - $0.55
15
  • BRACKET, CLUTCH PEDAL (UPPER) - $100.00
3
  • CLIP, ACCELERATOR PEDAL - $5.29
14
  • STOPPER, CLUTCH PEDAL - $5.12
16
  • PEDAL, CLUTCH - $75.86
19
  • BUSH B, ASSISTANT - $2.00
22
  • NUT, PAINT CUTTING (6MM) - $2.18
23
  • NUT, PAINT CUTTING (8MM) - $1.01
18
  • BUSH A, CLUTCH ASSISTANT - $2.30
13
  • PEDAL ASSY., BRAKE - $71.94
10
  • COVER, PEDAL - $4.26
27
  • NUT, HEX. (12MM) - $0.55
28
  • NUT, FLANGE (8MM) - $0.18
1
  • PEDAL ASSY., ACCELERATOR - $157.54
7
  • PAD, PEDAL STOPPER - $6.72
4
  • SWITCH ASSY., STOP & CRUISE (PANASONIC) - $4.37
  • SWITCH ASSY., STOP & CRUISE (PANASONIC) - $4.37
5
  • SWITCH ASSY., CLUTCH (INHIBITER) - $36.62
8
  • PAD, PEDAL STOPPER - $1.75
9
  • SPRING ASSY., PEDAL RETURN - $8.69
20
  • BRACKET, FOOTREST - $4.51
17
  • BUSH, PEDAL PIN - $2.32
25
  • BOLT-WASHER (8X16) - $0.76
10
  • COVER, PEDAL - $4.26
No. Part # Part # / Description Qty Req. List Price Price
1 17800-SNB-G71 17800-SNB-G71 / PEDAL ASSY., ACCELERATOR

1 $218.80 $157.54
2 17818-SNB-G71 17818-SNB-G71 / STOPPER, ACCELERATOR STROKE

1 $35.00 $25.20
3 17820-SNA-A72 17820-SNA-A72 / CLIP, ACCELERATOR PEDAL

1 $7.35 $5.29
4 36750-SMA-013 36750-SMA-013 / SWITCH ASSY., STOP & CRUISE (PANASONIC)

1 $6.07 $4.37
4 36750-SMA-013 36750-SMA-013 / SWITCH ASSY., STOP & CRUISE (PANASONIC)

1 $6.07 $4.37
5 35710-SE3-A01 35710-SE3-A01 / SWITCH ASSY., CLUTCH (INHIBITER)

1 $50.87 $36.62
6 36760-SM4-003 36760-SM4-003 / SWITCH ASSY., CLUTCH

1 $31.87 $22.94
7 46505-SAA-J00 46505-SAA-J00 / PAD, PEDAL STOPPER

2 $9.33 $6.72
8 46505-SA5-000 46505-SA5-000 / PAD, PEDAL STOPPER

1 $2.43 $1.75
9 46530-SNA-A01 46530-SNA-A01 / SPRING ASSY., PEDAL RETURN

1 $12.07 $8.69
10 46545-SA5-000 46545-SA5-000 / COVER, PEDAL

2 $5.92 $4.26
13 46600-SNA-A02 46600-SNA-A02 / PEDAL ASSY., BRAKE

1 $99.92 $71.94
14 46905-SK7-000 46905-SK7-000 / STOPPER, CLUTCH PEDAL

1 $7.12 $5.12
15 46908-SNA-A01 46908-SNA-A01 / BRACKET, CLUTCH PEDAL (UPPER)

1 $138.88 $100.00
16 46910-SNV-A01 46910-SNV-A01 / PEDAL, CLUTCH

1 $105.37 $75.86
17 46911-SD4-930 46911-SD4-930 / BUSH, PEDAL PIN

1 $3.22 $2.32
18 46981-S2A-003 46981-S2A-003 / BUSH A, CLUTCH ASSISTANT

2 $3.20 $2.30
19 46982-S2A-003 46982-S2A-003 / BUSH B, ASSISTANT

1 $2.78 $2.00
20 46991-SNA-A01 46991-SNA-A01 / BRACKET, FOOTREST

1 $6.27 $4.51
21 90104-SFE-003 90104-SFE-003 / BOLT, FLANGE (8X23)

1 $0.53 $0.38
22 90301-SV7-000 90301-SV7-000 / NUT, PAINT CUTTING (6MM)

2 $3.03 $2.18
23 90361-S3C-003 90361-S3C-003 / NUT, PAINT CUTTING (8MM)

2 $1.40 $1.01
25 93404-08016-08 93404-08016-08 / BOLT-WASHER (8X16)

1 $1.05 $0.76
27 94002-12080-0S 94002-12080-0S / NUT, HEX. (12MM)

2 $0.77 $0.55
28 94050-08080 94050-08080 / NUT, FLANGE (8MM)

6 $0.25 $0.18
