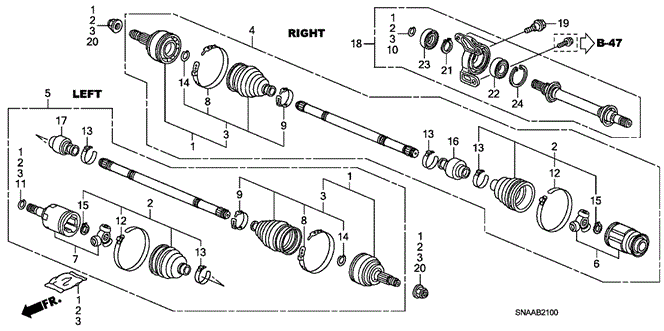

DRIVESHAFT ASSY., R. in CHASSIS/DRIVESHAFT - HALF SHAFT (1.8L) (MT) for 2009 Honda CIVIC SEDAN

DRIVESHAFT ASSY., R. in CHASSIS/DRIVESHAFT - HALF SHAFT (1.8L) (MT) for 2009 Honda CIVIC SEDAN #1
2
  • BOOT SET, INBOARD - $24.06
  • BOOT SET, INBOARD (GKN) - $24.06
10
  • SET-RING (28X2.0) - $1.76
  • SET-RING (28X2.0) - $1.76
1
  • JOINT SET, OUTBOARD - $222.83
  • JOINT SET, OUTBOARD (GKN) - $94.10
23
  • SEAL, HALF SHAFT (OUTER) (NOK) - $5.78
12
  • BAND, JOINT BOOT (DOUBLE ROLLED BAND) - $7.50
2
  • BOOT SET, INBOARD - $24.06
  • BOOT SET, INBOARD (GKN) - $24.06
4
  • DRIVESHAFT ASSY., R. - $451.50
  • DRIVESHAFT ASSY., R. - $150.00
13
  • BAND, SHAFT BOOT (DOUBLE ROLLED BAND) - $6.18
3
  • BOOT SET, OUTBOARD - $24.06
  • BOOT SET, OUTBOARD (GKN) - $24.06
3
  • BOOT SET, OUTBOARD - $24.06
  • BOOT SET, OUTBOARD (GKN) - $24.06
14
  • RING B, STOPPER - $1.55
  • RING B, STOPPER - $1.43
3
  • BOOT SET, OUTBOARD - $24.06
  • BOOT SET, OUTBOARD (GKN) - $24.06
1
  • JOINT SET, OUTBOARD - $222.83
  • JOINT SET, OUTBOARD (GKN) - $94.10
8
  • BAND B, DRIVESHAFT (NIPPON HATSUJO) - $7.45
  • BAND, OUTBOARD BOOT (GKN) - $1.21
20
  • NUT, SPINDLE (22MM) - $1.86
14
  • RING B, STOPPER - $1.55
  • RING B, STOPPER - $1.43
24
  • CIRCLIP (INNER) (55MM) - $1.48
21
  • CIRCLIP (OUTER) (33MM) - $3.26
20
  • NUT, SPINDLE (22MM) - $1.86
2
  • BOOT SET, INBOARD - $24.06
  • BOOT SET, INBOARD (GKN) - $24.06
3
  • BOOT SET, OUTBOARD - $24.06
  • BOOT SET, OUTBOARD (GKN) - $24.06
18
  • SHAFT ASSY., HALF (MT) - $213.36
11
  • SET-RING (28X2.0) - $1.76
  • SET-RING (28X2.0) - $1.76
  • SET-RING (28X2.0) - $3.00
2
  • BOOT SET, INBOARD - $24.06
  • BOOT SET, INBOARD (GKN) - $24.06
15
  • CIRCLIP (24MM) (GKN) - $2.60
  • CIRCLIP - $1.21
1
  • JOINT SET, OUTBOARD - $222.83
  • JOINT SET, OUTBOARD (GKN) - $94.10
7
  • JOINT, INBOARD - $268.38
  • JOINT, INBOARD - $108.59
12
  • BAND, JOINT BOOT (DOUBLE ROLLED BAND) - $7.50
13
  • BAND, SHAFT BOOT (DOUBLE ROLLED BAND) - $6.18
16
  • DAMPER, DYNAMIC - $18.42
  • DAMPER, DYNAMIC - $14.09
9
  • BAND C, DRIVESHAFT (NIPPON HATSUJO) - $4.74
  • BAND, OUTBOARD SHAFT BOOT (GKN) - $1.21
1
  • JOINT SET, OUTBOARD - $222.83
  • JOINT SET, OUTBOARD (GKN) - $94.10
2
  • BOOT SET, INBOARD - $24.06
  • BOOT SET, INBOARD (GKN) - $24.06
19
  • BOLT, HEX. (10X1.25) - $4.90
3
  • BOOT SET, OUTBOARD - $24.06
  • BOOT SET, OUTBOARD (GKN) - $24.06
9
  • BAND C, DRIVESHAFT (NIPPON HATSUJO) - $4.74
  • BAND, OUTBOARD SHAFT BOOT (GKN) - $1.21
6
  • JOINT, INBOARD - $199.87
  • JOINT, INBOARD - $108.59
3
  • BOOT SET, OUTBOARD - $24.06
  • BOOT SET, OUTBOARD (GKN) - $24.06
5
  • DRIVESHAFT ASSY., L. - $451.50
  • DRIVESHAFT ASSY., L. - $150.00
1
  • JOINT SET, OUTBOARD - $222.83
  • JOINT SET, OUTBOARD (GKN) - $94.10
1
  • JOINT SET, OUTBOARD - $222.83
  • JOINT SET, OUTBOARD (GKN) - $94.10
2
  • BOOT SET, INBOARD - $24.06
  • BOOT SET, INBOARD (GKN) - $24.06
3
  • BOOT SET, OUTBOARD - $24.06
  • BOOT SET, OUTBOARD (GKN) - $24.06
2
  • BOOT SET, INBOARD - $24.06
  • BOOT SET, INBOARD (GKN) - $24.06
1
  • JOINT SET, OUTBOARD - $222.83
  • JOINT SET, OUTBOARD (GKN) - $94.10
8
  • BAND B, DRIVESHAFT (NIPPON HATSUJO) - $7.45
  • BAND, OUTBOARD BOOT (GKN) - $1.21
13
  • BAND, SHAFT BOOT (DOUBLE ROLLED BAND) - $6.18
17
  • DAMPER, DYNAMIC - $18.42
  • DAMPER, DYNAMIC (GKN) - $14.02
13
  • BAND, SHAFT BOOT (DOUBLE ROLLED BAND) - $6.18
22
  • BEARING, HALF SHAFT (NTN) - $27.14
15
  • CIRCLIP (24MM) (GKN) - $2.60
  • CIRCLIP - $1.21
No. Part # Part # / Description Qty Req. List Price Price
1 44014-SNA-N00 44014-SNA-N00 / JOINT SET, OUTBOARD

2 $309.48 $222.83
1 44014-SNE-A22 44014-SNE-A22 / JOINT SET, OUTBOARD (GKN)

2 $130.70 $94.10
2 44017-S0A-030 44017-S0A-030 / BOOT SET, INBOARD

2 $33.42 $24.06
2 44017-SNE-A21 44017-SNE-A21 / BOOT SET, INBOARD (GKN)

2 $33.42 $24.06
3 44018-S6M-010 44018-S6M-010 / BOOT SET, OUTBOARD

2 $33.42 $24.06
3 44018-SNE-A22 44018-SNE-A22 / BOOT SET, OUTBOARD (GKN)

2 $33.42 $24.06
4 44305-SNA-N01 44305-SNA-N01 / DRIVESHAFT ASSY., R.

1 $627.08 $451.50
4 44305-SNE-A22 44305-SNE-A22 / DRIVESHAFT ASSY., R.

1 $208.33 $150.00
5 44306-SNA-N00 44306-SNA-N00 / DRIVESHAFT ASSY., L.

1 $627.08 $451.50
5 44306-SNE-A21 44306-SNE-A21 / DRIVESHAFT ASSY., L.

1 $208.33 $150.00
6 44310-SMG-305 44310-SMG-305 / JOINT, INBOARD

1 $277.61 $199.87
6 44310-SNE-A22 44310-SNE-A22 / JOINT, INBOARD

1 $150.82 $108.59
7 44310-S0A-300 44310-S0A-300 / JOINT, INBOARD

1 $372.75 $268.38
7 44310-SNE-A31 44310-SNE-A31 / JOINT, INBOARD

1 $150.82 $108.59
8 44327-S04-A01 44327-S04-A01 / BAND B, DRIVESHAFT (NIPPON HATSUJO)

2 $10.35 $7.45
8 44317-SNE-A21 44317-SNE-A21 / BAND, OUTBOARD BOOT (GKN)

2 $1.68 $1.21
9 44329-S04-A01 44329-S04-A01 / BAND C, DRIVESHAFT (NIPPON HATSUJO)

2 $6.58 $4.74
9 44318-SNE-A31 44318-SNE-A31 / BAND, OUTBOARD SHAFT BOOT (GKN)

2 $1.68 $1.21
10 44319-S84-300 44319-S84-300 / SET-RING (28X2.0)

1 $2.45 $1.76
11 44319-S84-300 44319-S84-300 / SET-RING (28X2.0)

1 $2.45 $1.76
11 44319-S84-300 44319-S84-300 / SET-RING (28X2.0)

1 $2.45 $1.76
11 44319-S1A-E01 44319-S1A-E01 / SET-RING (28X2.0)

1 $4.17 $3.00
12 44327-SV4-305 44327-SV4-305 / BAND, JOINT BOOT (DOUBLE ROLLED BAND)

2 $10.42 $7.50
13 44329-SV4-305 44329-SV4-305 / BAND, SHAFT BOOT (DOUBLE ROLLED BAND)

4 $8.58 $6.18
14 44337-SA2-300 44337-SA2-300 / RING B, STOPPER

2 $2.15 $1.55
14 44337-SNE-A21 44337-SNE-A21 / RING B, STOPPER

2 $1.98 $1.43
15 44338-SR1-003 44338-SR1-003 / CIRCLIP (24MM) (GKN)

2 $3.62 $2.60
15 44338-SNE-A21 44338-SNE-A21 / CIRCLIP

2 $1.68 $1.21
16 44351-SNA-N01 44351-SNA-N01 / DAMPER, DYNAMIC

1 $25.58 $18.42
16 44351-SNE-A21 44351-SNE-A21 / DAMPER, DYNAMIC

1 $19.57 $14.09
17 44351-SNA-N11 44351-SNA-N11 / DAMPER, DYNAMIC

1 $25.58 $18.42
17 44351-SNE-A31 44351-SNE-A31 / DAMPER, DYNAMIC (GKN)

1 $19.47 $14.02
18 44500-SNA-A00 44500-SNA-A00 / SHAFT ASSY., HALF (MT)

1 $296.33 $213.36
19 90102-SF1-000 90102-SF1-000 / BOLT, HEX. (10X1.25)

2 $6.80 $4.90
20 90305-692-010 90305-692-010 / NUT, SPINDLE (22MM)

2 $2.58 $1.86
21 90681-SR3-000 90681-SR3-000 / CIRCLIP (OUTER) (33MM)

1 $4.53 $3.26
22 91057-SR3-008 91057-SR3-008 / BEARING, HALF SHAFT (NTN)

1 $37.70 $27.14
23 91260-SDB-A01 91260-SDB-A01 / SEAL, HALF SHAFT (OUTER) (NOK)

1 $8.03 $5.78
24 94520-55000 94520-55000 / CIRCLIP (INNER) (55MM)

1 $2.05 $1.48
