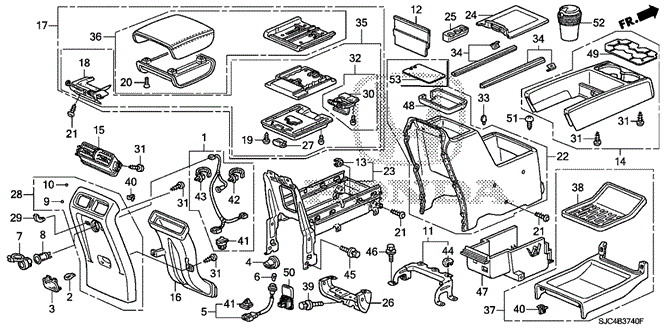

HOUSING ASSY., CONSOLE *NH361L* (GRAY) in INTERIOR / BUMPER/CONSOLE for 2007 Honda RIDGELINE

HOUSING ASSY., CONSOLE *NH361L* (GRAY) in INTERIOR / BUMPER/CONSOLE for 2007 Honda RIDGELINE #1
7
  • CAP ASSY. *YR308L* (BEIGE) - $9.80
  • CAP ASSY. *NH361L* (GRAY) - $9.80
28
  • HOUSING ASSY., GARNISH *NH361L* (GRAY) - $88.90
  • HOUSING ASSY., GARNISH *YR308L* (BEIGE) - $88.90
31
  • SCREW, TAPPING (3.5X10) (PO) - $2.39
49
  • RETAINER, CUP - $5.06
21
  • SCREW, TAPPING (4.2X12) (METAL) - $1.96
9
  • SEAL A (CLOSE) - $0.86
41
  • CLIP, CONNECTOR (NATURAL) - $1.62
46
  • BOLT-WASHER (8X20) - $0.82
18
  • HINGE, ARMREST - $25.10
37
  • TRAY ASSY., CENTER FLOOR *NH361L* (GRAY) - $18.82
  • TRAY ASSY., CENTER FLOOR *YR308L* (BEIGE) - $18.82
47
  • BOX, CONSOLE *NH167L* (GRAPHITE BLACK) - $21.30
11
  • BRACKET, FR. CONSOLE - $17.62
45
  • BOLT-WASHER (6X20) - $0.73
22
  • HOUSING ASSY., CONSOLE *NH361L* (GRAY) - $113.90
  • HOUSING ASSY., CONSOLE *YR308L* (BEIGE) - $113.90
21
  • SCREW, TAPPING (4.2X12) (METAL) - $1.96
21
  • SCREW, TAPPING (4.2X12) (METAL) - $1.96
24
  • LID ASSY., CONSOLE *NH361L* (GRAY) - $26.63
  • LID ASSY., CONSOLE *YR308L* (BEIGE) - $26.63
31
  • SCREW, TAPPING (3.5X10) (PO) - $2.39
25
  • HOLDER ASSY., COIN - $5.47
31
  • SCREW, TAPPING (3.5X10) (PO) - $2.39
40
  • CLIP, SNAP FITTING (PO)(NATURAL) - $0.36
30
  • LOCK, ARMREST *NH361L* (GRAY) - $17.47
  • LOCK, ARMREST *YR308L* (BEIGE) - $17.47
27
  • HOLDER, PEN *NH167L* (GRAPHITE BLACK) - $3.26
2
  • BULB (12V 3.8W 2CP) - $1.39
36
  • PAD ASSY., ARMREST *NH361L* (GRAY) - $113.32
  • PAD ASSY., ARMREST *YR308L* (BEIGE) - $113.32
8
  • SOCKET ASSY. - $25.34
15
  • OUTLET ASSY. *NH361L* (GRAY) - $38.15
  • OUTLET ASSY. *NH361L* (GRAY) - $38.15
  • OUTLET ASSY. *YR308L* (BEIGE) - $38.15
33
  • BUMPER, CONSOLE LID - $4.18
4
  • LAMP UNIT, CUP HOLDER - $7.19
35
  • BASE ASSY., ARMREST *NH361L* (GRAY) - $92.00
  • BASE ASSY., ARMREST *YR308L* (BEIGE) - $92.00
31
  • SCREW, TAPPING (3.5X10) (PO) - $2.39
39
  • BOLT-WASHER (8X21) - $0.89
43
  • CLIP, HARNESS BAND (145MM) (BLACK) - $2.88
13
  • NUT, PAL (M5) - $2.39
16
  • DUCT ASSY. - $4.14
44
  • GROMMET, SCREW (4MM) - $1.72
12
  • DIVIDER, BOX *NH167L* (GRAPHITE BLACK) - $6.02
19
  • SCREW, TAPPING (4.2X12) (PO) - $1.15
40
  • CLIP, SNAP FITTING (PO)(NATURAL) - $0.36
41
  • CLIP, CONNECTOR (NATURAL) - $1.62
34
  • GUIDE ASSY., CONSOLE LID - $44.29
5
  • WIRE - $4.36
14
  • HOLDER ASSY., CONSOLE CUP *NH361L* (GRAY) - $74.42
  • HOLDER ASSY., CONSOLE CUP *YR308L* (BEIGE) - $74.42
3
  • LENS, RR. CONSOLE - $6.01
51
  • SCREW, TAPPING (4X16) (ACR) - $0.36
42
  • CLIP, HARNESS BAND (96.9MM) (NATURAL) - $2.88
20
  • SCREW, TAPPING (4.2X12) (PO) - $1.96
31
  • SCREW, TAPPING (3.5X10) (PO) - $2.39
32
  • LOCK ASSY. *NH361L* (GRAY) - $25.20
  • LOCK ASSY. *YR308L* (BEIGE) - $25.20
10
  • SEAL B (OPEN) - $0.86
26
  • BRACKET, FLOOR CONSOLE - $6.24
23
  • FRAME, CONSOLE - $110.22
34
  • GUIDE ASSY., CONSOLE LID - $44.29
38
  • MAT, TRAY *NH361L* (GRAY) - $10.07
  • MAT, TRAY *YR308L* (BEIGE) - $10.07
6
  • BULB (T5 14V 1.4W) - $3.31
1
  • SUB-WIRE, CENTER CONSOLE - $5.66
29
  • HOOK, BAG SETTING *NH361L* (GRAY) - $19.90
  • HOOK, BAG SETTING *YR308L* (BEIGE) - $19.90
48
  • MAT, TRAY *NH361L* (GRAY) - $4.12
  • MAT, TRAY *YR308L* (BEIGE) - $4.12
No. Part # Part # / Description Qty Req. List Price Price
1 32118-SJC-A00 32118-SJC-A00 / SUB-WIRE, CENTER CONSOLE

1 $7.87 $5.66
2 33301-S70-003 33301-S70-003 / BULB (12V 3.8W 2CP)

1 $1.93 $1.39
3 34262-SJC-A01 34262-SJC-A01 / LENS, RR. CONSOLE

1 $8.35 $6.01
4 34751-S2H-003 34751-S2H-003 / LAMP UNIT, CUP HOLDER

1 $9.98 $7.19
5 34752-S2H-003 34752-S2H-003 / WIRE

1 $6.05 $4.36
6 35505-S2H-003 35505-S2H-003 / BULB (T5 14V 1.4W)

1 $4.60 $3.31
7 39631-SJC-A01ZC 39631-SJC-A01ZC / CAP ASSY. *YR308L* (BEIGE)

1 $13.62 $9.80
7 39631-SJC-A01ZB 39631-SJC-A01ZB / CAP ASSY. *NH361L* (GRAY)

1 $13.62 $9.80
8 39632-S5A-A01 39632-S5A-A01 / SOCKET ASSY.

1 $35.20 $25.34
9 77637-S9A-003 77637-S9A-003 / SEAL A (CLOSE)

1 $1.20 $0.86
10 77638-S9A-003 77638-S9A-003 / SEAL B (OPEN)

1 $1.20 $0.86
11 83402-SJC-A00 83402-SJC-A00 / BRACKET, FR. CONSOLE

1 $24.47 $17.62
12 83403-SJC-A01ZA 83403-SJC-A01ZA / DIVIDER, BOX *NH167L* (GRAPHITE BLACK)

2 $8.37 $6.02
13 83404-SJC-A01 83404-SJC-A01 / NUT, PAL (M5)

9 $3.32 $2.39
14 83405-SJC-A01ZB 83405-SJC-A01ZB / HOLDER ASSY., CONSOLE CUP *NH361L* (GRAY)

1 $103.37 $74.42
14 83405-SJC-A01ZC 83405-SJC-A01ZC / HOLDER ASSY., CONSOLE CUP *YR308L* (BEIGE)

1 $103.37 $74.42
15 83407-SJC-A02ZB 83407-SJC-A02ZB / OUTLET ASSY. *NH361L* (GRAY)

1 $52.98 $38.15
15 83407-SJC-A02ZB 83407-SJC-A02ZB / OUTLET ASSY. *NH361L* (GRAY)

1 $52.98 $38.15
15 83407-SJC-A02ZC 83407-SJC-A02ZC / OUTLET ASSY. *YR308L* (BEIGE)

1 $52.98 $38.15
16 83408-SJC-A01 83408-SJC-A01 / DUCT ASSY.

1 $5.75 $4.14
18 83411-SJC-A01 83411-SJC-A01 / HINGE, ARMREST

1 $34.87 $25.10
19 83416-SJC-A01 83416-SJC-A01 / SCREW, TAPPING (4.2X12) (PO)

8 $1.60 $1.15
20 83417-SJC-A01 83417-SJC-A01 / SCREW, TAPPING (4.2X12) (PO)

8 $2.72 $1.96
21 83419-SJC-A01 83419-SJC-A01 / SCREW, TAPPING (4.2X12) (METAL)

0 $2.72 $1.96
22 83420-SJC-A01ZB 83420-SJC-A01ZB / HOUSING ASSY., CONSOLE *NH361L* (GRAY)

1 $158.20 $113.90
22 83420-SJC-A01ZC 83420-SJC-A01ZC / HOUSING ASSY., CONSOLE *YR308L* (BEIGE)

1 $158.20 $113.90
23 83421-SJC-A01 83421-SJC-A01 / FRAME, CONSOLE

1 $153.08 $110.22
24 83422-SJC-A01ZB 83422-SJC-A01ZB / LID ASSY., CONSOLE *NH361L* (GRAY)

1 $36.98 $26.63
24 83422-SJC-A01ZC 83422-SJC-A01ZC / LID ASSY., CONSOLE *YR308L* (BEIGE)

1 $36.98 $26.63
25 83423-SJC-A01 83423-SJC-A01 / HOLDER ASSY., COIN

1 $7.60 $5.47
26 83425-SJC-A00 83425-SJC-A00 / BRACKET, FLOOR CONSOLE

1 $8.67 $6.24
27 83425-S9V-A01ZA 83425-S9V-A01ZA / HOLDER, PEN *NH167L* (GRAPHITE BLACK)

1 $4.53 $3.26
28 83427-SJC-A01ZB 83427-SJC-A01ZB / HOUSING ASSY., GARNISH *NH361L* (GRAY)

1 $123.47 $88.90
28 83427-SJC-A01ZC 83427-SJC-A01ZC / HOUSING ASSY., GARNISH *YR308L* (BEIGE)

1 $123.47 $88.90
29 83428-SJC-A01ZB 83428-SJC-A01ZB / HOOK, BAG SETTING *NH361L* (GRAY)

2 $27.63 $19.90
29 83428-SJC-A01ZC 83428-SJC-A01ZC / HOOK, BAG SETTING *YR308L* (BEIGE)

2 $27.63 $19.90
30 83431-SJC-A01ZB 83431-SJC-A01ZB / LOCK, ARMREST *NH361L* (GRAY)

1 $24.27 $17.47
30 83431-SJC-A01ZC 83431-SJC-A01ZC / LOCK, ARMREST *YR308L* (BEIGE)

1 $24.27 $17.47
31 83432-SJC-A01 83432-SJC-A01 / SCREW, TAPPING (3.5X10) (PO)

0 $3.32 $2.39
32 83435-SJC-A01ZB 83435-SJC-A01ZB / LOCK ASSY. *NH361L* (GRAY)

1 $35.00 $25.20
32 83435-SJC-A01ZC 83435-SJC-A01ZC / LOCK ASSY. *YR308L* (BEIGE)

1 $35.00 $25.20
33 83436-SJC-A01 83436-SJC-A01 / BUMPER, CONSOLE LID

2 $5.80 $4.18
34 83437-SJC-A01 83437-SJC-A01 / GUIDE ASSY., CONSOLE LID

2 $61.52 $44.29
35 83438-SJC-A01ZB 83438-SJC-A01ZB / BASE ASSY., ARMREST *NH361L* (GRAY)

1 $127.78 $92.00
35 83438-SJC-A01ZC 83438-SJC-A01ZC / BASE ASSY., ARMREST *YR308L* (BEIGE)

1 $127.78 $92.00
36 83442-SJC-A01ZB 83442-SJC-A01ZB / PAD ASSY., ARMREST *NH361L* (GRAY)

1 $157.38 $113.32
36 83442-SJC-A01ZC 83442-SJC-A01ZC / PAD ASSY., ARMREST *YR308L* (BEIGE)

1 $157.38 $113.32
37 83450-SJC-A01ZB 83450-SJC-A01ZB / TRAY ASSY., CENTER FLOOR *NH361L* (GRAY)

1 $26.13 $18.82
37 83450-SJC-A01ZC 83450-SJC-A01ZC / TRAY ASSY., CENTER FLOOR *YR308L* (BEIGE)

1 $26.13 $18.82
38 83451-SJC-A01ZB 83451-SJC-A01ZB / MAT, TRAY *NH361L* (GRAY)

1 $13.98 $10.07
38 83451-SJC-A01ZC 83451-SJC-A01ZC / MAT, TRAY *YR308L* (BEIGE)

1 $13.98 $10.07
39 90110-SE7-000 90110-SE7-000 / BOLT-WASHER (8X21)

2 $1.23 $0.89
40 90666-SDA-A01 90666-SDA-A01 / CLIP, SNAP FITTING (PO)(NATURAL)

10 $0.50 $0.36
41 91533-S04-003 91533-S04-003 / CLIP, CONNECTOR (NATURAL)

2 $2.25 $1.62
42 91540-S0A-003 91540-S0A-003 / CLIP, HARNESS BAND (96.9MM) (NATURAL)

1 $4.00 $2.88
43 91541-S0A-003 91541-S0A-003 / CLIP, HARNESS BAND (145MM) (BLACK)

1 $4.00 $2.88
44 91641-SM4-003 91641-SM4-003 / GROMMET, SCREW (4MM)

2 $2.38 $1.72
45 93403-06020-08 93403-06020-08 / BOLT-WASHER (6X20)

2 $1.02 $0.73
46 93405-08020-04 93405-08020-04 / BOLT-WASHER (8X20)

4 $1.13 $0.82
47 83412-SJC-A01ZD 83412-SJC-A01ZD / BOX, CONSOLE *NH167L* (GRAPHITE BLACK)

1 $29.58 $21.30
48 83424-SJC-A01ZB 83424-SJC-A01ZB / MAT, TRAY *NH361L* (GRAY)

1 $5.72 $4.12
48 83424-SJC-A01ZC 83424-SJC-A01ZC / MAT, TRAY *YR308L* (BEIGE)

1 $5.72 $4.12
49 83409-SJC-A02 83409-SJC-A02 / RETAINER, CUP

1 $7.03 $5.06
51 90102-S84-A00 90102-S84-A00 / SCREW, TAPPING (4X16) (ACR)

2 $0.50 $0.36
