CANISTER ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE ('06-) for 2006 Honda S2000

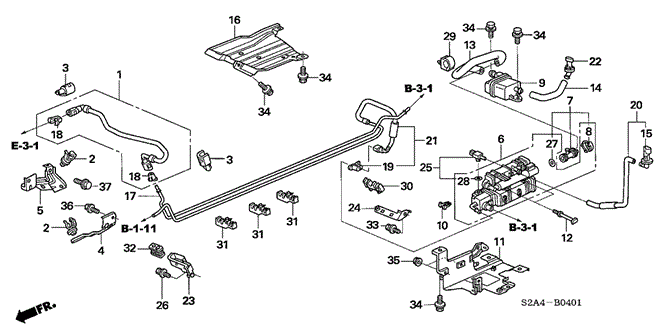

CANISTER ASSY. in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL PIPE ('06-) for 2006 Honda S2000 #1
15
  • JOINT, PRESSURE SENSOR - $3.17
19
  • RETAINER (WHITE) (SANOH) - $1.28
1
  • HOSE, FUEL FEED - $35.08
33
  • BOLT-WASHER (6X16) - $0.73
30
  • CLAMP D, FUEL PIPE - $3.36
2
  • CLAMP, FUEL HOSE (NATURAL) - $1.74
29
  • CLIP, DRAIN TUBE - $1.04
34
  • BOLT-WASHER (6X16) - $0.73
23
  • STAY A, FUEL PIPE - $6.24
12
  • BOLT, CANISTER MOUNTING (8MM) - $2.84
4
  • STAY B, FUEL HOSE - $9.79
25
  • SENSOR, VENT PRESSURE - $49.84
34
  • BOLT-WASHER (6X16) - $0.73
3
  • COVER B, FUEL CONNECTOR (BLACK) - $1.73
3
  • COVER B, FUEL CONNECTOR (BLACK) - $1.73
26
  • BOLT, GROUND (6X16) - $1.70
24
  • STAY B, FUEL PIPE - $5.87
37
  • BOLT, FLANGE (8X12) - $0.71
31
  • CLAMP, FUEL PIPE - $4.80
11
  • BRACKET, CANISTER - $30.98
18
  • RETAINER (BLUE GREEN) (TOKAI) - $1.44
27
  • O-RING - $2.74
17
  • PIPE, FUEL FEED - $19.44
20
  • TUBE ASSY., PRESSURE SENSOR - $9.04
7
  • VALVE ASSY., CANISTER VENT SHUT - $99.44
31
  • CLAMP, FUEL PIPE - $4.80
2
  • CLAMP, FUEL HOSE (NATURAL) - $1.74
10
  • RETAINER - $1.00
21
  • PIPE, FUEL PURGE - $33.10
8
  • CAP - $3.29
18
  • RETAINER (BLUE GREEN) (TOKAI) - $1.44
35
  • NUT, FLANGE (8MM) - $0.59
5
  • STAY, FUEL HOSE - $6.24
16
  • COVER, CANISTER - $32.65
9
  • FILTER, CANISTER - $43.62
28
  • O-RING - $1.42
22
  • JOINT, DRAIN TUBE - $2.71
34
  • BOLT-WASHER (6X16) - $0.73
14
  • TUBE A, DRAIN - $2.74
31
  • CLAMP, FUEL PIPE - $4.80
36
  • BOLT, FLANGE (6X12) - $0.72
34
  • BOLT-WASHER (6X16) - $0.73
6
  • CANISTER ASSY. - $141.82
32
  • RUBBER E, FUEL PIPE INSULATOR - $1.86
34
  • BOLT-WASHER (6X16) - $0.73
13
  • TUBE, CANISTER - $7.93
No. Part # Part # / Description Qty Req. List Price Price
1 16722-PZX-003 16722-PZX-003 / HOSE, FUEL FEED

1 $48.72 $35.08
2 16725-RAC-003 16725-RAC-003 / CLAMP, FUEL HOSE (NATURAL)

2 $2.42 $1.74
3 16726-PWA-004 16726-PWA-004 / COVER B, FUEL CONNECTOR (BLACK)

2 $2.40 $1.73
4 16731-PZX-000 16731-PZX-000 / STAY B, FUEL HOSE

1 $13.60 $9.79
5 16751-PZX-000 16751-PZX-000 / STAY, FUEL HOSE

1 $8.67 $6.24
6 17011-S6M-A01 17011-S6M-A01 / CANISTER ASSY.

1 $196.97 $141.82
7 17311-SDC-L02 17311-SDC-L02 / VALVE ASSY., CANISTER VENT SHUT

1 $138.12 $99.44
8 17312-SDC-L01 17312-SDC-L01 / CAP

1 $4.57 $3.29
9 17315-SHJ-A01 17315-SHJ-A01 / FILTER, CANISTER

1 $60.58 $43.62
10 17321-SDA-A01 17321-SDA-A01 / RETAINER

1 $1.38 $1.00
11 17358-S2A-A50 17358-S2A-A50 / BRACKET, CANISTER

1 $43.03 $30.98
12 17359-SDA-A01 17359-SDA-A01 / BOLT, CANISTER MOUNTING (8MM)

2 $3.95 $2.84
13 17372-S2A-A50 17372-S2A-A50 / TUBE, CANISTER

1 $11.02 $7.93
14 17373-S2A-A50 17373-S2A-A50 / TUBE A, DRAIN

1 $3.80 $2.74
15 17383-S9A-A01 17383-S9A-A01 / JOINT, PRESSURE SENSOR

1 $4.40 $3.17
16 17538-S2A-A50 17538-S2A-A50 / COVER, CANISTER

1 $45.35 $32.65
17 17700-S2A-A51 17700-S2A-A51 / PIPE, FUEL FEED

1 $27.00 $19.44
18 17711-S0X-931 17711-S0X-931 / RETAINER (BLUE GREEN) (TOKAI)

2 $2.00 $1.44
19 17711-S84-004 17711-S84-004 / RETAINER (WHITE) (SANOH)

1 $1.78 $1.28
20 17719-S2A-A50 17719-S2A-A50 / TUBE ASSY., PRESSURE SENSOR

1 $12.55 $9.04
21 17720-S2A-A52 17720-S2A-A52 / PIPE, FUEL PURGE

1 $45.97 $33.10
22 17742-SDA-A02 17742-SDA-A02 / JOINT, DRAIN TUBE

1 $3.77 $2.71
23 17761-S2A-A50 17761-S2A-A50 / STAY A, FUEL PIPE

1 $8.67 $6.24
24 17762-S2A-A50 17762-S2A-A50 / STAY B, FUEL PIPE

1 $8.15 $5.87
25 37940-SDA-A01 37940-SDA-A01 / SENSOR, VENT PRESSURE

1 $69.22 $49.84
26 90150-S04-003 90150-S04-003 / BOLT, GROUND (6X16)

1 $2.37 $1.70
27 91391-SDC-L01 91391-SDC-L01 / O-RING

1 $3.80 $2.74
28 91394-SDA-A01 91394-SDA-A01 / O-RING

1 $1.97 $1.42
29 91595-SCV-A01 91595-SCV-A01 / CLIP, DRAIN TUBE

1 $1.45 $1.04
30 91597-SDB-A01 91597-SDB-A01 / CLAMP D, FUEL PIPE

1 $4.67 $3.36
31 91597-S2A-A51 91597-S2A-A51 / CLAMP, FUEL PIPE

3 $6.67 $4.80
32 91599-SDB-A00 91599-SDB-A00 / RUBBER E, FUEL PIPE INSULATOR

1 $2.58 $1.86
33 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

1 $1.02 $0.73
34 93405-06016-08 93405-06016-08 / BOLT-WASHER (6X16)

8 $1.02 $0.73
35 94050-08040 94050-08040 / NUT, FLANGE (8MM)

2 $0.82 $0.59
36 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.72
37 95701-08012-08 95701-08012-08 / BOLT, FLANGE (8X12)

1 $0.98 $0.71
