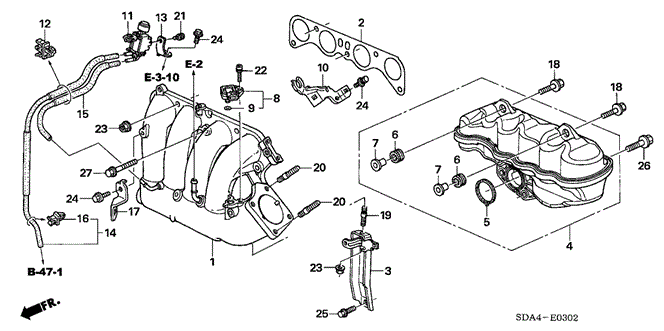

MANIFOLD, IN. in ENGINE/INTAKE MANIFOLD (L4) ('06) for 2006 Honda ACCORD SEDAN

MANIFOLD, IN. in ENGINE/INTAKE MANIFOLD (L4) ('06) for 2006 Honda ACCORD SEDAN #1
24
  • BOLT, FLANGE (6X16) - $0.64
15
  • TUBE B, ELECTRONIC CONTROL MOUNT SOLENOID - $2.26
27
  • BOLT, FLANGE (8X35) - $0.61
17
  • BRACKET, SOLENOID ASSY. - $3.68
18
  • BOLT-WASHER, SPECIAL (6X28) - $2.45
13
  • STAY, ELECTRONIC CONTROL MOUNTSOLENOID VALVE - $3.71
20
  • BOLT, STUD (8X50) - $1.07
2
  • GASKET, IN. MANIFOLD - $20.71
1
  • MANIFOLD, IN. - $148.14
19
  • BOLT, STUD (8X22) - $0.84
4
  • CHAMBER ASSY., IN. MANIFOLD - $55.56
3
  • STAY, IN. MANIFOLD - $15.98
24
  • BOLT, FLANGE (6X16) - $0.64
20
  • BOLT, STUD (8X50) - $1.07
7
  • COLLAR, AIR CLEANER (TOYO ROKI) - $2.59
8
  • SENSOR ASSY., MAP - $59.71
10
  • STAY A, MASTER POWER TUBE - $4.37
23
  • NUT, FLANGE (8MM) - $0.18
5
  • GASKET, IN. MANIFOLD CHAMBER - $4.06
24
  • BOLT, FLANGE (6X16) - $0.64
12
  • CLAMP, ELECTRONIC CONTROL MOUNTING SOLENOID - $3.17
25
  • BOLT, FLANGE (8X20) - $0.64
26
  • BOLT, FLANGE (8X30) - $0.61
11
  • VALVE ASSY., ELECTRONIC CONTROL MOUNTING SOLENOID - $10.88
6
  • RUBBER A, AIR CLEANER HOUSING MOUNTING - $2.78
16
  • CLIP, ACCUMULATOR TUBE - $2.34
9
  • O-RING - $4.57
22
  • SCREW-WASHER (5X20) - $0.48
21
  • SCREW-WASHER (5X10) - $0.49
14
  • TUBE A, ELECTRONIC CONTROL MOUNT SOLENOID - $5.52
7
  • COLLAR, AIR CLEANER (TOYO ROKI) - $2.59
6
  • RUBBER A, AIR CLEANER HOUSING MOUNTING - $2.78
18
  • BOLT-WASHER, SPECIAL (6X28) - $2.45
23
  • NUT, FLANGE (8MM) - $0.18
No. Part # Part # / Description Qty Req. List Price Price
1 17110-RAA-A10 17110-RAA-A10 / MANIFOLD, IN.

1 $205.75 $148.14
2 17115-RAA-A01 17115-RAA-A01 / GASKET, IN. MANIFOLD

1 $28.77 $20.71
3 17132-RAA-A00 17132-RAA-A00 / STAY, IN. MANIFOLD

1 $22.20 $15.98
4 17160-RTA-000 17160-RTA-000 / CHAMBER ASSY., IN. MANIFOLD

1 $77.17 $55.56
5 17161-RTA-007 17161-RTA-007 / GASKET, IN. MANIFOLD CHAMBER

1 $5.63 $4.06
6 17212-PE2-000 17212-PE2-000 / RUBBER A, AIR CLEANER HOUSING MOUNTING

2 $3.87 $2.78
7 17216-PE2-003 17216-PE2-003 / COLLAR, AIR CLEANER (TOYO ROKI)

2 $3.60 $2.59
8 37830-PNC-003 37830-PNC-003 / SENSOR ASSY., MAP

1 $82.93 $59.71
9 37835-PGK-A01 37835-PGK-A01 / O-RING

1 $6.35 $4.57
10 46406-SEA-A50 46406-SEA-A50 / STAY A, MASTER POWER TUBE

1 $6.07 $4.37
11 50931-SDA-A01 50931-SDA-A01 / VALVE ASSY., ELECTRONIC CONTROL MOUNTING SOLENOID

1 $15.12 $10.88
12 50931-SDA-A02 50931-SDA-A02 / CLAMP, ELECTRONIC CONTROL MOUNTING SOLENOID

1 $4.40 $3.17
13 50932-SDA-A01 50932-SDA-A01 / STAY, ELECTRONIC CONTROL MOUNTSOLENOID VALVE

1 $5.15 $3.71
14 50933-SDA-A22 50933-SDA-A22 / TUBE A, ELECTRONIC CONTROL MOUNT SOLENOID

1 $7.67 $5.52
15 50934-SDA-A22 50934-SDA-A22 / TUBE B, ELECTRONIC CONTROL MOUNT SOLENOID

1 $3.13 $2.26
16 50934-SW5-A80 50934-SW5-A80 / CLIP, ACCUMULATOR TUBE

1 $3.25 $2.34
17 50935-SDA-A21 50935-SDA-A21 / BRACKET, SOLENOID ASSY.

1 $5.12 $3.68
18 90005-P28-A00 90005-P28-A00 / BOLT-WASHER, SPECIAL (6X28)

2 $3.40 $2.45
19 92900-08022-0B 92900-08022-0B / BOLT, STUD (8X22)

1 $1.17 $0.84
20 92900-08050-1B 92900-08050-1B / BOLT, STUD (8X50)

2 $1.48 $1.07
21 93892-05010-07 93892-05010-07 / SCREW-WASHER (5X10)

1 $0.68 $0.49
22 93892-05020-08 93892-05020-08 / SCREW-WASHER (5X20)

1 $0.67 $0.48
23 94050-08080 94050-08080 / NUT, FLANGE (8MM)

3 $0.25 $0.18
24 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

3 $0.88 $0.64
25 95701-08020-08 95701-08020-08 / BOLT, FLANGE (8X20)

1 $0.88 $0.64
26 95701-08030-08 95701-08030-08 / BOLT, FLANGE (8X30)

3 $0.85 $0.61
27 95701-08035-08 95701-08035-08 / BOLT, FLANGE (8X35)

3 $0.85 $0.61
