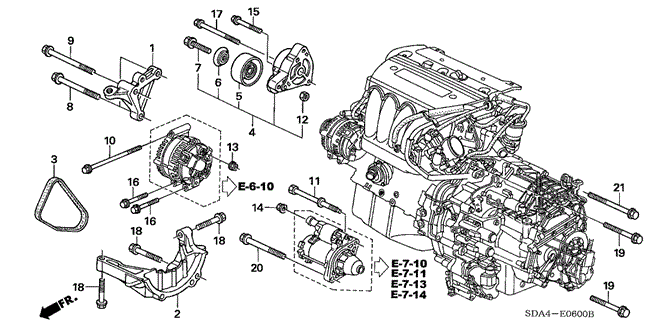

TENSIONER ASSY., AUTO in ENGINE/ENGINE MOUNTING BRACKET (L4) for 2006 Honda ACCORD SEDAN

TENSIONER ASSY., AUTO in ENGINE/ENGINE MOUNTING BRACKET (L4) for 2006 Honda ACCORD SEDAN #1
19
  • BOLT, FLANGE (12X60) - $1.30
4
  • TENSIONER ASSY., AUTO - $64.55
  • TENSIONER ASSY., AUTO - $96.94
18
  • BOLT, FLANGE (10X50) - $1.08
  • BOLT, FLANGE (10X50) - $1.08
12
  • NUT - $0.59
  • NUT (10MM) - $1.63
2
  • STIFFENER, ENGINE - $29.93
18
  • BOLT, FLANGE (10X50) - $1.08
  • BOLT, FLANGE (10X50) - $1.08
18
  • BOLT, FLANGE (10X50) - $1.08
  • BOLT, FLANGE (10X50) - $1.08
10
  • BOLT, SPECIAL (8X105) - $3.38
8
  • BOLT (10X75) - $2.76
6
  • COVER, BEARING - $1.39
  • COVER, BEARING - $4.62
21
  • BOLT, FLANGE (12X95) - $1.79
7
  • BOLT, SPECIAL (10X28) - $1.55
  • BOLT, SPECIAL (10X28) - $1.88
16
  • BOLT, FLANGE (8X55) - $0.98
1
  • BRACKET, ENGINE SIDE MOUNTING - $30.92
15
  • BOLT, FLANGE (8X45) - $0.92
9
  • BOLT, MOUNTING BRACKET (10X95) - $1.27
11
  • BOLT, SPECIAL (10X50) - $2.77
20
  • BOLT, FLANGE (12X85) - $1.79
16
  • BOLT, FLANGE (8X55) - $0.98
19
  • BOLT, FLANGE (12X60) - $1.30
14
  • NUT-WASHER (8MM) - $0.31
13
  • NUT, FLANGE (6MM) - $0.17
5
  • PULLEY, IDLER - $16.54
  • PULLEY, IDLER - $29.06
17
  • BOLT, FLANGE (8X70) - $1.12
No. Part # Part # / Description Qty Req. List Price Price
1 11910-RAA-A00 11910-RAA-A00 / BRACKET, ENGINE SIDE MOUNTING

1 $42.95 $30.92
2 11950-RAA-A00 11950-RAA-A00 / STIFFENER, ENGINE

1 $41.57 $29.93
4 31170-RAA-A02 31170-RAA-A02 / TENSIONER ASSY., AUTO

1 $89.65 $64.55
4 31170-PNA-023 31170-PNA-023 / TENSIONER ASSY., AUTO

1 $134.63 $96.94
5 31180-RAA-A01 31180-RAA-A01 / PULLEY, IDLER

1 $22.97 $16.54
5 31180-PNA-J01 31180-PNA-J01 / PULLEY, IDLER

1 $40.37 $29.06
6 31185-RAA-A01 31185-RAA-A01 / COVER, BEARING

1 $1.93 $1.39
6 31185-PNA-003 31185-PNA-003 / COVER, BEARING

1 $6.42 $4.62
7 90002-RAA-A00 90002-RAA-A00 / BOLT, SPECIAL (10X28)

1 $2.15 $1.55
7 90002-PNA-000 90002-PNA-000 / BOLT, SPECIAL (10X28)

1 $2.62 $1.88
8 90008-PNA-000 90008-PNA-000 / BOLT (10X75)

2 $3.83 $2.76
9 90008-RAA-A00 90008-RAA-A00 / BOLT, MOUNTING BRACKET (10X95)

1 $1.77 $1.27
10 90025-PNA-000 90025-PNA-000 / BOLT, SPECIAL (8X105)

1 $4.70 $3.38
11 90027-PND-A00 90027-PND-A00 / BOLT, SPECIAL (10X50)

1 $3.85 $2.77
12 90202-RAA-A01 90202-RAA-A01 / NUT

1 $0.82 $0.59
12 90202-PNA-003 90202-PNA-003 / NUT (10MM)

1 $2.27 $1.63
13 94050-06080 94050-06080 / NUT, FLANGE (6MM)

1 $0.23 $0.17
14 94070-08080 94070-08080 / NUT-WASHER (8MM)

1 $0.43 $0.31
15 95701-08045-08 95701-08045-08 / BOLT, FLANGE (8X45)

2 $1.28 $0.92
16 95701-08055-08 95701-08055-08 / BOLT, FLANGE (8X55)

2 $1.37 $0.98
17 95701-08070-08 95701-08070-08 / BOLT, FLANGE (8X70)

1 $1.55 $1.12
18 95701-10050-00 95701-10050-00 / BOLT, FLANGE (10X50)

4 $1.50 $1.08
18 95701-10050-08 95701-10050-08 / BOLT, FLANGE (10X50)

4 $1.50 $1.08
19 95701-12060-08 95701-12060-08 / BOLT, FLANGE (12X60)

3 $1.80 $1.30
20 95701-12085-08 95701-12085-08 / BOLT, FLANGE (12X85)

2 $2.48 $1.79
21 95701-12095-08 95701-12095-08 / BOLT, FLANGE (12X95)

1 $2.48 $1.79
