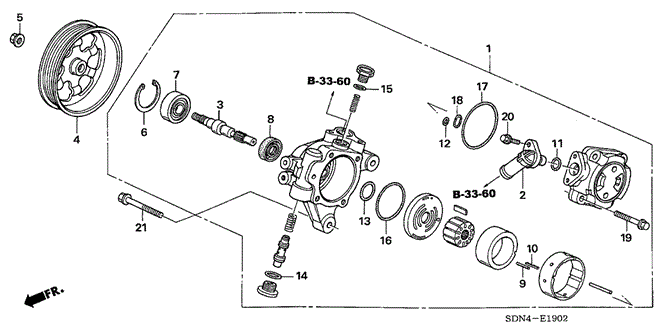

PUMP SUB-ASSY., POWER STEERING in ENGINE/P.S. PUMP (L4) ('06) for 2006 Honda ACCORD COUPE

PUMP SUB-ASSY., POWER STEERING in ENGINE/P.S. PUMP (L4) ('06) for 2006 Honda ACCORD COUPE #1
8
  • SEAL, POWER STEERING PUMP - $3.36
17
  • SEAL, PUMP COVER - $3.05
7
  • BEARING, RADIAL BALL (17X40X12) - $9.98
3
  • SHAFT, POWER STEERING PUMP DRIVE - $33.80
21
  • BOLT, FLANGE (8X45) - $0.92
10
  • SEAL, SLIPPER - $1.68
2
  • JOINT, INLET - $4.07
  • JOINT, INLET - $4.07
15
  • O-RING (12.7X1.8) - $1.02
14
  • O-RING (16.7X1.8) - $0.58
20
  • BOLT, FLANGE (6X20) - $0.89
5
  • NUT, POWER STEERING PULLEY - $1.38
18
  • SEAL B, PUMP COVER - $3.05
4
  • PULLEY, POWER STEERING PUMP - $28.28
6
  • CIRCLIP, INNER (40MM) - $1.07
  • CIRCLIP, INNER (40MM) - $3.22
19
  • BOLT, FLANGE (8X35) - $1.57
9
  • SEAL, RUBBER - $1.68
13
  • O-RING (23.8X2.4) - $1.51
12
  • O-RING (13.0X1.9) - $0.62
16
  • O-RING (51.0X2.4) - $0.80
1
  • PUMP SUB-ASSY., POWER STEERING - $301.51
  • P/S PUMP, CORE ID (RAA-A0) (RMD)(AMERICAN SHOWA) - $219.76
11
  • O-RING (13.0X1.9) - $0.52
No. Part # Part # / Description Qty Req. List Price Price
1 56110-RAA-A03 56110-RAA-A03 / PUMP SUB-ASSY., POWER STEERING

1 $418.77 $301.51
1 06561-RAA-505RM 06561-RAA-505RM / P/S PUMP, CORE ID (RAA-A0) (RMD)(AMERICAN SHOWA)1

1 $305.22 $219.76
2 56123-RNA-A02 56123-RNA-A02 / JOINT, INLET

1 $5.65 $4.07
2 56123-RNA-A02 56123-RNA-A02 / JOINT, INLET

1 $5.65 $4.07
3 56141-PNC-003 56141-PNC-003 / SHAFT, POWER STEERING PUMP DRIVE

1 $46.95 $33.80
4 56483-PNC-004 56483-PNC-004 / PULLEY, POWER STEERING PUMP

1 $39.28 $28.28
5 90305-PAA-A01 90305-PAA-A01 / NUT, POWER STEERING PULLEY

1 $1.92 $1.38
6 90693-PAA-A01 90693-PAA-A01 / CIRCLIP, INNER (40MM)

1 $1.48 $1.07
6 90693-P2A-003 90693-P2A-003 / CIRCLIP, INNER (40MM)

1 $4.47 $3.22
7 91048-P2A-003 91048-P2A-003 / BEARING, RADIAL BALL (17X40X12)

1 $13.87 $9.98
8 91249-PNC-003 91249-PNC-003 / SEAL, POWER STEERING PUMP

1 $4.67 $3.36
9 91343-PNC-003 91343-PNC-003 / SEAL, RUBBER

1 $2.33 $1.68
10 91344-PNC-003 91344-PNC-003 / SEAL, SLIPPER

1 $2.33 $1.68
11 91345-RDA-A01 91345-RDA-A01 / O-RING (13.0X1.9)

1 $0.72 $0.52
12 91345-RJL-003 91345-RJL-003 / O-RING (13.0X1.9)

1 $0.87 $0.62
13 91346-PLA-003 91346-PLA-003 / O-RING (23.8X2.4)

1 $2.10 $1.51
14 91347-PAA-A01 91347-PAA-A01 / O-RING (16.7X1.8)

1 $0.80 $0.58
15 91347-PLA-003 91347-PLA-003 / O-RING (12.7X1.8)

1 $1.42 $1.02
16 91348-P2A-003 91348-P2A-003 / O-RING (51.0X2.4)

1 $1.12 $0.80
17 91349-PNC-J01 91349-PNC-J01 / SEAL, PUMP COVER

1 $4.23 $3.05
18 91349-PNC-003 91349-PNC-003 / SEAL B, PUMP COVER

1 $4.23 $3.05
19 91350-PLA-003 91350-PLA-003 / BOLT, FLANGE (8X35)

4 $2.18 $1.57
20 91350-P8C-A01 91350-P8C-A01 / BOLT, FLANGE (6X20)

1 $1.23 $0.89
21 95701-08045-08 95701-08045-08 / BOLT, FLANGE (8X45)

2 $1.28 $0.92
1This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
