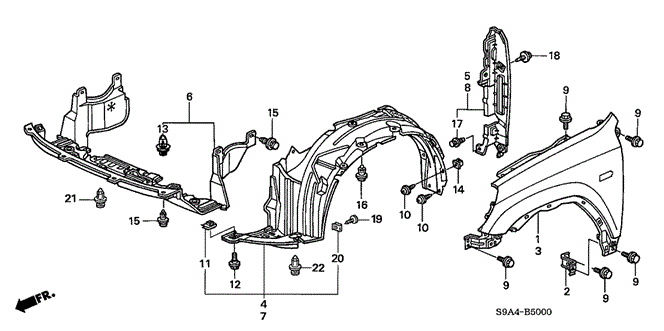

PANEL, L. FR. FENDER (DOT) in BODY / AIR CONDITIONING/FRONT FENDER for 2005 Honda CR-V

PANEL, L. FR. FENDER (DOT) in BODY / AIR CONDITIONING/FRONT FENDER for 2005 Honda CR-V #1
7
  • FENDER ASSY., L. FR. (INNER) - $57.18
9
  • BOLT, FLANGE (6X15) - $0.22
6
  • SHIELD, FR. SPLASH - $58.06
10
  • SCREW-WASHER (5X20) - $2.82
  • SCREW-WASHER (5X25) - $2.20
10
  • SCREW-WASHER (5X20) - $2.82
  • SCREW-WASHER (5X25) - $2.20
14
  • GROMMET, SCREW (5MM) - $0.16
22
  • CLIP B, BUMPER - $1.80
20
  • NUT, SPRING (5MM) - $1.32
2
  • STAY, RR. FENDER - $5.54
9
  • BOLT, FLANGE (6X15) - $0.22
5
  • FAIRING, R. FR. FENDER - $9.60
9
  • BOLT, FLANGE (6X15) - $0.22
9
  • BOLT, FLANGE (6X15) - $0.22
21
  • CLIP A, BUMPER - $1.80
15
  • CLIP A, BUMPER - $2.58
15
  • CLIP A, BUMPER - $2.58
18
  • CLIP ASSY. (8MM) - $3.18
8
  • FAIRING, L. FR. FENDER - $34.14
  • FAIRING, L. FR. FENDER - $34.14
9
  • BOLT, FLANGE (6X15) - $0.22
1
  • PANEL, R. FR. FENDER (DOT) - $223.21
16
  • CLIP, FENDER (INNER) - $1.12
4
  • FENDER ASSY., R. FR. (INNER) - $57.18
17
  • CLIP B, FAIRING - $3.10
19
  • SCREW, TAPPING (5X20) - $0.44
3
  • PANEL, L. FR. FENDER (DOT) - $229.02
13
  • CLIP, SPLASH SHIELD - $1.76
No. Part # Part # / Description Qty Req. List Price Price
1 60211-SCA-A90ZZ 60211-SCA-A90ZZ / PANEL, R. FR. FENDER (DOT)

1 $310.02 $223.21
2 60212-S9A-000ZZ 60212-S9A-000ZZ / STAY, RR. FENDER

2 $7.70 $5.54
3 60261-SCA-A90ZZ 60261-SCA-A90ZZ / PANEL, L. FR. FENDER (DOT)

1 $318.08 $229.02
4 74100-S9A-010 74100-S9A-010 / FENDER ASSY., R. FR. (INNER)

1 $79.42 $57.18
5 74105-S9A-000 74105-S9A-000 / FAIRING, R. FR. FENDER

1 $13.33 $9.60
6 74111-S9A-010 74111-S9A-010 / SHIELD, FR. SPLASH

1 $80.63 $58.06
7 74150-S9A-010 74150-S9A-010 / FENDER ASSY., L. FR. (INNER)

1 $79.42 $57.18
8 74155-S9A-000 74155-S9A-000 / FAIRING, L. FR. FENDER

1 $47.42 $34.14
8 74155-S9A-000 74155-S9A-000 / FAIRING, L. FR. FENDER

1 $47.42 $34.14
9 90108-S0A-003 90108-S0A-003 / BOLT, FLANGE (6X15)

14 $0.30 $0.22
10 90114-SZ3-000 90114-SZ3-000 / SCREW-WASHER (5X20)

6 $3.92 $2.82
10 90139-SE0-003 90139-SE0-003 / SCREW-WASHER (5X25)

6 $3.05 $2.20
13 91504-S9A-003 91504-S9A-003 / CLIP, SPLASH SHIELD

1 $2.45 $1.76
14 90682-SB0-003 90682-SB0-003 / GROMMET, SCREW (5MM)

2 $0.22 $0.16
15 91503-SZ3-003 91503-SZ3-003 / CLIP A, BUMPER

4 $3.58 $2.58
16 91512-SX0-003 91512-SX0-003 / CLIP, FENDER (INNER)

12 $1.55 $1.12
17 91533-SG0-000 91533-SG0-000 / CLIP B, FAIRING

2 $4.30 $3.10
18 91545-SE0-003 91545-SE0-003 / CLIP ASSY. (8MM)

6 $4.42 $3.18
19 90103-SDA-A00 90103-SDA-A00 / SCREW, TAPPING (5X20)

2 $0.62 $0.44
20 90331-S3Y-003 90331-S3Y-003 / NUT, SPRING (5MM)

2 $1.83 $1.32
21 91505-S9A-003 91505-S9A-003 / CLIP A, BUMPER

6 $2.50 $1.80
22 91506-S9A-003 91506-S9A-003 / CLIP B, BUMPER

4 $2.50 $1.80
