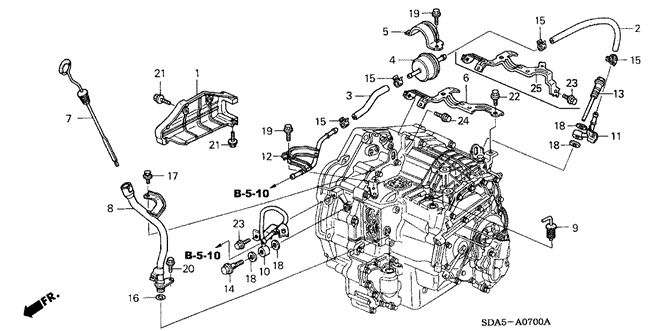

HOLDER, CONTROL WIRE in TRANSMISSION - AUTOMATIC/AT OIL LEVEL GAUGE - ATF PIPE (L4) for 2005 Honda ACCORD SEDAN

HOLDER, CONTROL WIRE in TRANSMISSION - AUTOMATIC/AT OIL LEVEL GAUGE - ATF PIPE (L4) for 2005 Honda ACCORD SEDAN #1
15
  • CLIP, OIL PIPE - $0.97
23
  • BOLT, FLANGE (8X16) - $0.71
7
  • DIPSTICK (ATF) - $8.15
13
  • BOLT, JOINT - $10.91
17
  • BOLT-WASHER (6X12) - $0.64
21
  • BOLT, FLANGE (6X20) - $0.16
24
  • BOLT, FLANGE (8X25) - $0.31
20
  • BOLT, FLANGE (6X16) - $0.64
18
  • WASHER, DRAIN PLUG (12MM) - $0.43
19
  • BOLT, FLANGE (6X12) - $0.72
8
  • PIPE, DIPSTICK (ATF) - $14.86
12
  • PIPE C (ATF) - $17.15
11
  • PIPE B (ATF) - $14.03
15
  • CLIP, OIL PIPE - $0.97
18
  • WASHER, DRAIN PLUG (12MM) - $0.43
14
  • BOLT, JOINT - $8.32
16
  • O-RING (17.8X1.9) (NOK) - $1.50
4
  • FILTER (ATF) - $18.97
19
  • BOLT, FLANGE (6X12) - $0.72
9
  • CAP, FILLER (ATF) - $5.12
5
  • STAY A, FILTER (ATF) - $3.66
2
  • HOSE (210MM) (ATF) (BS) - $10.32
  • HOSE (210MM) (ATF) (NICHIRIN) - $7.12
3
  • HOSE (ATF) - $6.71
  • HOSE (155MM) (ATF) (NICHIRIN) - $2.93
18
  • WASHER, DRAIN PLUG (12MM) - $0.43
15
  • CLIP, OIL PIPE - $0.97
15
  • CLIP, OIL PIPE - $0.97
10
  • PIPE A (ATF) - $17.15
18
  • WASHER, DRAIN PLUG (12MM) - $0.43
25
  • STAY B, FILTER (ATF) - $8.08
1
  • HOLDER, CONTROL WIRE - $21.62
23
  • BOLT, FLANGE (8X16) - $0.71
21
  • BOLT, FLANGE (6X20) - $0.16
No. Part # Part # / Description Qty Req. List Price Price
1 24901-RAA-020 24901-RAA-020 / HOLDER, CONTROL WIRE

1 $30.03 $21.62
2 25212-RAA-003 25212-RAA-003 / HOSE (210MM) (ATF) (BS)

1 $14.33 $10.32
2 25212-RAA-006 25212-RAA-006 / HOSE (210MM) (ATF) (NICHIRIN)

1 $9.88 $7.12
3 25215-RAA-004 25215-RAA-004 / HOSE (ATF)

1 $9.32 $6.71
3 25215-RAA-006 25215-RAA-006 / HOSE (155MM) (ATF) (NICHIRIN)

1 $4.07 $2.93
4 25430-PLR-003 25430-PLR-003 / FILTER (ATF)

1 $26.35 $18.97
5 25431-RAA-000 25431-RAA-000 / STAY A, FILTER (ATF)

1 $5.08 $3.66
7 25610-RCL-023 25610-RCL-023 / DIPSTICK (ATF)

1 $11.32 $8.15
8 25613-RCL-000 25613-RCL-000 / PIPE, DIPSTICK (ATF)

1 $20.63 $14.86
9 25615-RCL-003 25615-RCL-003 / CAP, FILLER (ATF)

1 $7.12 $5.12
10 25910-RCL-000 25910-RCL-000 / PIPE A (ATF)

1 $23.82 $17.15
11 25920-RCL-000 25920-RCL-000 / PIPE B (ATF)

1 $19.48 $14.03
12 25930-RCL-000 25930-RCL-000 / PIPE C (ATF)

1 $23.82 $17.15
13 25950-689-903 25950-689-903 / BOLT, JOINT

1 $15.15 $10.91
14 25951-639-000 25951-639-000 / BOLT, JOINT

1 $11.55 $8.32
15 90635-PT0-802 90635-PT0-802 / CLIP, OIL PIPE

4 $1.35 $0.97
16 91308-PH0-013 91308-PH0-013 / O-RING (17.8X1.9) (NOK)

1 $2.08 $1.50
17 93404-06012-07 93404-06012-07 / BOLT-WASHER (6X12)

1 $0.88 $0.64
18 94109-12000 94109-12000 / WASHER, DRAIN PLUG (12MM)

4 $0.60 $0.43
19 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

3 $1.00 $0.72
20 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.64
21 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

4 $0.22 $0.16
23 95701-08016-08 95701-08016-08 / BOLT, FLANGE (8X16)

2 $0.98 $0.71
24 95701-08025-08 95701-08025-08 / BOLT, FLANGE (8X25)

1 $0.43 $0.31
25 25432-RCT-A00 25432-RCT-A00 / STAY B, FILTER (ATF)

1 $11.22 $8.08
