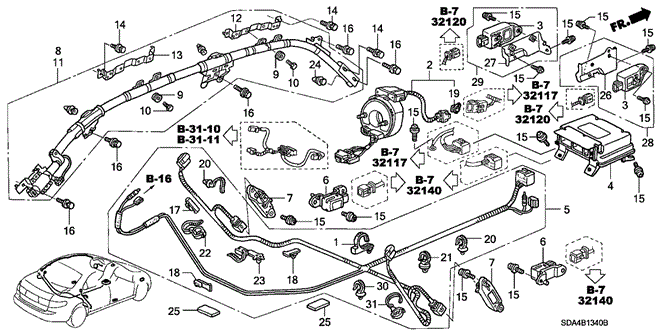

MODULE ASSY., R. SIDE CURTAIN AIRBAG in ELECTRICAL / EXHAUST / HEATER / FUEL/SRS UNIT for 2005 Honda ACCORD SEDAN

MODULE ASSY., R. SIDE CURTAIN AIRBAG in ELECTRICAL / EXHAUST / HEATER / FUEL/SRS UNIT for 2005 Honda ACCORD SEDAN #1
21
  • CLIP, HARNESS BAND (145.2MM) (NATURAL)(W/SEAL) - $4.19
6
  • SENSOR ASSY., SIDE IMPACT (TRW) - $44.24
25
  • PLASTER, WIRE HARNESS (50X100) - $1.61
13
  • BRACKET, RR. GRAB RAIL - $10.21
7
  • SENSOR ASSY., SIDE IMPACT (TRW) - $38.69
24
  • CLIP, DOOR LINING (NATURAL) - $1.38
10
  • BOLT (5X12) - $7.16
20
  • CLIP, HARNESS BAND (96.9MM) (NATURAL) - $2.88
15
  • BOLT, TORX GROUND (6X20) - $2.60
19
  • CLIP, CONNECTOR (NATURAL) - $1.62
15
  • BOLT, TORX GROUND (6X20) - $2.60
4
  • SRS UNIT (TRW) - $262.07
18
  • CLIP, WIRE HARNESS (44MM) (NATURAL) - $2.20
6
  • SENSOR ASSY., SIDE IMPACT (TRW) - $44.24
1
  • BAND, WIRE HARNESS OFFSET (20)(122.5MM) (BLACK) - $2.68
15
  • BOLT, TORX GROUND (6X20) - $2.60
14
  • BOLT-WASHER (5X16) - $2.02
  • BOLT-WASHER (5X16) - $2.66
16
  • BOLT-WASHER (6X19) - $1.54
15
  • BOLT, TORX GROUND (6X20) - $2.60
15
  • BOLT, TORX GROUND (6X20) - $2.60
9
  • PLATE A, GRAB RAIL - $17.83
29
  • SENSOR ASSY., L. BRACKET (TRW) - $36.37
25
  • PLASTER, WIRE HARNESS (50X100) - $1.61
27
  • BRACKET, L. SRS SENSOR - $56.65
15
  • BOLT, TORX GROUND (6X20) - $2.60
3
  • SENSOR ASSY., FR. CRASH (TRW) - $39.48
16
  • BOLT-WASHER (6X19) - $1.54
16
  • BOLT-WASHER (6X19) - $1.54
8
  • MODULE ASSY., R. SIDE CURTAIN AIRBAG - $487.20
  • MODULE ASSY., R. SIDE CURTAIN AIRBAG - $487.20
10
  • BOLT (5X12) - $7.16
15
  • BOLT, TORX GROUND (6X20) - $2.60
15
  • BOLT, TORX GROUND (6X20) - $2.60
15
  • BOLT, TORX GROUND (6X20) - $2.60
18
  • CLIP, WIRE HARNESS (44MM) (NATURAL) - $2.20
5
  • SUB-WIRE HARNESS, SIDE CURTAINAIRBAG (INCLUDE FEEDER) - $88.56
3
  • SENSOR ASSY., FR. CRASH (TRW) - $39.48
15
  • BOLT, TORX GROUND (6X20) - $2.60
14
  • BOLT-WASHER (5X16) - $2.02
  • BOLT-WASHER (5X16) - $2.66
23
  • CLIP, HARNESS BAND OFFSET (30)(NATURAL) - $3.52
14
  • BOLT-WASHER (5X16) - $2.02
  • BOLT-WASHER (5X16) - $2.66
26
  • BRACKET, R. SRS SENSOR - $56.65
16
  • BOLT-WASHER (6X19) - $1.54
15
  • BOLT, TORX GROUND (6X20) - $2.60
2
  • REEL ASSY., CABLE (FURUKAWA) - $91.87
17
  • CLIP, WIRE HARNESS (50MM) (BLACK)(HARNESS TAPING) - $3.28
9
  • PLATE A, GRAB RAIL - $17.83
20
  • CLIP, HARNESS BAND (96.9MM) (NATURAL) - $2.88
30
  • CLIP, HARNESS BAND (145MM) (BLACK) - $2.88
11
  • MODULE ASSY., L. SIDE CURTAIN AIRBAG - $487.20
  • MODULE ASSY., L. SIDE CURTAIN AIRBAG - $487.20
28
  • SENSOR ASSY., R. BRACKET (TRW) - $36.37
15
  • BOLT, TORX GROUND (6X20) - $2.60
15
  • BOLT, TORX GROUND (6X20) - $2.60
7
  • SENSOR ASSY., SIDE IMPACT (TRW) - $38.69
12
  • BRACKET, FR. GRAB RAIL - $9.60
  • BRACKET, FR. GRAB RAIL - $10.98
16
  • BOLT-WASHER (6X19) - $1.54
No. Part # Part # / Description Qty Req. List Price Price
1 32132-SM4-003 32132-SM4-003 / BAND, WIRE HARNESS OFFSET (20)(122.5MM) (BLACK)

2 $3.72 $2.68
2 77900-SDA-A21 77900-SDA-A21 / REEL ASSY., CABLE (FURUKAWA)

1 $127.60 $91.87
3 77930-SDA-A91 77930-SDA-A91 / SENSOR ASSY., FR. CRASH (TRW)

2 $54.83 $39.48
4 77960-SDA-C13 77960-SDA-C13 / SRS UNIT (TRW)

1 $335.98 $262.07
5 77962-SDA-A81 77962-SDA-A81 / SUB-WIRE HARNESS, SIDE CURTAINAIRBAG (INCLUDE FEEDER)

1 $123.00 $88.56
6 77970-SDA-A93 77970-SDA-A93 / SENSOR ASSY., SIDE IMPACT (TRW)

2 $61.45 $44.24
7 77970-SDA-C93 77970-SDA-C93 / SENSOR ASSY., SIDE IMPACT (TRW)

2 $53.73 $38.69
8 78800-SDC-A81 78800-SDC-A81 / MODULE ASSY., R. SIDE CURTAIN AIRBAG2

1 $624.62 $487.20
8 78800-SDA-A81 78800-SDA-A81 / MODULE ASSY., R. SIDE CURTAIN AIRBAG2

1 $624.62 $487.20
9 78818-SDB-A81 78818-SDB-A81 / PLATE A, GRAB RAIL

8 $24.77 $17.83
10 78827-SDB-A81 78827-SDB-A81 / BOLT (5X12)

16 $9.95 $7.16
11 78850-SDC-A81 78850-SDC-A81 / MODULE ASSY., L. SIDE CURTAIN AIRBAG2

1 $624.62 $487.20
11 78850-SDA-A81 78850-SDA-A81 / MODULE ASSY., L. SIDE CURTAIN AIRBAG2

1 $624.62 $487.20
12 83241-SDB-A71 83241-SDB-A71 / BRACKET, FR. GRAB RAIL

2 $13.33 $9.60
12 83241-SDA-A81 83241-SDA-A81 / BRACKET, FR. GRAB RAIL

2 $15.25 $10.98
13 83242-SDB-A71 83242-SDB-A71 / BRACKET, RR. GRAB RAIL

2 $14.18 $10.21
14 90133-SDC-003 90133-SDC-003 / BOLT-WASHER (5X16)

10 $2.80 $2.02
14 90133-SM4-003 90133-SM4-003 / BOLT-WASHER (5X16)

10 $3.70 $2.66
15 90137-S84-A01 90137-S84-A01 / BOLT, TORX GROUND (6X20)

0 $3.62 $2.60
16 90178-SDA-003 90178-SDA-003 / BOLT-WASHER (6X19)

12 $2.13 $1.54
17 91507-693-003 91507-693-003 / CLIP, WIRE HARNESS (50MM) (BLACK)(HARNESS TAPING)

2 $4.55 $3.28
18 91531-S04-003 91531-S04-003 / CLIP, WIRE HARNESS (44MM) (NATURAL)

9 $3.05 $2.20
19 91533-S04-003 91533-S04-003 / CLIP, CONNECTOR (NATURAL)

1 $2.25 $1.62
20 91540-S0A-003 91540-S0A-003 / CLIP, HARNESS BAND (96.9MM) (NATURAL)

14 $4.00 $2.88
21 91545-SV4-003 91545-SV4-003 / CLIP, HARNESS BAND (145.2MM) (NATURAL)(W/SEAL)

1 $5.82 $4.19
23 91559-ST5-003 91559-ST5-003 / CLIP, HARNESS BAND OFFSET (30)(NATURAL)

2 $4.88 $3.52
24 91560-S84-A01 91560-S84-A01 / CLIP, DOOR LINING (NATURAL)

4 $1.92 $1.38
25 91902-S2X-003 91902-S2X-003 / PLASTER, WIRE HARNESS (50X100)

2 $2.23 $1.61
26 74177-SDA-A00 74177-SDA-A00 / BRACKET, R. SRS SENSOR

1 $78.68 $56.65
27 74197-SDA-A00 74197-SDA-A00 / BRACKET, L. SRS SENSOR

1 $78.68 $56.65
28 77930-SDA-A00 77930-SDA-A00 / SENSOR ASSY., R. BRACKET (TRW)

1 $50.52 $36.37
29 77930-SDA-A10 77930-SDA-A10 / SENSOR ASSY., L. BRACKET (TRW)

1 $50.52 $36.37
30 91541-S0A-003 91541-S0A-003 / CLIP, HARNESS BAND (145MM) (BLACK)

1 $4.00 $2.88
2This part contains hazardous materials. Extra shipping costs apply.
