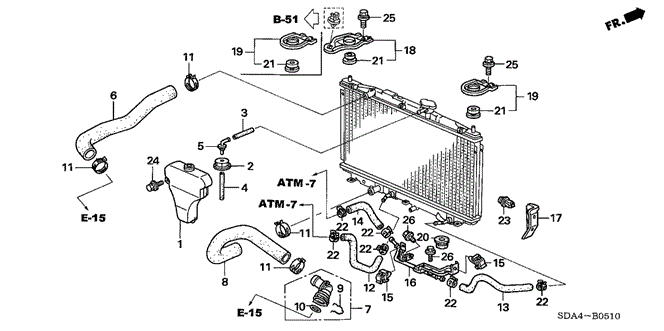

BRACKET, RADIATOR MOUNT (UPPER) in ELECTRICAL / EXHAUST / HEATER / FUEL/RADIATOR HOSE - RESERVE TANK (L4) for 2005 Honda ACCORD SEDAN

BRACKET, RADIATOR MOUNT (UPPER) in ELECTRICAL / EXHAUST / HEATER / FUEL/RADIATOR HOSE - RESERVE TANK (L4) for 2005 Honda ACCORD SEDAN #1
22
  • CLIP, OIL PIPE - $0.97
22
  • CLIP, OIL PIPE - $0.97
23
  • CLIP, FR. GRILLE - $1.92
5
  • JOINT, RESERVE TANK - $1.45
15
  • CLIP, HOSE (ATF) (BLACK) - $3.52
22
  • CLIP, OIL PIPE - $0.97
13
  • HOSE (335MM) (ATF) (BS) - $14.40
  • HOSE (335MM) (ATF) (NICHIRIN) - $6.40
20
  • CUSHION, RADIATOR MOUNTING (LOWER) - $2.48
18
  • BRACKET, RADIATOR MOUNT (UPPER) - $33.97
25
  • BOLT-WASHER (6X16) - $0.64
  • BOLT-WASHER (6X16) - $0.73
21
  • CUSHION, RADIATOR MOUNTING (UPPER) - $2.46
12
  • HOSE (550MM) (ATF) (NICHIRIN) - $8.40
6
  • HOSE, WATER (UPPER) - $11.59
14
  • HOSE (370MM) (ATF) (BS) - $14.03
  • HOSE (390MM) (ATF) - $6.20
25
  • BOLT-WASHER (6X16) - $0.64
  • BOLT-WASHER (6X16) - $0.73
11
  • CLIP, HOSE (36.5MM) (CHUO SPRING) - $4.60
21
  • CUSHION, RADIATOR MOUNTING (UPPER) - $2.46
24
  • BOLT-WASHER (6X14) - $0.64
4
  • HOSE B, RESERVE TANK - $1.97
15
  • CLIP, HOSE (ATF) (BLACK) - $3.52
11
  • CLIP, HOSE (36.5MM) (CHUO SPRING) - $4.60
21
  • CUSHION, RADIATOR MOUNTING (UPPER) - $2.46
11
  • CLIP, HOSE (36.5MM) (CHUO SPRING) - $4.60
22
  • CLIP, OIL PIPE - $0.97
7
  • CONNECTOR, QUICK WATER - $27.56
22
  • CLIP, OIL PIPE - $0.97
2
  • CAP, RESERVE TANK - $1.20
9
  • WIRE - $2.44
8
  • HOSE, WATER (LOWER) - $11.59
1
  • TANK, RESERVE - $12.52
22
  • CLIP, OIL PIPE - $0.97
26
  • BOLT, FLANGE (6X12) - $0.72
10
  • O-RING - $1.79
19
  • BRACKET, RADIATOR MOUNT (UPPER) - $5.12
11
  • CLIP, HOSE (36.5MM) (CHUO SPRING) - $4.60
26
  • BOLT, FLANGE (6X12) - $0.72
16
  • PIPE D (ATF) - $25.52
19
  • BRACKET, RADIATOR MOUNT (UPPER) - $5.12
17
  • SEAL, R. RADIATOR SIDE - $6.25
3
  • HOSE A, RESERVE TANK - $1.32
No. Part # Part # / Description Qty Req. List Price Price
1 19101-RAA-A00 19101-RAA-A00 / TANK, RESERVE

1 $17.38 $12.52
2 19102-PM5-A00 19102-PM5-A00 / CAP, RESERVE TANK

1 $1.67 $1.20
3 19103-RAA-A00 19103-RAA-A00 / HOSE A, RESERVE TANK

1 $1.83 $1.32
4 19104-RAA-A00 19104-RAA-A00 / HOSE B, RESERVE TANK

1 $2.73 $1.97
5 19106-PA0-020 19106-PA0-020 / JOINT, RESERVE TANK

1 $2.02 $1.45
6 19501-RAA-A00 19501-RAA-A00 / HOSE, WATER (UPPER)

1 $16.10 $11.59
7 19503-RAA-A01 19503-RAA-A01 / CONNECTOR, QUICK WATER

1 $38.28 $27.56
8 19505-RAA-A00 19505-RAA-A00 / HOSE, WATER (LOWER)

1 $16.10 $11.59
9 19506-RAA-A01 19506-RAA-A01 / WIRE

1 $3.38 $2.44
10 19507-RAA-A01 19507-RAA-A01 / O-RING

1 $2.48 $1.79
11 19511-PH7-003 19511-PH7-003 / CLIP, HOSE (36.5MM) (CHUO SPRING)

4 $6.38 $4.60
12 25211-RAA-006 25211-RAA-006 / HOSE (550MM) (ATF) (NICHIRIN)

1 $11.67 $8.40
13 25213-RAA-013 25213-RAA-013 / HOSE (335MM) (ATF) (BS)

1 $20.00 $14.40
13 25213-RAA-016 25213-RAA-016 / HOSE (335MM) (ATF) (NICHIRIN)

1 $8.88 $6.40
14 25214-RAA-003 25214-RAA-003 / HOSE (370MM) (ATF) (BS)

1 $19.48 $14.03
14 25214-RAA-006 25214-RAA-006 / HOSE (390MM) (ATF)

1 $8.62 $6.20
15 25216-P72-003 25216-P72-003 / CLIP, HOSE (ATF) (BLACK)

2 $4.88 $3.52
16 25940-RAA-010 25940-RAA-010 / PIPE D (ATF)

1 $35.45 $25.52
17 38925-RAA-A00 38925-RAA-A00 / SEAL, R. RADIATOR SIDE

1 $8.68 $6.25
18 74171-SDA-A00 74171-SDA-A00 / BRACKET, RADIATOR MOUNT (UPPER)

1 $47.18 $33.97
19 74171-S87-A00 74171-S87-A00 / BRACKET, RADIATOR MOUNT (UPPER)

1 $7.12 $5.12
20 74172-SDA-A00 74172-SDA-A00 / CUSHION, RADIATOR MOUNTING (LOWER)

2 $3.45 $2.48
21 74173-SJ4-000 74173-SJ4-000 / CUSHION, RADIATOR MOUNTING (UPPER)

2 $3.42 $2.46
22 90635-PT0-802 90635-PT0-802 / CLIP, OIL PIPE

6 $1.35 $0.97
23 91503-S7A-003 91503-S7A-003 / CLIP, FR. GRILLE

2 $2.67 $1.92
24 93404-06014-08 93404-06014-08 / BOLT-WASHER (6X14)

1 $0.88 $0.64
25 93404-06016-04 93404-06016-04 / BOLT-WASHER (6X16)

2 $0.88 $0.64
25 93405-06016-04 93405-06016-04 / BOLT-WASHER (6X16)

2 $1.02 $0.73
26 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

2 $1.00 $0.72
