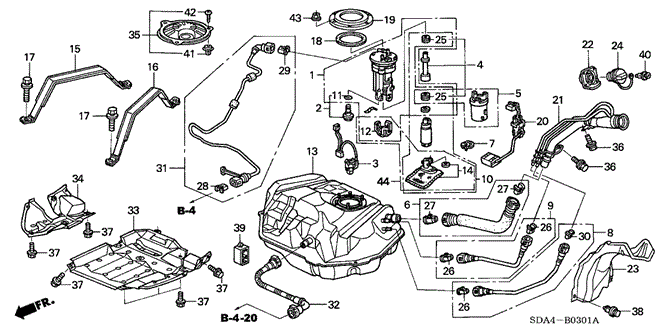

TANK, FUEL in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (2) for 2005 Honda ACCORD SEDAN

TANK, FUEL in ELECTRICAL / EXHAUST / HEATER / FUEL/FUEL TANK (2) for 2005 Honda ACCORD SEDAN #1
3
  • WIRE, LEAD - $14.68
8
  • TUBE, SIGNAL - $25.12
36
  • BOLT, GROUND (6X16) - $1.70
18
  • GASKET, BASE - $7.79
19
  • PLATE, SETTING - $8.20
14
  • FILTER SET, FUEL PUMP - $18.94
25
  • GROMMET - $24.80
42
  • SCREW, TAPPING (5X12) - $0.40
37
  • BOLT, FR. FENDER - $3.61
37
  • BOLT, FR. FENDER - $3.61
9
  • TUBE SET, VENT RETURN - $51.97
39
  • CLIP, FUEL TUBE - $1.58
33
  • COVER A, FUEL TANK - $43.79
11
  • O-RING - $1.63
27
  • RETAINER (GRAY) (TOKAI) - $3.16
10
  • PUMP SET, FUEL - $311.82
13
  • TANK, FUEL - $355.90
40
  • CLIP, FUEL FILLER CAP - $2.72
35
  • CAP ASSY., FLOOR MAINTENANCE HOLE - $8.72
26
  • RETAINER (NATURAL) (TOKAI) - $3.16
5
  • HOUSING ASSY. - $4.40
25
  • GROMMET - $24.80
27
  • RETAINER (GRAY) (TOKAI) - $3.16
15
  • BAND, FUEL TANK MOUNTING - $68.88
28
  • RETAINER (GREEN) (TOKAI) - $1.68
26
  • RETAINER (NATURAL) (TOKAI) - $3.16
37
  • BOLT, FR. FENDER - $3.61
31
  • TUBE, FUEL FEED - $27.66
24
  • CAP, FUEL FILLER (TOYODA) - $16.48
  • CAP, FUEL FILLER (TOYODA) - $16.48
  • CAP, FUEL FILLER - $26.36
37
  • BOLT, FR. FENDER - $3.61
17
  • BOLT-WASHER (10X35) - $2.22
21
  • PIPE, FUEL FILLER - $108.85
29
  • RETAINER (ORANGE) (TOKAI) - $1.42
12
  • BRACKET C - $3.54
7
  • RUBBER, FUEL PUMP INSULATOR - $1.94
34
  • COVER B, FUEL TANK - $22.75
17
  • BOLT-WASHER (10X35) - $2.22
22
  • GASKET, FUEL FILLER - $4.63
37
  • BOLT, FR. FENDER - $3.61
30
  • RETAINER (BLUE GREEN) (TOKAI) - $1.44
38
  • CLIP, FENDER (INNER) - $1.12
1
  • FILTER SET, FUEL - $26.87
20
  • METER - $20.99
4
  • PIPE SET, JOINT (A) - $4.03
16
  • BAND, L. FUEL TANK MOUNTING - $21.89
43
  • NUT, FLANGE (6MM) - $0.65
41
  • GROMMET, SCREW (5MM) (BLACK) - $2.08
36
  • BOLT, GROUND (6X16) - $1.70
32
  • TUBE, FUEL VENT (ORVR) - $70.20
26
  • RETAINER (NATURAL) (TOKAI) - $3.16
2
  • REGULATOR ASSY. - $21.62
6
  • TUBE SET, FILLER NECK - $150.84
23
  • COVER, FUEL FILLER PIPE - $12.19
No. Part # Part # / Description Qty Req. List Price Price
1 16010-SDC-L00 16010-SDC-L00 / FILTER SET, FUEL

1 $37.32 $26.87
2 16015-SDC-E00 16015-SDC-E00 / REGULATOR ASSY.

1 $30.03 $21.62
3 16016-SDC-E00 16016-SDC-E00 / WIRE, LEAD

1 $20.38 $14.68
4 16017-S9E-T00 16017-S9E-T00 / PIPE SET, JOINT (A)

1 $5.60 $4.03
5 16019-SDC-E00 16019-SDC-E00 / HOUSING ASSY.

1 $6.12 $4.40
6 16651-SDC-L01 16651-SDC-L01 / TUBE SET, FILLER NECK

1 $209.50 $150.84
7 16711-S5H-T31 16711-S5H-T31 / RUBBER, FUEL PUMP INSULATOR

1 $2.70 $1.94
8 16721-SDC-L01 16721-SDC-L01 / TUBE, SIGNAL

1 $34.88 $25.12
9 16727-SDC-L01 16727-SDC-L01 / TUBE SET, VENT RETURN

1 $72.18 $51.97
10 17040-SDC-E00 17040-SDC-E00 / PUMP SET, FUEL

1 $433.08 $311.82
11 17043-S5H-T30 17043-S5H-T30 / O-RING

1 $2.27 $1.63
12 17044-SDC-E01 17044-SDC-E01 / BRACKET C

1 $4.92 $3.54
13 17500-SDC-L03 17500-SDC-L03 / TANK, FUEL

1 $494.30 $355.90
14 17516-S2A-930 17516-S2A-930 / FILTER SET, FUEL PUMP

1 $26.30 $18.94
15 17521-S84-A00 17521-S84-A00 / BAND, FUEL TANK MOUNTING

1 $95.67 $68.88
16 17522-SDC-L00 17522-SDC-L00 / BAND, L. FUEL TANK MOUNTING

1 $30.40 $21.89
17 17525-SM4-000 17525-SM4-000 / BOLT-WASHER (10X35)

4 $3.08 $2.22
18 17574-SDC-L01 17574-SDC-L01 / GASKET, BASE

1 $10.82 $7.79
19 17579-SDC-L01 17579-SDC-L01 / PLATE, SETTING

1 $11.38 $8.20
20 17630-SDC-E01 17630-SDC-E01 / METER

1 $29.15 $20.99
21 17660-SDC-L01 17660-SDC-L01 / PIPE, FUEL FILLER

1 $151.18 $108.85
22 17662-SDA-A01 17662-SDA-A01 / GASKET, FUEL FILLER

1 $6.43 $4.63
23 17668-S84-A01 17668-S84-A01 / COVER, FUEL FILLER PIPE

1 $16.93 $12.19
24 17670-SHJ-A31 17670-SHJ-A31 / CAP, FUEL FILLER (TOYODA)

1 $22.88 $16.48
24 17670-SHJ-A31 17670-SHJ-A31 / CAP, FUEL FILLER (TOYODA)

1 $22.88 $16.48
24 17670-SDC-L01 17670-SDC-L01 / CAP, FUEL FILLER

1 $36.62 $26.36
25 17705-S0X-A01 17705-S0X-A01 / GROMMET

2 $34.45 $24.80
26 17711-SDC-L01 17711-SDC-L01 / RETAINER (NATURAL) (TOKAI)

3 $4.38 $3.16
27 17711-SDC-L11 17711-SDC-L11 / RETAINER (GRAY) (TOKAI)

2 $4.38 $3.16
28 17711-S0X-A31 17711-S0X-A31 / RETAINER (GREEN) (TOKAI)

1 $2.33 $1.68
29 17711-S0X-003 17711-S0X-003 / RETAINER (ORANGE) (TOKAI)

1 $1.97 $1.42
30 17711-S0X-931 17711-S0X-931 / RETAINER (BLUE GREEN) (TOKAI)

1 $2.00 $1.44
31 17714-SDC-L01 17714-SDC-L01 / TUBE, FUEL FEED

1 $38.42 $27.66
32 17725-SDC-L01 17725-SDC-L01 / TUBE, FUEL VENT (ORVR)

1 $97.50 $70.20
33 17733-SDC-L02 17733-SDC-L02 / COVER A, FUEL TANK

1 $60.82 $43.79
34 17734-SDC-L01 17734-SDC-L01 / COVER B, FUEL TANK

1 $31.60 $22.75
35 74660-SDA-A00 74660-SDA-A00 / CAP ASSY., FLOOR MAINTENANCE HOLE

1 $12.12 $8.72
36 90150-S04-003 90150-S04-003 / BOLT, GROUND (6X16)

2 $2.37 $1.70
37 90671-SB2-003 90671-SB2-003 / BOLT, FR. FENDER

8 $5.02 $3.61
38 91512-SX0-003 91512-SX0-003 / CLIP, FENDER (INNER)

3 $1.55 $1.12
39 91593-SDA-A01 91593-SDA-A01 / CLIP, FUEL TUBE

1 $2.20 $1.58
40 91594-S1A-E01 91594-S1A-E01 / CLIP, FUEL FILLER CAP

1 $3.78 $2.72
41 91601-SH3-013 91601-SH3-013 / GROMMET, SCREW (5MM) (BLACK)

3 $2.88 $2.08
42 93901-25220 93901-25220 / SCREW, TAPPING (5X12)

3 $0.55 $0.40
43 94050-06040 94050-06040 / NUT, FLANGE (6MM)

6 $0.90 $0.65
