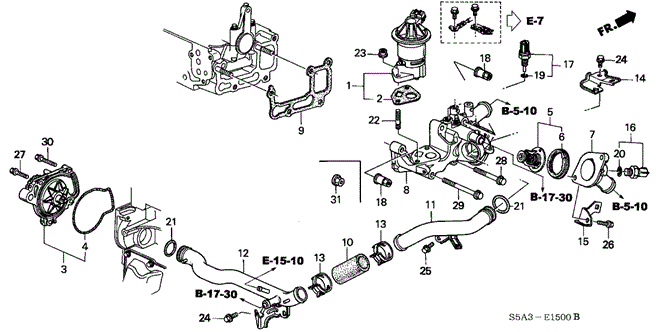

VALVE SET, EGR in ENGINE/WATER PUMP - SENSOR for 2004 Honda CIVIC COUPE

VALVE SET, EGR in ENGINE/WATER PUMP - SENSOR for 2004 Honda CIVIC COUPE #1
6
  • RUBBER, THERMOSTAT MOUNTING - $2.76
3
  • WATER PUMP - $64.61
13
  • CLIP, WATER HOSE (CHUO SPRING) - $5.03
16
  • SWITCH ASSY., THERMO (A-93) (NIPPON THERMOSTAT) - $40.22
27
  • BOLT, FLANGE (6X22) - $0.71
12
  • PIPE A, CONNECTING - $26.36
19
  • O-RING (9.5X1.9) (PANASONIC) - $1.46
22
  • BOLT, STUD (8X22) - $0.84
29
  • BOLT, FLANGE (8X70) - $1.12
18
  • NUT, SPECIAL - $4.58
30
  • BOLT, FLANGE (6X30) - $0.74
8
  • PASSAGE, WATER - $130.30
26
  • BOLT, FLANGE (6X20) - $0.16
9
  • GASKET, FR. WATER PASSAGE (NIPPON LEAKLESS) - $2.99
  • GASKET, FR. WATER PASSAGE (ISHINO GASKET) - $4.08
25
  • BOLT, FLANGE (6X12) - $0.72
5
  • THERMOSTAT ASSY. (NIPPON THERMOSTAT) - $23.18
  • THERMOSTAT ASSY. (FUJI THOMPSON) - $17.63
21
  • O-RING (27.6X4.1) - $1.96
2
  • GASKET, EGR VALVE (ISHINO GASKET) - $5.06
15
  • STAY J, ENGINE WIRE HARNESS - $26.15
18
  • NUT, SPECIAL - $4.58
31
  • NUT, FLANGE (8MM) - $0.18
28
  • BOLT, FLANGE (8X50) - $0.98
10
  • HOSE, CONNECTING PIPE - $4.12
21
  • O-RING (27.6X4.1) - $1.96
11
  • PIPE B, CONNECTING - $16.18
7
  • COVER, THERMOSTAT - $33.13
17
  • SENSOR ASSY., WATER TEMPERATURE (MATSUSHITA) - $29.47
4
  • O-RING, WATER PUMP - $2.10
  • O-RING, WATER PUMP (YAMADA) - $2.92
24
  • BOLT, FLANGE (6X12) - $0.72
14
  • STAY G, ENGINE HARNESS - $1.91
23
  • NUT, FLANGE (8MM) - $0.18
24
  • BOLT, FLANGE (6X12) - $0.72
20
  • O-RING (17.8X1.4) - $1.15
1
  • VALVE SET, EGR - $143.38
13
  • CLIP, WATER HOSE (CHUO SPRING) - $5.03
No. Part # Part # / Description Qty Req. List Price Price
1 18011-PLM-A01 18011-PLM-A01 / VALVE SET, EGR

1 $199.14 $143.38
2 18715-PB2-000 18715-PB2-000 / GASKET, EGR VALVE (ISHINO GASKET)

1 $7.03 $5.06
3 19200-PLM-A01 19200-PLM-A01 / WATER PUMP

1 $89.73 $64.61
4 19222-PDF-E00 19222-PDF-E00 / O-RING, WATER PUMP

1 $2.92 $2.10
4 19222-P08-004 19222-P08-004 / O-RING, WATER PUMP (YAMADA)

1 $4.05 $2.92
5 19301-REA-305 19301-REA-305 / THERMOSTAT ASSY. (NIPPON THERMOSTAT)

1 $32.20 $23.18
5 19301-PLC-315 19301-PLC-315 / THERMOSTAT ASSY. (FUJI THOMPSON)

1 $24.48 $17.63
6 19305-PLC-A00 19305-PLC-A00 / RUBBER, THERMOSTAT MOUNTING

1 $3.83 $2.76
7 19311-PLC-000 19311-PLC-000 / COVER, THERMOSTAT

1 $46.02 $33.13
8 19410-PLC-000 19410-PLC-000 / PASSAGE, WATER

1 $180.97 $130.30
9 19411-PLC-004 19411-PLC-004 / GASKET, FR. WATER PASSAGE (NIPPON LEAKLESS)

1 $4.15 $2.99
9 19411-PLC-003 19411-PLC-003 / GASKET, FR. WATER PASSAGE (ISHINO GASKET)

1 $5.67 $4.08
10 19503-PLC-000 19503-PLC-000 / HOSE, CONNECTING PIPE

1 $5.72 $4.12
11 19504-PLC-000 19504-PLC-000 / PIPE B, CONNECTING

1 $22.47 $16.18
12 19505-PLC-000 19505-PLC-000 / PIPE A, CONNECTING

1 $36.62 $26.36
13 19511-PA6-003 19511-PA6-003 / CLIP, WATER HOSE (CHUO SPRING)

2 $6.98 $5.03
14 32747-PLC-000 32747-PLC-000 / STAY G, ENGINE HARNESS

1 $2.65 $1.91
15 32749-PLC-000 32749-PLC-000 / STAY J, ENGINE WIRE HARNESS

1 $36.32 $26.15
16 37760-P00-003 37760-P00-003 / SWITCH ASSY., THERMO (A-93) (NIPPON THERMOSTAT)

1 $55.87 $40.22
17 37870-PLC-004 37870-PLC-004 / SENSOR ASSY., WATER TEMPERATURE (MATSUSHITA)

1 $40.93 $29.47
18 90204-PH7-000 90204-PH7-000 / NUT, SPECIAL

1 $6.37 $4.58
19 91307-PLC-004 91307-PLC-004 / O-RING (9.5X1.9) (PANASONIC)

1 $2.03 $1.46
20 91307-PN3-000 91307-PN3-000 / O-RING (17.8X1.4)

1 $1.60 $1.15
21 91314-634-000 91314-634-000 / O-RING (27.6X4.1)

2 $2.72 $1.96
22 92900-08022-0B 92900-08022-0B / BOLT, STUD (8X22)

2 $1.17 $0.84
31 94050-08080 94050-08080 / NUT, FLANGE (8MM)

1 $0.25 $0.18
25 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.72
26 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

2 $0.22 $0.16
27 95701-06022-08 95701-06022-08 / BOLT, FLANGE (6X22)

1 $0.98 $0.71
28 95701-08050-08 95701-08050-08 / BOLT, FLANGE (8X50)

2 $1.37 $0.98
29 95701-08070-08 95701-08070-08 / BOLT, FLANGE (8X70)

1 $1.55 $1.12
30 95801-06030-08 95801-06030-08 / BOLT, FLANGE (6X30)

3 $1.03 $0.74
