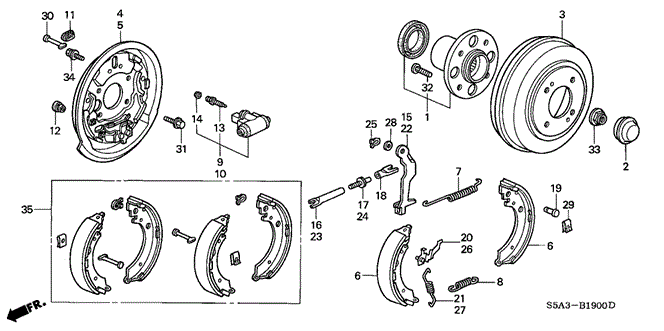

BEARING ASSY., RR. HUB UNIT in CHASSIS/REAR BRAKE (DRUM) (1) for 2004 Honda CIVIC COUPE

BEARING ASSY., RR. HUB UNIT in CHASSIS/REAR BRAKE (DRUM) (1) for 2004 Honda CIVIC COUPE #1
8
  • SPRING B, BRAKE SHOE RETURN - $1.22
1
  • BEARING ASSY., RR. HUB UNIT - $81.84
27
  • SPRING, L. ADJUSTER - $2.88
6
  • SHOE, RR. BRAKE - $12.60
29
  • SPRING, SHOE CLAMP - $0.77
33
  • NUT, SPINDLE - $2.20
21
  • SPRING, R. ADJUSTER - $2.88
11
  • PLUG, ADJUSTER - $0.64
4
  • PLATE, R. RR. BRAKE BACK - $36.43
25
  • U-CLIP - $0.41
23
  • ROD A, L. CONNECTING - $3.79
  • ROD A, L. CONNECTING - $3.79
32
  • BOLT, WHEEL (SAGA) - $4.04
  • BOLT, WHEEL (ROCKNEL FASTENER) - $1.32
  • BOLT, WHEEL (NAGOYA RASHI) - $1.32
13
  • SCREW, BLEEDER (NISSIN) - $4.19
31
  • BOLT, FLANGE (10X13) - $0.58
26
  • LEVER, L. ADJUSTER - $8.16
24
  • BOLT, L. ADJUSTER - $4.61
7
  • SPRING A, BRAKE SHOE RETURN - $1.12
9
  • CYLINDER ASSY. A, RR. WHEEL - $41.78
30
  • PIN, TENSIONER - $1.84
14
  • CAP, BLEEDER SCREW - $2.36
3
  • DRUM, RR. BRAKE - $64.84
2
  • CAP, HUB UNIT - $3.31
15
  • LEVER, R. PARKING BRAKE - $15.84
19
  • PIN, PARKING BRAKE LEVER - $1.98
6
  • SHOE, RR. BRAKE - $12.60
5
  • PLATE, L. RR. BRAKE BACK - $36.43
28
  • WASHER, WAVE - $1.63
16
  • ROD A, R. CONNECTING - $3.79
  • ROD A, R. CONNECTING - $3.79
34
  • BOLT, FLANGE (6X12) - $0.72
17
  • BOLT, R. ADJUSTER - $4.61
  • BOLT, R. ADJUSTER - $4.61
22
  • LEVER, L. PARKING BRAKE - $15.84
20
  • LEVER, R. ADJUSTER - $8.16
10
  • CYLINDER ASSY. B, RR. WHEEL - $41.78
18
  • ROD B, CONNECTING - $2.69
12
  • PLUG, ADJUSTER - $0.92
No. Part # Part # / Description Qty Req. List Price Price
1 42200-S5A-A21 42200-S5A-A21 / BEARING ASSY., RR. HUB UNIT

2 $113.67 $81.84
2 42326-SLA-000 42326-SLA-000 / CAP, HUB UNIT

2 $4.60 $3.31
3 42610-S5A-000 42610-S5A-000 / DRUM, RR. BRAKE

2 $90.05 $64.84
4 43110-S5D-A02 43110-S5D-A02 / PLATE, R. RR. BRAKE BACK

1 $50.60 $36.43
5 43120-S5D-A02 43120-S5D-A02 / PLATE, L. RR. BRAKE BACK

1 $50.60 $36.43
6 43153-S5A-A01 43153-S5A-A01 / SHOE, RR. BRAKE

4 $17.50 $12.60
7 43171-S04-013 43171-S04-013 / SPRING A, BRAKE SHOE RETURN

2 $1.55 $1.12
8 43172-S04-003 43172-S04-003 / SPRING B, BRAKE SHOE RETURN

2 $1.70 $1.22
9 43300-S7B-003 43300-S7B-003 / CYLINDER ASSY. A, RR. WHEEL

1 $58.03 $41.78
10 43301-S7B-003 43301-S7B-003 / CYLINDER ASSY. B, RR. WHEEL

1 $58.03 $41.78
11 43345-S04-003 43345-S04-003 / PLUG, ADJUSTER

2 $0.88 $0.64
12 43345-S5A-003 43345-S5A-003 / PLUG, ADJUSTER

2 $1.28 $0.92
13 43352-568-003 43352-568-003 / SCREW, BLEEDER (NISSIN)

2 $5.82 $4.19
14 43353-SD5-003 43353-SD5-003 / CAP, BLEEDER SCREW

2 $3.28 $2.36
15 43361-SH5-003 43361-SH5-003 / LEVER, R. PARKING BRAKE

1 $22.00 $15.84
16 43362-S5A-013 43362-S5A-013 / ROD A, R. CONNECTING

1 $5.27 $3.79
16 43362-S5A-013 43362-S5A-013 / ROD A, R. CONNECTING

1 $5.27 $3.79
17 43363-S5A-013 43363-S5A-013 / BOLT, R. ADJUSTER

1 $6.40 $4.61
17 43363-S5A-013 43363-S5A-013 / BOLT, R. ADJUSTER

1 $6.40 $4.61
18 43364-S5A-003 43364-S5A-003 / ROD B, CONNECTING

2 $3.73 $2.69
19 43365-SA5-003 43365-SA5-003 / PIN, PARKING BRAKE LEVER

2 $2.75 $1.98
20 43366-SH5-003 43366-SH5-003 / LEVER, R. ADJUSTER

1 $11.33 $8.16
21 43367-SH5-003 43367-SH5-003 / SPRING, R. ADJUSTER

1 $4.00 $2.88
22 43371-SH5-003 43371-SH5-003 / LEVER, L. PARKING BRAKE

1 $22.00 $15.84
23 43372-S5A-013 43372-S5A-013 / ROD A, L. CONNECTING

1 $5.27 $3.79
23 43372-S5A-013 43372-S5A-013 / ROD A, L. CONNECTING

1 $5.27 $3.79
24 43373-S5A-003 43373-S5A-003 / BOLT, L. ADJUSTER

1 $6.40 $4.61
25 43375-SA0-003 43375-SA0-003 / U-CLIP

2 $0.57 $0.41
26 43376-SH5-003 43376-SH5-003 / LEVER, L. ADJUSTER

1 $11.33 $8.16
27 43377-SH5-003 43377-SH5-003 / SPRING, L. ADJUSTER

1 $4.00 $2.88
28 43379-SA5-003 43379-SA5-003 / WASHER, WAVE

2 $2.27 $1.63
29 45172-S04-003 45172-S04-003 / SPRING, SHOE CLAMP

4 $1.07 $0.77
30 45175-SA0-013 45175-SA0-013 / PIN, TENSIONER

4 $2.55 $1.84
31 90001-SH3-000 90001-SH3-000 / BOLT, FLANGE (10X13)

8 $0.80 $0.58
32 90113-SA0-006 90113-SA0-006 / BOLT, WHEEL (SAGA)

8 $5.62 $4.04
32 90113-SM1-005 90113-SM1-005 / BOLT, WHEEL (ROCKNEL FASTENER)

8 $1.83 $1.32
32 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

8 $1.83 $1.32
33 90305-S30-003 90305-S30-003 / NUT, SPINDLE

2 $3.05 $2.20
34 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

4 $1.00 $0.72
