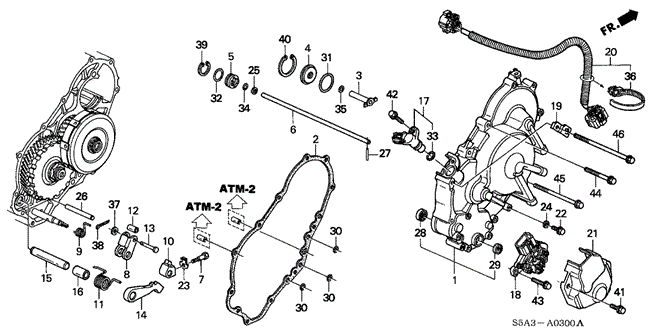

COVER, R. SIDE in TRANSMISSION - AUTOMATIC/AT RIGHT SIDE COVER for 2004 Honda CIVIC COUPE

COVER, R. SIDE in TRANSMISSION - AUTOMATIC/AT RIGHT SIDE COVER for 2004 Honda CIVIC COUPE #1
23
  • WASHER, LOCK (6MM) - $1.88
9
  • SPRING, PARKING BRAKE - $2.23
6
  • PIPE C, FEED - $13.13
8
  • LEVER, PARKING BRAKE - $12.47
21
  • COVER, POSITION SENSOR - $13.04
17
  • PICK-UP ASSY., MAIN (TEC) - $85.09
42
  • BOLT, FLANGE (6X16) - $0.64
35
  • O-RING (8.5X1.9) (NOK) - $1.69
2
  • GASKET, R. SIDE COVER - $0.30
30
  • O-RING (7.7X2.3) (ARAI) - $1.20
30
  • O-RING (7.7X2.3) (ARAI) - $1.20
1
  • COVER, R. SIDE - $192.68
41
  • BOLT, FLANGE (6X12) - $0.72
27
  • ROLLER (2X19.8) - $1.15
3
  • PIPE A, FEED - $7.36
44
  • BOLT, FLANGE (6X35) - $0.74
14
  • PAWL, PARKING BRAKE - $17.20
38
  • PIN, SPLIT (1.6X12) - $0.34
28
  • BEARING, BALL (9X20X6) - $11.50
20
  • HARNESS, POSITION SENSOR - $24.08
11
  • SPRING, PARKING PAWL - $3.62
39
  • CIRCLIP (INNER) (26MM) - $0.77
36
  • CLIP A, HARNESS BAND (129.4MM)(DARK GRAY) - $2.95
15
  • SHAFT, PARKING BRAKE - $2.69
22
  • BOLT, SEALING (8MM) - $2.26
25
  • COLLAR (8X11) - $1.55
24
  • GASKET (8MM) - $1.20
37
  • WASHER, PLAIN (6MM) - $0.25
45
  • BOLT, FLANGE (6X55) - $0.86
26
  • PIN, DOWEL (8X55) - $3.30
32
  • O-RING (19.8X1.9) (ARAI) - $2.03
33
  • O-RING (16X2.1) (NOK) - $1.45
29
  • OIL SEAL (9X18X7) (ARAI) - $3.20
40
  • CIRCLIP, INNER (38MM) - $1.03
30
  • O-RING (7.7X2.3) (ARAI) - $1.20
10
  • STOPPER, PARKING BRAKE (2) - $10.21
  • STOPPER, PARKING BRAKE (1) - $10.21
  • STOPPER, PARKING BRAKE (3) - $10.21
18
  • SENSOR ASSY., POSITION - $56.16
7
  • BOLT, SHAFT FORK SETTING - $2.04
4
  • GUIDE A, FEED PIPE - $3.97
34
  • O-RING (7.7X1.9) (NOK) - $1.42
43
  • BOLT, FLANGE (6X20) - $0.16
12
  • ROLLER, PARKING BRAKE - $4.52
19
  • STAY B, POSITION SENSOR HARNESS - $1.75
13
  • PIN, ROLLER (6MM) - $4.32
46
  • BOLT, FLANGE (6X60) - $0.73
31
  • O-RING (34X1.9) (ARAI) - $1.96
16
  • COLLAR, PARKING SHAFT - $1.51
5
  • FLANGE, FEED PIPE - $9.77
No. Part # Part # / Description Qty Req. List Price Price
1 21240-PLX-A00 21240-PLX-A00 / COVER, R. SIDE

1 $267.62 $192.68
2 21812-PLX-000 21812-PLX-000 / GASKET, R. SIDE COVER

1 $0.42 $0.30
3 22710-PH0-010 22710-PH0-010 / PIPE A, FEED

1 $10.22 $7.36
4 22713-PC9-010 22713-PC9-010 / GUIDE A, FEED PIPE

1 $5.52 $3.97
5 22721-PA9-003 22721-PA9-003 / FLANGE, FEED PIPE

1 $13.57 $9.77
6 22722-P24-J00 22722-P24-J00 / PIPE C, FEED

1 $18.23 $13.13
7 24282-634-000 24282-634-000 / BOLT, SHAFT FORK SETTING

1 $2.83 $2.04
8 24532-PN6-003 24532-PN6-003 / LEVER, PARKING BRAKE

1 $17.32 $12.47
9 24535-P4T-010 24535-P4T-010 / SPRING, PARKING BRAKE

1 $3.10 $2.23
10 24538-PA9-003 24538-PA9-003 / STOPPER, PARKING BRAKE (2)

1 $14.18 $10.21
10 24537-PA9-003 24537-PA9-003 / STOPPER, PARKING BRAKE (1)

1 $14.18 $10.21
10 24539-PA9-003 24539-PA9-003 / STOPPER, PARKING BRAKE (3)

1 $14.18 $10.21
11 24552-PS5-000 24552-PS5-000 / SPRING, PARKING PAWL

1 $5.03 $3.62
12 24553-PN6-000 24553-PN6-000 / ROLLER, PARKING BRAKE

1 $6.28 $4.52
13 24555-PN6-000 24555-PN6-000 / PIN, ROLLER (6MM)

1 $6.00 $4.32
14 24561-PLX-A00 24561-PLX-A00 / PAWL, PARKING BRAKE

1 $23.88 $17.20
15 24562-PLX-000 24562-PLX-000 / SHAFT, PARKING BRAKE

1 $3.73 $2.69
16 24563-PLX-000 24563-PLX-000 / COLLAR, PARKING SHAFT

1 $2.10 $1.51
17 28810-P4V-003 28810-P4V-003 / PICK-UP ASSY., MAIN (TEC)

1 $118.18 $85.09
18 28900-PLX-013 28900-PLX-013 / SENSOR ASSY., POSITION

1 $78.00 $56.16
19 28913-PLX-000 28913-PLX-000 / STAY B, POSITION SENSOR HARNESS

1 $2.43 $1.75
20 28920-PLX-A00 28920-PLX-A00 / HARNESS, POSITION SENSOR

1 $33.45 $24.08
21 28950-PLX-000 28950-PLX-000 / COVER, POSITION SENSOR

1 $18.12 $13.04
22 90024-612-000 90024-612-000 / BOLT, SEALING (8MM)

4 $3.13 $2.26
23 90433-639-000 90433-639-000 / WASHER, LOCK (6MM)

1 $2.62 $1.88
24 90471-580-000 90471-580-000 / GASKET (8MM)

4 $1.67 $1.20
25 90507-PA9-000 90507-PA9-000 / COLLAR (8X11)

1 $2.15 $1.55
26 90701-639-000 90701-639-000 / PIN, DOWEL (8X55)

1 $4.58 $3.30
27 90703-PA9-003 90703-PA9-003 / ROLLER (2X19.8)

1 $1.60 $1.15
28 91006-P1B-003 91006-P1B-003 / BEARING, BALL (9X20X6)

1 $15.97 $11.50
29 91201-PA9-004 91201-PA9-004 / OIL SEAL (9X18X7) (ARAI)

1 $4.45 $3.20
30 91301-PC9-003 91301-PC9-003 / O-RING (7.7X2.3) (ARAI)

3 $1.67 $1.20
31 91305-PC9-003 91305-PC9-003 / O-RING (34X1.9) (ARAI)

1 $2.72 $1.96
32 91308-PA9-003 91308-PA9-003 / O-RING (19.8X1.9) (ARAI)

1 $2.82 $2.03
33 91309-PX4-003 91309-PX4-003 / O-RING (16X2.1) (NOK)

1 $2.02 $1.45
34 91311-PA9-004 91311-PA9-004 / O-RING (7.7X1.9) (NOK)

1 $1.97 $1.42
35 91314-PC9-004 91314-PC9-004 / O-RING (8.5X1.9) (NOK)

1 $2.35 $1.69
36 91506-P01-003 91506-P01-003 / CLIP A, HARNESS BAND (129.4MM)(DARK GRAY)

1 $4.10 $2.95
37 94101-06800 94101-06800 / WASHER, PLAIN (6MM)

1 $0.35 $0.25
38 94201-16120 94201-16120 / PIN, SPLIT (1.6X12)

1 $0.47 $0.34
39 94520-26000 94520-26000 / CIRCLIP (INNER) (26MM)

1 $1.07 $0.77
40 94520-38000 94520-38000 / CIRCLIP, INNER (38MM)

1 $1.43 $1.03
41 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

2 $1.00 $0.72
42 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

1 $0.88 $0.64
43 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

2 $0.22 $0.16
44 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

7 $1.03 $0.74
45 95701-06055-08 95701-06055-08 / BOLT, FLANGE (6X55)

5 $1.20 $0.86
46 96300-06060-08 96300-06060-08 / BOLT, FLANGE (6X60)

1 $1.02 $0.73
