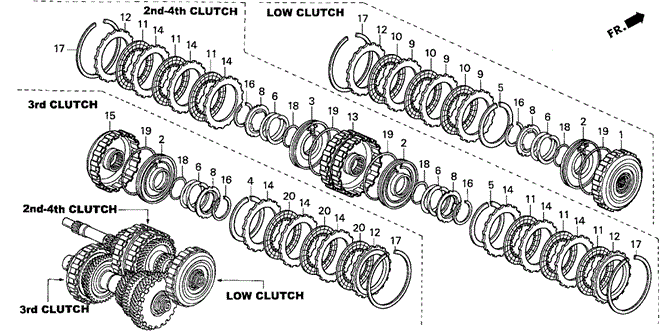

GUIDE, CLUTCH (2-4) in TRANSMISSION - AUTOMATIC/AT CLUTCH for 2004 Honda CIVIC COUPE

GUIDE, CLUTCH (2-4) in TRANSMISSION - AUTOMATIC/AT CLUTCH for 2004 Honda CIVIC COUPE #1
17
  • RING, SNAP (119MM) - $6.53
  • RING, SNAP (119MM) (F.C.C.) - $1.10
14
  • PLATE, CLUTCH - $13.12
10
  • DISK, CLUTCH - $5.81
14
  • PLATE, CLUTCH - $13.12
10
  • DISK, CLUTCH - $5.81
14
  • PLATE, CLUTCH - $13.12
17
  • RING, SNAP (119MM) - $6.53
  • RING, SNAP (119MM) (F.C.C.) - $1.10
1
  • GUIDE, LOW CLUTCH - $39.91
9
  • PLATE, CLUTCH - $3.61
11
  • DISK, CLUTCH - $5.81
  • DISK, CLUTCH - $17.39
8
  • SEAT, SECOND RETURN SPRING - $3.65
6
  • SPRING, CLUTCH RETURN - $13.57
  • SPRING, CLUTCH RETURN - $3.78
14
  • PLATE, CLUTCH - $13.12
12
  • PLATE, CLUTCH END (3) (2.3MM) - $13.12
  • PLATE, CLUTCH END (8) (2.8MM) - $9.05
  • PLATE, CLUTCH END (2) (2.2MM) - $13.12
  • PLATE, CLUTCH END (9) (2.9MM) - $9.05
  • PLATE, CLUTCH END (6) (2.6MM) - $13.12
  • PLATE, CLUTCH END (7) (2.7MM) - $9.26
  • PLATE, CLUTCH END (4) (2.4MM) - $13.12
  • PLATE, CLUTCH END (5) (2.5MM) - $13.12
  • PLATE, CLUTCH END (1) (2.1MM) - $9.26
14
  • PLATE, CLUTCH - $13.12
16
  • CIRCLIP (OUTER) (42MM) - $1.22
11
  • DISK, CLUTCH - $5.81
  • DISK, CLUTCH - $17.39
13
  • GUIDE, CLUTCH (2-4) - $70.57
2
  • PISTON, CLUTCH (CUTTING PISTON) - $54.31
16
  • CIRCLIP (OUTER) (42MM) - $1.22
20
  • DISK, CLUTCH - $5.81
  • DISK, CLUTCH - $17.39
  • DISK, CLUTCH - $17.22
8
  • SEAT, SECOND RETURN SPRING - $3.65
14
  • PLATE, CLUTCH - $13.12
10
  • DISK, CLUTCH - $5.81
9
  • PLATE, CLUTCH - $3.61
16
  • CIRCLIP (OUTER) (42MM) - $1.22
17
  • RING, SNAP (119MM) - $6.53
  • RING, SNAP (119MM) (F.C.C.) - $1.10
2
  • PISTON, CLUTCH (CUTTING PISTON) - $54.31
19
  • O-RING (104X2.2) (NOK) - $3.83
12
  • PLATE, CLUTCH END (3) (2.3MM) - $13.12
  • PLATE, CLUTCH END (8) (2.8MM) - $9.05
  • PLATE, CLUTCH END (2) (2.2MM) - $13.12
  • PLATE, CLUTCH END (9) (2.9MM) - $9.05
  • PLATE, CLUTCH END (6) (2.6MM) - $13.12
  • PLATE, CLUTCH END (7) (2.7MM) - $9.26
  • PLATE, CLUTCH END (4) (2.4MM) - $13.12
  • PLATE, CLUTCH END (5) (2.5MM) - $13.12
  • PLATE, CLUTCH END (1) (2.1MM) - $9.26
18
  • O-RING (41.8X2.2) (NOK) - $2.18
6
  • SPRING, CLUTCH RETURN - $13.57
  • SPRING, CLUTCH RETURN - $3.78
20
  • DISK, CLUTCH - $5.81
  • DISK, CLUTCH - $17.39
  • DISK, CLUTCH - $17.22
18
  • O-RING (41.8X2.2) (NOK) - $2.18
14
  • PLATE, CLUTCH - $13.12
12
  • PLATE, CLUTCH END (3) (2.3MM) - $13.12
  • PLATE, CLUTCH END (8) (2.8MM) - $9.05
  • PLATE, CLUTCH END (2) (2.2MM) - $13.12
  • PLATE, CLUTCH END (9) (2.9MM) - $9.05
  • PLATE, CLUTCH END (6) (2.6MM) - $13.12
  • PLATE, CLUTCH END (7) (2.7MM) - $9.26
  • PLATE, CLUTCH END (4) (2.4MM) - $13.12
  • PLATE, CLUTCH END (5) (2.5MM) - $13.12
  • PLATE, CLUTCH END (1) (2.1MM) - $9.26
17
  • RING, SNAP (119MM) - $6.53
  • RING, SNAP (119MM) (F.C.C.) - $1.10
14
  • PLATE, CLUTCH - $13.12
6
  • SPRING, CLUTCH RETURN - $13.57
  • SPRING, CLUTCH RETURN - $3.78
11
  • DISK, CLUTCH - $5.81
  • DISK, CLUTCH - $17.39
15
  • GUIDE, THIRD CLUTCH - $36.79
19
  • O-RING (104X2.2) (NOK) - $3.83
6
  • SPRING, CLUTCH RETURN - $13.57
  • SPRING, CLUTCH RETURN - $3.78
5
  • SPRING, SECOND CLUTCH DISK - $3.34
11
  • DISK, CLUTCH - $5.81
  • DISK, CLUTCH - $17.39
9
  • PLATE, CLUTCH - $3.61
11
  • DISK, CLUTCH - $5.81
  • DISK, CLUTCH - $17.39
12
  • PLATE, CLUTCH END (3) (2.3MM) - $13.12
  • PLATE, CLUTCH END (8) (2.8MM) - $9.05
  • PLATE, CLUTCH END (2) (2.2MM) - $13.12
  • PLATE, CLUTCH END (9) (2.9MM) - $9.05
  • PLATE, CLUTCH END (6) (2.6MM) - $13.12
  • PLATE, CLUTCH END (7) (2.7MM) - $9.26
  • PLATE, CLUTCH END (4) (2.4MM) - $13.12
  • PLATE, CLUTCH END (5) (2.5MM) - $13.12
  • PLATE, CLUTCH END (1) (2.1MM) - $9.26
18
  • O-RING (41.8X2.2) (NOK) - $2.18
20
  • DISK, CLUTCH - $5.81
  • DISK, CLUTCH - $17.39
  • DISK, CLUTCH - $17.22
11
  • DISK, CLUTCH - $5.81
  • DISK, CLUTCH - $17.39
14
  • PLATE, CLUTCH - $13.12
8
  • SEAT, SECOND RETURN SPRING - $3.65
19
  • O-RING (104X2.2) (NOK) - $3.83
4
  • SPRING, CLUTCH WAVE - $3.64
3
  • PISTON, CLUTCH - $55.15
19
  • O-RING (104X2.2) (NOK) - $3.83
8
  • SEAT, SECOND RETURN SPRING - $3.65
5
  • SPRING, SECOND CLUTCH DISK - $3.34
18
  • O-RING (41.8X2.2) (NOK) - $2.18
16
  • CIRCLIP (OUTER) (42MM) - $1.22
2
  • PISTON, CLUTCH (CUTTING PISTON) - $54.31
No. Part # Part # / Description Qty Req. List Price Price
1 22510-PLX-A01 22510-PLX-A01 / GUIDE, LOW CLUTCH

1 $55.43 $39.91
2 22530-PL4-660 22530-PL4-660 / PISTON, CLUTCH (CUTTING PISTON)

3 $75.43 $54.31
3 22530-P4R-000 22530-P4R-000 / PISTON, CLUTCH

1 $76.60 $55.15
4 22536-PLX-003 22536-PLX-003 / SPRING, CLUTCH WAVE

1 $5.05 $3.64
5 22537-PFF-003 22537-PFF-003 / SPRING, SECOND CLUTCH DISK

2 $4.63 $3.34
6 22541-PC9-000 22541-PC9-000 / SPRING, CLUTCH RETURN

4 $18.85 $13.57
6 22541-P24-A01 22541-P24-A01 / SPRING, CLUTCH RETURN

4 $5.25 $3.78
8 22542-PL4-000 22542-PL4-000 / SEAT, SECOND RETURN SPRING

4 $5.07 $3.65
9 22543-P4R-003 22543-P4R-003 / PLATE, CLUTCH

3 $5.02 $3.61
20 22544-PLX-A01 22544-PLX-A01 / DISK, CLUTCH

3 $8.07 $5.81
20 22544-PLX-L01 22544-PLX-L01 / DISK, CLUTCH

3 $24.15 $17.39
12 22553-P4R-003 22553-P4R-003 / PLATE, CLUTCH END (3) (2.3MM)

4 $18.22 $13.12
12 22558-P4R-003 22558-P4R-003 / PLATE, CLUTCH END (8) (2.8MM)

4 $12.57 $9.05
12 22552-P4R-003 22552-P4R-003 / PLATE, CLUTCH END (2) (2.2MM)

4 $18.22 $13.12
12 22559-P4R-003 22559-P4R-003 / PLATE, CLUTCH END (9) (2.9MM)

4 $12.57 $9.05
12 22556-P4R-003 22556-P4R-003 / PLATE, CLUTCH END (6) (2.6MM)

4 $18.22 $13.12
12 22557-P4R-003 22557-P4R-003 / PLATE, CLUTCH END (7) (2.7MM)

4 $12.87 $9.26
12 22554-P4R-003 22554-P4R-003 / PLATE, CLUTCH END (4) (2.4MM)

4 $18.22 $13.12
12 22555-P4R-003 22555-P4R-003 / PLATE, CLUTCH END (5) (2.5MM)

4 $18.22 $13.12
12 22551-P4R-003 22551-P4R-003 / PLATE, CLUTCH END (1) (2.1MM)

4 $12.87 $9.26
13 22610-PLX-A01 22610-PLX-A01 / GUIDE, CLUTCH (2-4)

1 $98.02 $70.57
14 22643-P4R-003 22643-P4R-003 / PLATE, CLUTCH

9 $18.22 $13.12
15 22651-PLX-A01 22651-PLX-A01 / GUIDE, THIRD CLUTCH

1 $51.10 $36.79
16 90603-PL4-000 90603-PL4-000 / CIRCLIP (OUTER) (42MM)

4 $1.70 $1.22
17 90605-PC9-000 90605-PC9-000 / RING, SNAP (119MM)

4 $9.07 $6.53
17 90605-P24-A01 90605-P24-A01 / RING, SNAP (119MM) (F.C.C.)

4 $1.53 $1.10
18 91302-PL4-003 91302-PL4-003 / O-RING (41.8X2.2) (NOK)

4 $3.03 $2.18
19 91303-PC9-004 91303-PC9-004 / O-RING (104X2.2) (NOK)

4 $5.32 $3.83
20 22544-RJM-003 22544-RJM-003 / DISK, CLUTCH

3 $23.92 $17.22
