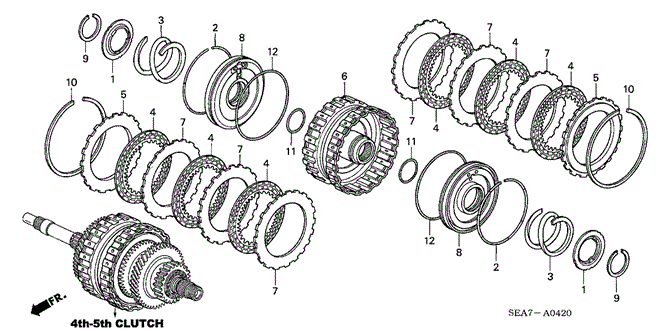

GUIDE, CLUTCH in TRANSMISSION - AUTOMATIC/AT CLUTCH (4TH-5TH) (L4) (1) for 2004 Honda ACCORD SEDAN

GUIDE, CLUTCH in TRANSMISSION - AUTOMATIC/AT CLUTCH (4TH-5TH) (L4) (1) for 2004 Honda ACCORD SEDAN #1
4
  • DISK, CLUTCH - $17.22
5
  • PLATE, CLUTCH END (8) (2.8MM) - $12.58
  • PLATE, CLUTCH END (6) (2.6MM) - $12.58
  • PLATE, CLUTCH END (5) (2.5MM) - $12.58
  • PLATE, CLUTCH END (3) (2.3MM) - $12.58
  • PLATE, CLUTCH END (9) (2.9MM) - $12.58
  • PLATE, CLUTCH END (4) (2.4MM) - $12.58
  • PLATE, CLUTCH END (2) (2.2MM) - $12.58
  • PLATE, CLUTCH END (1) (2.1MM) - $12.58
  • PLATE, CLUTCH END (7) (2.7MM) - $12.58
2
  • SPRING, CLUTCH WAVE - $7.13
4
  • DISK, CLUTCH - $17.22
2
  • SPRING, CLUTCH WAVE - $7.13
7
  • PLATE, CLUTCH WAVE (2.3MM) - $6.28
4
  • DISK, CLUTCH - $17.22
4
  • DISK, CLUTCH - $17.22
7
  • PLATE, CLUTCH WAVE (2.3MM) - $6.28
7
  • PLATE, CLUTCH WAVE (2.3MM) - $6.28
4
  • DISK, CLUTCH - $17.22
6
  • GUIDE, CLUTCH - $236.14
10
  • RING, SNAP (133MM) - $1.25
9
  • CIRCLIP (OUTER) (47MM) - $1.81
10
  • RING, SNAP (133MM) - $1.25
1
  • SEAT, RETURN SPRING - $4.24
8
  • PISTON, CLUTCH - $51.97
5
  • PLATE, CLUTCH END (8) (2.8MM) - $12.58
  • PLATE, CLUTCH END (6) (2.6MM) - $12.58
  • PLATE, CLUTCH END (5) (2.5MM) - $12.58
  • PLATE, CLUTCH END (3) (2.3MM) - $12.58
  • PLATE, CLUTCH END (9) (2.9MM) - $12.58
  • PLATE, CLUTCH END (4) (2.4MM) - $12.58
  • PLATE, CLUTCH END (2) (2.2MM) - $12.58
  • PLATE, CLUTCH END (1) (2.1MM) - $12.58
  • PLATE, CLUTCH END (7) (2.7MM) - $12.58
3
  • SPRING, CLUTCH RETURN (SANKO) - $12.16
9
  • CIRCLIP (OUTER) (47MM) - $1.81
7
  • PLATE, CLUTCH WAVE (2.3MM) - $6.28
12
  • O-RING (114X2.2) (NOK) - $5.00
3
  • SPRING, CLUTCH RETURN (SANKO) - $12.16
8
  • PISTON, CLUTCH - $51.97
11
  • O-RING (46.8X2.2) (NOK) - $2.99
11
  • O-RING (46.8X2.2) (NOK) - $2.99
1
  • SEAT, RETURN SPRING - $4.24
12
  • O-RING (114X2.2) (NOK) - $5.00
7
  • PLATE, CLUTCH WAVE (2.3MM) - $6.28
4
  • DISK, CLUTCH - $17.22
7
  • PLATE, CLUTCH WAVE (2.3MM) - $6.28
No. Part # Part # / Description Qty Req. List Price Price
1 22533-PX4-010 22533-PX4-010 / SEAT, RETURN SPRING

2 $5.88 $4.24
2 22536-PRP-013 22536-PRP-013 / SPRING, CLUTCH WAVE

2 $9.90 $7.13
3 22541-PX4-004 22541-PX4-004 / SPRING, CLUTCH RETURN (SANKO)

2 $16.88 $12.16
4 22546-PPV-A01 22546-PPV-A01 / DISK, CLUTCH

6 $23.92 $17.22
5 22588-RCL-003 22588-RCL-003 / PLATE, CLUTCH END (8) (2.8MM)

2 $17.47 $12.58
5 22586-RCL-003 22586-RCL-003 / PLATE, CLUTCH END (6) (2.6MM)

2 $17.47 $12.58
5 22585-RCL-003 22585-RCL-003 / PLATE, CLUTCH END (5) (2.5MM)

2 $17.47 $12.58
5 22583-RCL-003 22583-RCL-003 / PLATE, CLUTCH END (3) (2.3MM)

2 $17.47 $12.58
5 22589-RCL-003 22589-RCL-003 / PLATE, CLUTCH END (9) (2.9MM)

2 $17.47 $12.58
5 22584-RCL-003 22584-RCL-003 / PLATE, CLUTCH END (4) (2.4MM)

2 $17.47 $12.58
5 22582-RCL-003 22582-RCL-003 / PLATE, CLUTCH END (2) (2.2MM)

2 $17.47 $12.58
5 22581-RCL-003 22581-RCL-003 / PLATE, CLUTCH END (1) (2.1MM)

2 $17.47 $12.58
5 22587-RCL-003 22587-RCL-003 / PLATE, CLUTCH END (7) (2.7MM)

2 $17.47 $12.58
6 22651-RCL-013 22651-RCL-013 / GUIDE, CLUTCH

1 $327.97 $236.14
7 22653-RCL-003 22653-RCL-003 / PLATE, CLUTCH WAVE (2.3MM)

6 $8.72 $6.28
8 22680-RCL-003 22680-RCL-003 / PISTON, CLUTCH

2 $72.18 $51.97
9 90603-PX4-000 90603-PX4-000 / CIRCLIP (OUTER) (47MM)

2 $2.52 $1.81
10 90605-P7T-003 90605-P7T-003 / RING, SNAP (133MM)

2 $1.73 $1.25
11 91302-PX4-004 91302-PX4-004 / O-RING (46.8X2.2) (NOK)

2 $4.15 $2.99
12 91303-PX4-004 91303-PX4-004 / O-RING (114X2.2) (NOK)

2 $6.95 $5.00
