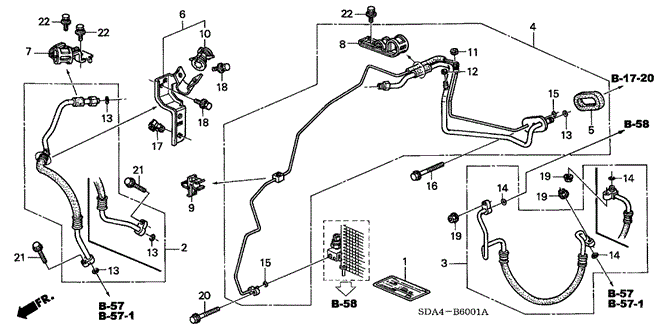

SEAL, FLANGE in BODY / AIR CONDITIONING/A/C HOSES - PIPES (2) for 2004 Honda ACCORD SEDAN

SEAL, FLANGE in BODY / AIR CONDITIONING/A/C HOSES - PIPES (2) for 2004 Honda ACCORD SEDAN #1
13
  • O-RING (5/8") - $2.39
  • O-RING (5/8") - $2.39
13
  • O-RING (5/8") - $2.39
  • O-RING (5/8") - $2.39
21
  • BOLT, FLANGE (6X25) - $0.71
17
  • CLIP (8MM) - $2.09
21
  • BOLT, FLANGE (6X25) - $0.71
16
  • BOLT, FLANGE (6X38) (GUIDE) - $0.25
14
  • O-RING (1/2") - $2.39
2
  • HOSE, SUCTION - $38.83
12
  • KIT, VALVE CAP (L) - $3.24
3
  • HOSE, DISCHARGE - $49.46
5
  • SEAL, FLANGE - $79.62
7
  • CLAMP A, AIR CONDITIONER PIPE - $5.48
18
  • BOLT-WASHER (6X16) - $0.73
22
  • BOLT-WASHER (6X14) - $0.67
10
  • RUBBER, SUCTION PIPE - $2.98
13
  • O-RING (5/8") - $2.39
  • O-RING (5/8") - $2.39
22
  • BOLT-WASHER (6X14) - $0.67
8
  • CLAMP B, AIR CONDITIONER PIPE - $7.74
4
  • PIPE ASSY., AIR CONDITIONER - $61.73
18
  • BOLT-WASHER (6X16) - $0.73
15
  • O-RING (8MM) - $2.59
13
  • O-RING (5/8") - $2.39
  • O-RING (5/8") - $2.39
6
  • STAY ASSY., SUCTION HOSE - $8.08
1
  • LABEL, AIR CONDITIONER CAUTION - $1.32
20
  • BOLT, FLANGE (6X25) - $0.71
19
  • NUT, FLANGE (6MM) - $0.17
15
  • O-RING (8MM) - $2.59
9
  • CLIP, RECEIVER PIPE (B) - $2.09
11
  • CAP H, VALVE - $3.24
  • KIT, VALVE CAP (H) - $3.24
22
  • BOLT-WASHER (6X14) - $0.67
14
  • O-RING (1/2") - $2.39
14
  • O-RING (1/2") - $2.39
19
  • NUT, FLANGE (6MM) - $0.17
19
  • NUT, FLANGE (6MM) - $0.17
No. Part # Part # / Description Qty Req. List Price Price
1 80050-SR3-H00 80050-SR3-H00 / LABEL, AIR CONDITIONER CAUTION

1 $1.83 $1.32
2 80311-SDA-A01 80311-SDA-A01 / HOSE, SUCTION

1 $53.93 $38.83
3 80315-SDA-A01 80315-SDA-A01 / HOSE, DISCHARGE

1 $68.70 $49.46
4 80320-SDA-A02 80320-SDA-A02 / PIPE ASSY., AIR CONDITIONER

1 $85.73 $61.73
5 80325-SDA-A00 80325-SDA-A00 / SEAL, FLANGE

1 $110.58 $79.62
6 80360-SDA-A00 80360-SDA-A00 / STAY ASSY., SUCTION HOSE

1 $11.22 $8.08
7 80362-SDC-000 80362-SDC-000 / CLAMP A, AIR CONDITIONER PIPE

1 $7.62 $5.48
8 80363-SDA-A00 80363-SDA-A00 / CLAMP B, AIR CONDITIONER PIPE

1 $10.75 $7.74
9 80384-SM4-A01 80384-SM4-A01 / CLIP, RECEIVER PIPE (B)

1 $2.90 $2.09
10 80465-SDA-A00 80465-SDA-A00 / RUBBER, SUCTION PIPE

1 $4.13 $2.98
11 06808-SDA-305 06808-SDA-305 / CAP H, VALVE

1 $4.50 $3.24
11 06808-SDA-305 06808-SDA-305 / KIT, VALVE CAP (H)

1 $4.50 $3.24
12 06808-SDA-306 06808-SDA-306 / KIT, VALVE CAP (L)

1 $4.50 $3.24
13 80871-SN7-003 80871-SN7-003 / O-RING (5/8")

3 $3.32 $2.39
13 80871-SN7-003 80871-SN7-003 / O-RING (5/8")

3 $3.32 $2.39
14 80872-ST7-000 80872-ST7-000 / O-RING (1/2")

2 $3.32 $2.39
15 80873-ST7-000 80873-ST7-000 / O-RING (8MM)

2 $3.60 $2.59
16 90001-SDA-A00 90001-SDA-A00 / BOLT, FLANGE (6X38) (GUIDE)

1 $0.35 $0.25
17 91548-SR3-003 91548-SR3-003 / CLIP (8MM)

1 $2.90 $2.09
18 93403-06016-08 93403-06016-08 / BOLT-WASHER (6X16)

2 $1.02 $0.73
19 94050-06080 94050-06080 / NUT, FLANGE (6MM)

2 $0.23 $0.17
20 95701-06025-05 95701-06025-05 / BOLT, FLANGE (6X25)

1 $0.98 $0.71
21 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

1 $0.98 $0.71
22 93403-06014-08 93403-06014-08 / BOLT-WASHER (6X14)

3 $0.93 $0.67
